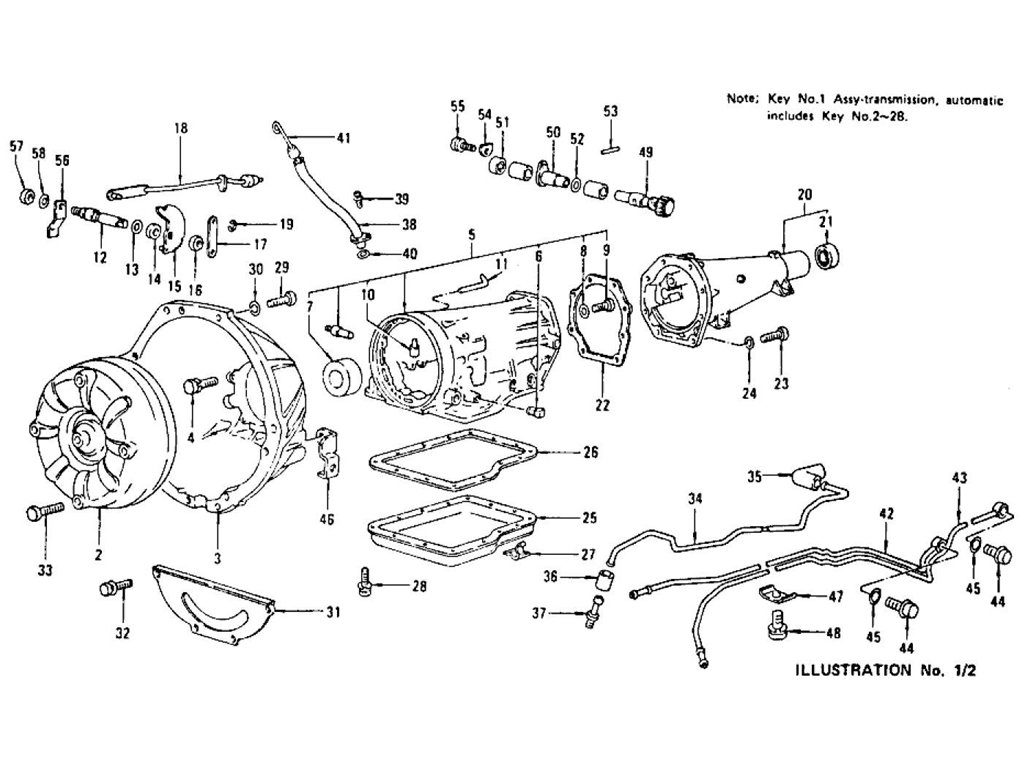

Transmission Case & Fitting (Automatic-3N71B) (From Apr.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TRANSMISSION AU | 31020-X0700 | AUTOMATIC | 7412 | 1 | ||||
| 1 | ASSY-TRANSMISSION AU | 31020-X2706 | AUTOMATIC | 1 | Yes | Yes | 31020-X2700 | ||
| 1 | ASSY-TRANSMISSION AU | 31020-X2710 | AUTOMATIC | 7412 | 7507 | 1 | Yes | Yes | 31020-X0700 |
| 1 | ASSY-TRANSMISSION AU | 31020-X2700 | AUTOMATIC | 7508 | 1 | Yes | Yes | 31020-X2710 | |
| 2 | ASSY-CONVERTER TORQU | 31100-X0500 | AUTOMATIC | 1 | |||||
| 3 | HOUSING-CONVERTER | 31301-X0200 | AUTOMATIC | 7412 | 1 | ||||
| 3 | HOUSING-CONVERTER | 31301-X0202 | AUTOMATIC | 7501 | 1 | 31301-X0200 | |||
| 4 | BOLT | 01125-00041 | AUTOMATIC | 6 | |||||
| 5 | ASSY-CASE TRANSMISSI | 31310-X0100 | AUTOMATIC | 1 | |||||
| 5 | ASSY-CASE TRANSMISSI | 31310-X0151 | AUTOMATIC | 1 | Yes | Yes | 31310-X0100 | ||
| 6 | PLUG-SQUARE HEAD | 00931-10210 | AUTOMATIC | 7210 | 3 | ||||
| 6 | PLUG-SQUARE HEAD | 31319-X0100 | AUTOMATIC | 7211 | 3 | 00931-10210 | |||
| 7 | RACE-INNER ONEWAY CL | 31472-X0100 | AUTOMATIC | 1 | |||||
| 8 | WASHER-PLAIN | 31484-X0100 | AUTOMATIC | 8 | |||||
| 9 | BOLT | 31488-F0600 | AUTOMATIC | 8 | |||||
| 10 | PIN-ANCHOR END | 31625-X0100 | AUTOMATIC | 1 | |||||
| 11 | BREATHER-AIR | 31381-X0100 | AUTOMATIC | 1 | |||||
| 12 | ASSY-SHAFT MANUAL | 31921-X0100 | AUTOMATIC | 1 | Yes | Yes | 31921-X0150 | ||
| 12 | ASSY-SHAFT MANUAL | 31921-X0101 | AUTOMATIC | 1 | Yes | Yes | 31921-X0100 | ||
| 12 | ASSY-SHAFT MANUAL | 31921-X0150 | AUTOMATIC | 1 | |||||
| 13 | SEAL-O RING (14S) | 31914-X0100 | AUTOMATIC | 1 | |||||
| 14 | WASHER-MANUAL SHAFT | 31922-X0100 | AUTOMATIC | 1 | |||||
| 14 | WASHER-MANUAL SHAFT | 31922-X0101 | AUTOMATIC | 7705 | 1 | Yes | Yes | 31922-X0100 | |
| 15 | ASSY-PLATE MANUAL | 31924-X0101 | AUTOMATIC | 1 | |||||
| 16 | NUT | 01211-00011 | AUTOMATIC | 1 | Yes | Yes | 08911-34410 | ||
| 16 | NUT | 08911-34410 | AUTOMATIC | 1 | |||||
| 17 | LEVER-PARKING | 31961-20300 | AUTOMATIC | 1 | |||||
| 18 | ASSY-ROD PARKING | 31970-X0100 | AUTOMATIC | 1 | |||||
| 18 | ASSY-ROD PARKING | 31970-X0101 | AUTOMATIC | 1 | Yes | Yes | 31970-X0100 | ||
| 19 | RING-SNAP (6S) | 31963-X0100 | AUTOMATIC | 2 | |||||
| 20 | ASSY-EXTENSION REAR | 31330-X0300 | AUTOMATIC | 1 | |||||
| 20 | ASSY-EXTENSION REAR | 31330-X0301 | AUTOMATIC | 1 | Yes | Yes | 31330-X0300 | ||
| 21 | SEAL-OIL | 31336-X0100 | AUTOMATIC | 1 | |||||
| 21 | SEAL-OIL | 31336-X0101 | AUTOMATIC | 1 | Yes | Yes | 31336-X0100 | ||
| 22 | GASKET-REAR EXTENSIO | 31335-X0100 | AUTOMATIC | 1 | |||||
| 23 | BOLT | 08130-83010 | AUTOMATIC | 8 | |||||
| 24 | WASHER-PLAIN | 08915-43810 | AUTOMATIC | 8 | |||||
| 25 | ASSY-PAN OIL | 31390-X0100 | AUTOMATIC | 1 | |||||
| 25 | ASSY-PAN OIL | 31390-X0101 | AUTOMATIC | 1 | Yes | Yes | 31390-X0100 | ||
| 26 | GASKET-OIL PAN | 31397-X0100 | AUTOMATIC | 7302 | 1 | ||||
| 26 | GASKET-OIL PAN | 31397-X0101 | AUTOMATIC | 7303 | 1 | Yes | Yes | 31397-X0100 | |
| 27 | CLAMP-VACUUM TUBE | 31065-A4000 | AUTOMATIC | 1 | |||||
| 28 | BOLT | 08160-61210 | AUTOMATIC | 14 | |||||
| 29 | BOLT | 08131-04010 | AUTOMATIC | 4 | |||||
| 30 | WASHER-LOCK | 08915-24010 | AUTOMATIC | 4 | |||||
| 31 | COVER-DUST CLUTCH HO | 30422-21000 | AUTOMATIC | 7210 | 1 | ||||
| 31 | COVER-DUST CLUTCH HO | 30422-B6500 | AUTOMATIC | 7211 | 7412 | 1 | |||
| 31 | COVER-DUST CLUTCH HO | 30422-Y0100 | AUTOMATIC | 7501 | 7606 | 1 | Yes | Yes | 30422-B6500 |
| 31 | COVER-DUST CLUTCH HO | 30422-N4400 | AUTOMATIC | 7607 | 1 | Yes | Yes | 30422-Y0100 | |
| 32 | SCREW-WITH WASHER | 08360-61214 | AUTOMATIC | 4 | |||||
| 33 | BOLT-SELF LOCK CONVE | 31009-77500 | AUTOMATIC | 4 | |||||
| 34 | ASSY-TUBE VACUUM | 31070-N3012 | AUTOMATIC | 7212 | 7408 | 1 | Yes | Yes | 31070-N3011 |
| 34 | ASSY-TUBE VACUUM | 31070-N4300 | AUTOMATIC | 7409 | 7411 | 1 | No | No | 31070-N3012 |
| 34 | ASSY-TUBE VACUUM | 31070-N4202 | AUTOMATIC | 7412 | 7607 | 1 | No | No | 31070-N4300 |
| 34 | ASSY-TUBE VACUUM | 31070-N4611 | AUTOMATIC | 7608 | 1 | Yes | Yes | 31070-N4202 | |
| 34 | TUBE-VACUUM | 31061-E7900 | AUTOMATIC | 7307 | 1 | ||||
| 34 | TUBE-VACUUM | 31070-N3011 | AUTOMATIC | 7207 | 7211 | 1 | No | No | 31061-E7900 |
| 35 | TUBE-ELBOW | 31064-20300 | AUTOMATIC | 1 | |||||
| 35 | TUBE-ELBOW | 31064-U7000 | AUTOMATIC | 7406 | 1 | Yes | Yes | 31064-20300 | |
| 36 | TUBE-JOINT | 31067-E0100 | AUTOMATIC | 1 | |||||
| 36 | TUBE-JOINT | 31067-U7000 | AUTOMATIC | 7406 | 1 | Yes | Yes | 31067-E0100 | |
| 37 | CONNECTOR-VACUUM | 31063-E7900 | AUTOMATIC | 1 | |||||
| 38 | ASSY-PIPE OIL CHARGI | 31080-P2600 | AUTOMATIC | 7307 | 1 | ||||
| 38 | ASSY-PIPE OIL CHARGI | 31080-N4200 | AUTOMATIC | 7412 | 1 | Yes | Yes | 31080-A9210 | |
| 38 | ASSY-PIPE OIL CHARGI | 31080-N4200 | AUTOMATIC 2 SEATE R | 1 | Yes | Yes | 31080-A9210 | ||
| 38 | ASSY-PIPE OIL CHARGI | 31080-A9210 | AUTOMATIC 2 SEATE R | 7308 | 1 | No | No | 31080-P2600 | |
| 39 | SCREW-WITH WASHER | 08360-61214 | AUTOMATIC | 1 | |||||
| 40 | SEAL-O RING (20S) | 31084-20300 | AUTOMATIC | 1 | |||||
| 41 | ASSY-GAUGE OIL LEVEL | 31086-P2601 | AUTOMATIC | 1 | |||||
| 42 | ASSY-TUBE OIL COOLER | 21621-E7910 | AUTOMATIC | 1 | |||||
| 42 | ASSY-TUBE OIL COOLER | 21621-N3401 | AUTOMATIC | 7409 | 7507 | 1 | |||
| 42 | ASSY-TUBE OIL COOLER | 21621-Y4000 | AUTOMATIC | 7508 | 1 | No | No | 21621-N3401 | |
| 43 | ASSY-TUBE OIL COOLER | 21623-E7910 | AUTOMATIC | 1 | |||||
| 43 | ASSY-TUBE OIL COOLER | 21623-N3401 | AUTOMATIC | 7409 | 7507 | 1 | |||
| 43 | ASSY-TUBE OIL COOLER | 21623-Y4001 | AUTOMATIC | 7508 | 1 | No | No | 21623-N3401 | |
| 44 | BOLT-CONNECTOR OIL C | 21625-P2600 | AUTOMATIC | 2 | |||||
| 45 | WASHER-SEAL | 21626-P2600 | AUTOMATIC | 7206 | 4 | ||||
| 46 | BRACKET-TUBE CLAMP | 21644-N3400 | AUTOMATIC | 7409 | 7507 | 1 | |||
| 46 | BRACKET-TUBE CLAMP | 21644-Y4000 | AUTOMATIC | 7508 | 1 | No | No | 21644-N3400 | |
| 47 | CLAMP-TUBE OIL COOLE | 21642-A9210 | AUTOMATIC | 7409 | 1 | ||||
| 48 | SCREW | 08363-62014 | AUTOMATIC | 7409 | 1 | ||||
| 49 | ASSY-PINION SPEEDMET | 32703-P2619 | AUTOMATIC | 7307 | 1 | ||||
| 49 | ASSY-PINION SPEEDMET | 32703-P2617 | AUTOMATIC 2+2 SEA TER | 7308 | 1 | No | No | 32703-P2619 | |
| 49 | ASSY-PINION SPEEDMET | 32703-P2617 | AUTOMATIC 2+2 SEA TER | 7310 | 1 | ||||
| 50 | ASSY-SLEEVE SPEEDOME | 32707-78000 | AUTOMATIC | 1 | |||||
| 51 | SEAL-OIL | 32709-14600 | AUTOMATIC | 1 | |||||
| 52 | RING-O | 32710-14600 | AUTOMATIC | 1 | |||||
| 53 | PIN-RETAINING | 32873-14600 | AUTOMATIC | 1 | |||||
| 54 | PLATE-LOCK | 32718-14600 | AUTOMATIC | 1 | |||||
| 55 | SCREW-WITH WASHER | 08360-61214 | AUTOMATIC | 1 | |||||
| 56 | LEVER-RANGE SELECT | 31913-E4701 | AUTOMATIC | 1 | |||||
| 57 | NUT | 01211-00011 | AUTOMATIC | 1 | Yes | Yes | 08911-34410 | ||
| 57 | NUT | 08911-34410 | AUTOMATIC | 1 | |||||
| 58 | WASHER-LOCK | 08916-34410 | AUTOMATIC | 1 | |||||

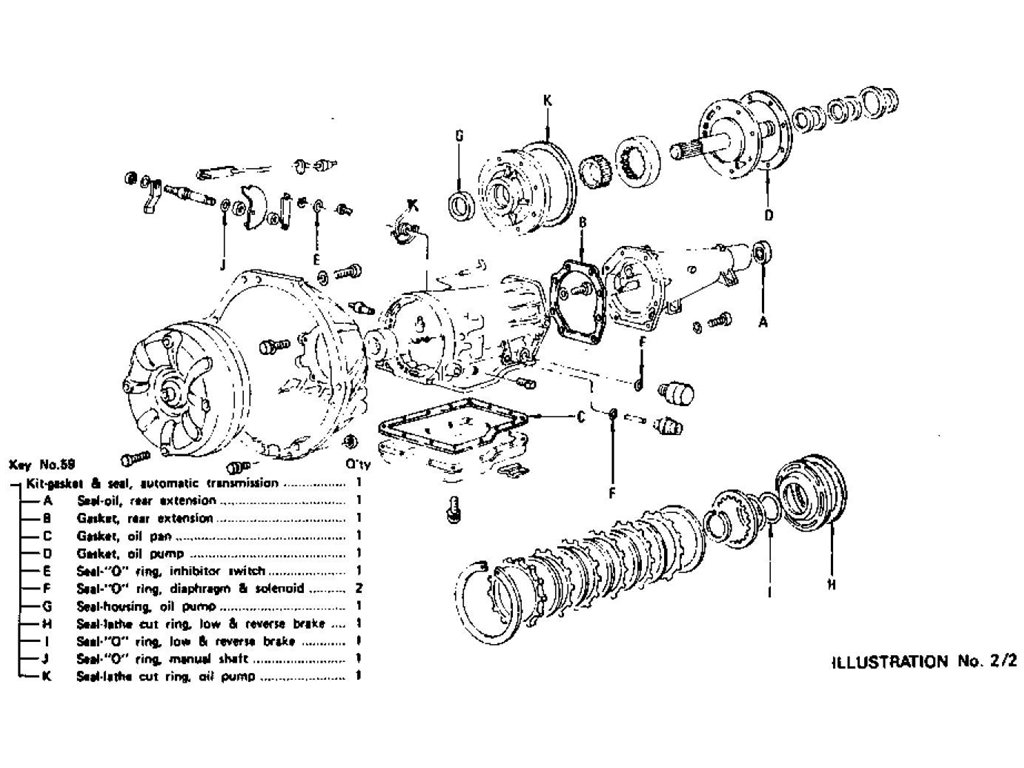

| 59 | KIT-REPAIR GASKET & | 31397-X0126 | AUTOMATIC | 1 | Yes | Yes | 31397-X0125 | ||
| 59 | KIT-REPAIR GASKET & | 31397-X0125 | AUTOMATIC | 7305 | 1 |
