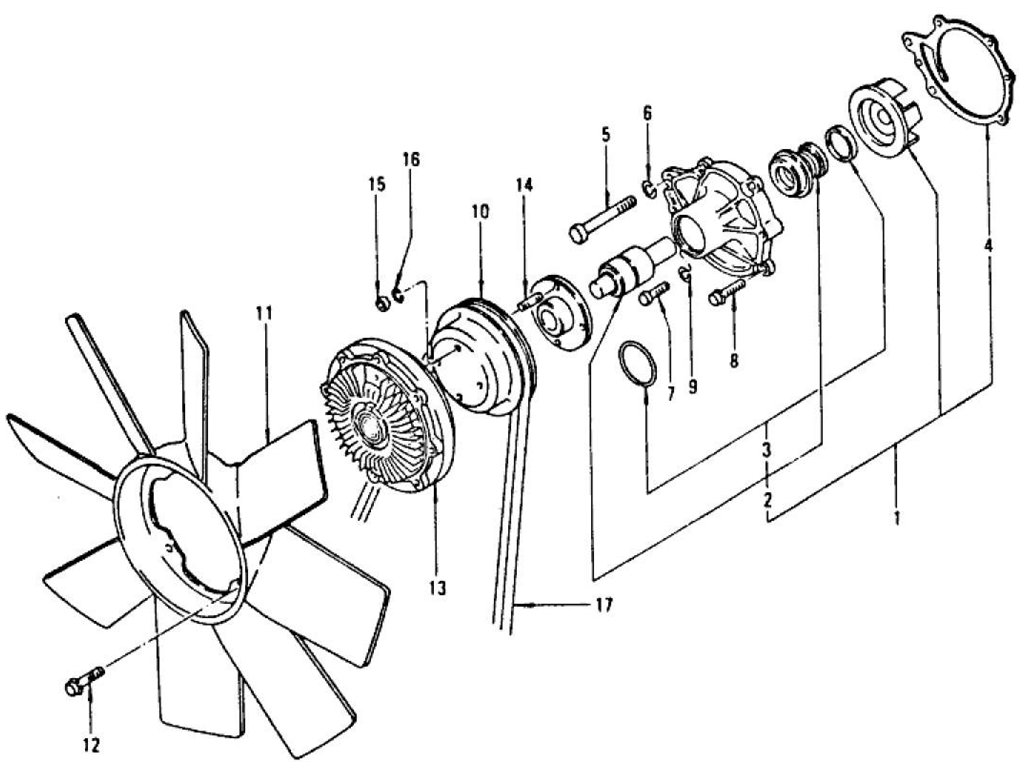

Water Pump & Fan Belt L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SET PUMP WATER | 21010-E3027 | 7611 | 1 | |||||
| 1 | SET PUMP WATER | 21010-P7525 | 1 | Yes | Yes | 21010-Y7025 | |||
| 1 | SET PUMP WATER | 21010-Y7025 | 1 | Yes | Yes | 21010-E3028 | |||
| 1 | SET PUMP WATER | 21010-E3028 | 7612 | 1 | 21010-E3027 | ||||
| 2 | SET BEARING & SEAL | 21046-E3000 | 1 | ||||||
| 2 | SET BEARING & SEAL | 21046-Y7000 | 1 | Yes | Yes | 21046-E3000 | |||
| 3 | SET SEAL & WIRE | 21047-A0100 | 1 | ||||||
| 3 | SET SEAL & WIRE | 21047-Y7000 | 1 | Yes | Yes | 21047-A0100 | |||
| 4 | GASKET WAER PUMP | 21014-21000 | 1 | ||||||
| 5 | BOLT HEX M8 | 08110-88510 | 2 | ||||||
| 7 | BOLT HEX M6 | 21079-21002 | 1 | ||||||
| 8 | BOLT HEX M6 | 08120-62262 | 2 | ||||||
| 9 | WASHER SPRING M6 | 08915-13610 | 1 | ||||||
| 10 | PULLEY FAN AND WATER | 21051-E3201 | 1 | ||||||
| 10 | PULLEY FAN AND WATER | 21051-E3202 | 1 | Yes | Yes | 21051-E3201 | |||
| 11 | FAN COOLING 410X8PP | 21060-N3600 | 1 | ||||||
| 12 | BOLT HEX M6 | 08130-62062 | 4 | ||||||
| 13 | ASSY COUPLING FAN | 21082-N3600 | 7501 | 1 | |||||
| 13 | ASSY COUPLING FAN | 21082-Y4100 | 7502 | 1 | Yes | Yes | 21082-N3600 | ||
| 14 | STUD M6 | 08226-61410 | 4 | ||||||
| 15 | NUT HEX M6X1.0 | 08911-10610 | 4 | ||||||
| 16 | WASHER SPRING M6 | 08915-13610 | 4 | ||||||
| 17 | partNumber | BELT FAN L885 | |||||||
| 17 | partNumber | 11720-Y4005 | 1 |
