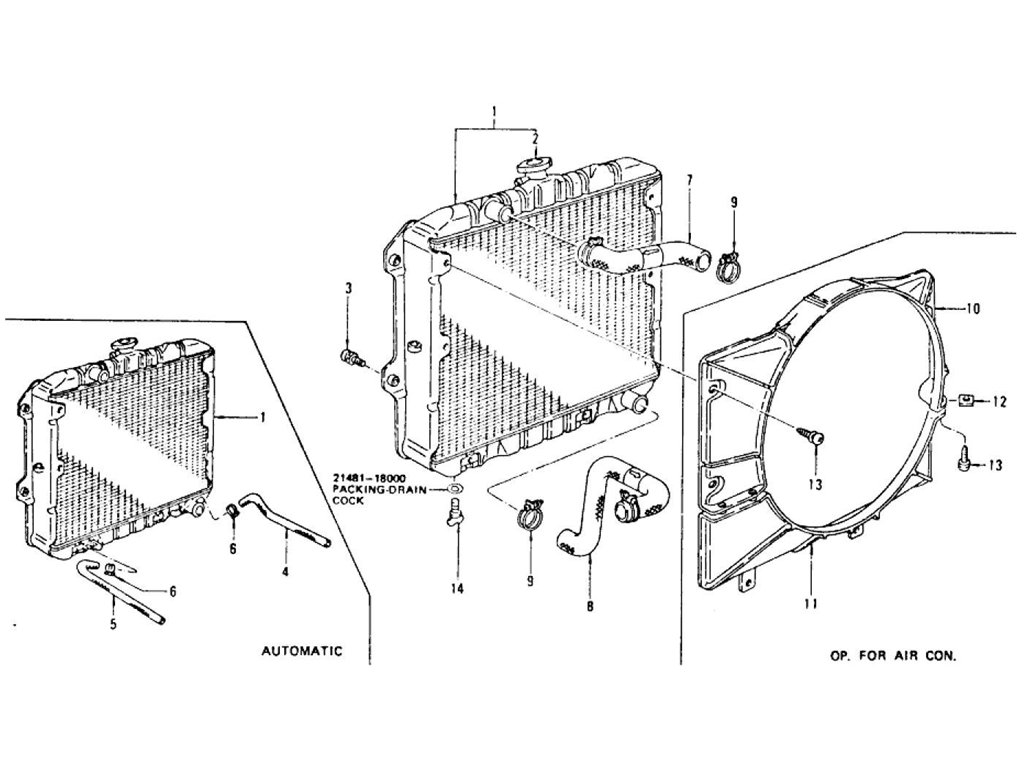

Radiator L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY RADIATOR | 21500-N4200 | AUTOMATIC | 7507 | 1 | ||||
| 1 | ASSY RADIATOR | 21500-N4201 | AUTOMATIC | 7508 | 7607 | 1 | No | No | 21500-N4200 |
| 1 | ASSY RADIATOR | 21500-N7601 | AUTOMATIC | 7707 | 1 | Yes | Yes | 21500-N4201 | |
| 1 | ASSY RADIATOR | 21400-N4200 | MANUAL | 7507 | 1 | ||||
| 1 | ASSY RADIATOR | 21400-N4201 | MANUAL | 7508 | 1 | 21400-N4200 | |||
| 1 | ASSY RADIATOR | 21400-N7601 | MANUAL | 7707 | 1 | Yes | Yes | 21400-N4201 | |
| 1 | ASSY RADIATOR | 21500-N4700 | OP AUTOMATIC | 7608 | 1 | ||||
| 1 | ASSY RADIATOR | 21500-N7602 | OP AUTOMATIC | 7707 | 1 | Yes | Yes | 21500-N4700 | |
| 2 | ASSY CAP RADIATOR | 21430-U0100 | 7607 | 1 | |||||
| 2 | ASSY CAP RADIATOR | 21430-C0500 | 7608 | 1 | Yes | Yes | 21430-U0100 | ||
| 3 | SCREW MACHINE | 08363-82026 | 4 | ||||||
| 4 | HOSE FLEXIBLE T/C RH | 21631-N4200 | AUTOMATIC | 1 | |||||
| 5 | HOSE FLEXIBLE T/C LH | 21632-K0100 | AUTOMATIC | 1 | |||||
| 6 | CLAMP HOSE | 21635-U0100 | AUTOMATIC | 4 | |||||
| 7 | HOSE CYLINDER HEAD T | 21501-N3000 | 1 | ||||||
| 8 | HOSE RADIATOR TO WAT | 21503-N4200 | 1 | ||||||
| 9 | CLAMP HOSE | 08723-14400 | 4 | ||||||
| 10 | SHROUD UPPER | 21476-N4200 | OP FOR AIR CON | 1 | |||||
| 11 | SHROUD LOWER | 21477-N4200 | OP FOR AIR CON | 1 | |||||
| 12 | NUT SPRING | 21477-U3900 | OP FOR AIR CON | 3 | |||||
| 13 | SCREW TAPPING | 08513-62097 | OP FOR AIR CON | 9 | |||||
| 14 | HANDLE DRAIN COCK | 21480-R0100 | 1 | Yes | Yes | 21480-18000 | |||
| 14 | HANDLE DRAIN COCK | 21480-18000 | MANUAL | 1 |
