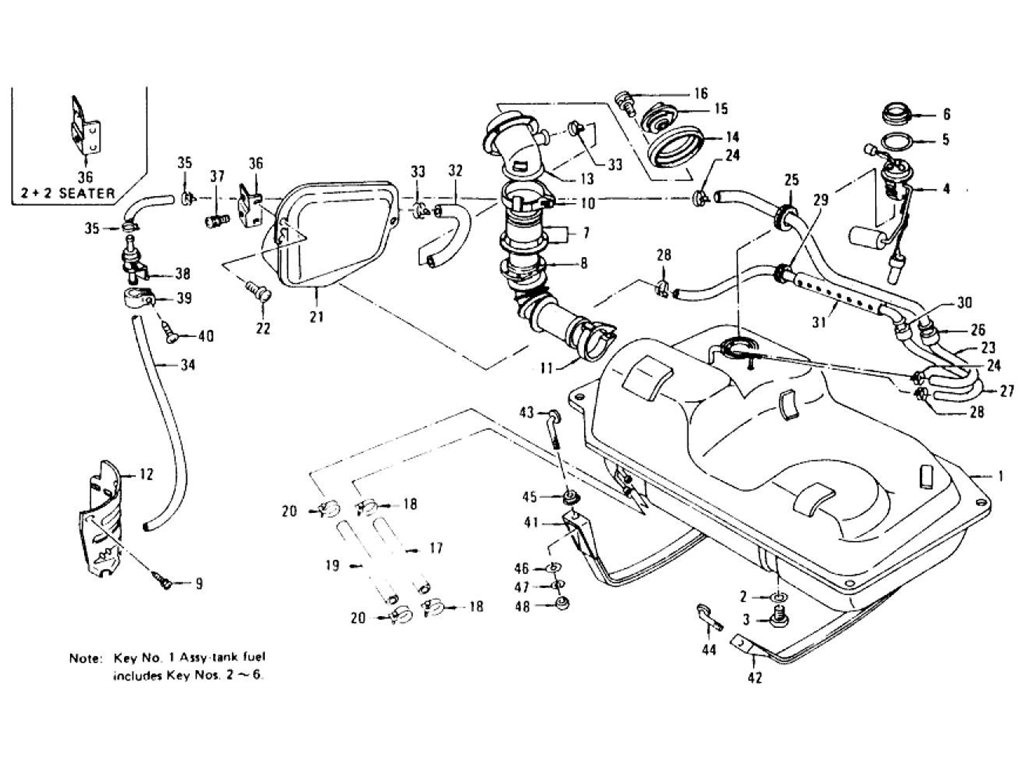

Fuel Tank L28E (From Jul.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TANK | 17201-N4700 | 1 | ||||||
| 2 | PACKING-DRAIN | 17232-S0160 | 1 | ||||||
| 3 | PLUG-DRAIN | 01125-00062 | 1 | ||||||
| 4 | UNIT-GAUGE FUEL TANK | 25060-N4700 | 1 | ||||||
| 5 | RING "O" | 17342-18000 | 1 | ||||||
| 6 | PLATE-LOCK GAUGE | 17343-N4700 | 1 | ||||||
| 7 | ASSY-HOSE | 17208-N4700 | 1 | ||||||
| 8 | GROMMET-FILLER HOSE | 17312-N4700 | 7608 | 1 | |||||
| 9 | NUT-MACHINE | 01221-00033 | 4 | ||||||
| 10 | CLAMP-HOSE | 17225-N4701 | 1 | ||||||
| 11 | CLAMP-HOSE | 08723-17200 | 1 | ||||||
| 12 | PROTECTOR-FILLER HOS | 17283-N4700 | 1 | ||||||
| 13 | ASSY-TUBE FILLER UPP | 17220-N4800 | CAL 2 SEATER | 1 | |||||
| 13 | ASSY-TUBE FILLER UPP | 17220-N4820 | CAL 2+2 SEATER | 1 | |||||
| 13 | ASSY-TUBE FILLER UPP | 17220-N4700 | FED 2 SEATER | 1 | |||||
| 13 | ASSY-TUBE FILLER UPP | 17220-N4720 | FED 2+2 SEATER | 1 | |||||
| 14 | PACKING-FILLER NECK | 17221-N4700 | 1 | ||||||
| 15 | ASSY-CAP FILLER | 17251-U7400 | 7612 | 1 | |||||
| 15 | ASSY-CAP FILLER | 17251-U7401 | 7701 | 1 | Yes | Yes | 17251-U7400 | ||
| 16 | SCREW-MACHINE | 08363-61626 | 4 | ||||||
| 17 | HOSE-FUEL TANKTO PIP | 08742-20040 | 1 | ||||||
| 18 | CLAMP-HOSE | 08723-12000 | 2 | ||||||
| 19 | ASSY-HOSE FUEL RETUR | 17548-N4700 | 1 | ||||||
| 20 | CLAMP-HOSE | 16439-N4205 | 2 | ||||||
| 21 | ASSY-TANK RESERVOIR | 17350-N4500 | 1 | ||||||
| 22 | SCREW-MACHINE | 01431-00093 | 3 | ||||||
| 23 | HOSE-BREATHER F/T TO | 17236-N4700 | 1 | ||||||
| 24 | CLAMP-HOSE | 08723-12600 | 2 | ||||||
| 25 | GROMMET-PANEL | 17386-N4600 | 1 | ||||||
| 26 | GROMMET-FLOOR | 17241-E4100 | 1 | ||||||
| 27 | HOSE-BREATHER F/T TO | 17237-N4700 | 1 | ||||||
| 28 | CLAMP-HOSE | 08723-11400 | 2 | ||||||
| 29 | GROMMET-PANEL | 17385-N4600 | 1 | ||||||
| 30 | GROMMET-FLOOR | 17241-N4500 | 1 | ||||||
| 31 | COVER-BREATHER HOSE | 17245-N4700 | 7608 | 1 | |||||
| 32 | HOSE-BREATHER NECK T | 17235-N4501 | 1 | ||||||
| 33 | CLAMP-HOSE | 08723-12600 | 2 | ||||||
| 34 | HOSE-EVAPO | 17233-N4202 | 1 | ||||||
| 35 | CLAMP-HOSE | 08723-11400 | 2 | ||||||
| 36 | ASSY-BRACKET R/T MTG | 78124-N4201 | 2 SEATER | 1 | |||||
| 36 | ASSY-BRACKET R/T MTG | 78124-N4221 | 2+2 SEATER | 1 | |||||
| 37 | SCREW-MACHINE | 08313-61626 | 2 | ||||||
| 38 | ASSY-UNIT | 17331-N4200 | 1 | ||||||
| 39 | CLIP-HOSE | 17333-N4200 | 1 | ||||||
| 40 | SCREW-MACHINE | 08360-61414 | 1 | ||||||
| 41 | ASSY-BAND FUEL TANK | 17410-N4700 | 1 | ||||||
| 42 | ASSY-BAND FUEL TANK | 17405-N4700 | 1 | ||||||
| 43 | BOLT-FUEL TANK MTG R | 17415-N4500 | 1 | ||||||
| 44 | BOLT-FUEL TANK MTG L | 17416-N4700 | 7611 | 1 | |||||
| 44 | BOLT-FUEL TANK MTG L | 17416-N4701 | 7612 | 1 | Yes | Yes | 17416-N4700 | ||
| 45 | NUT-FLANGE | 01221-00053 | 2 | ||||||
| 46 | WASHER-PLAIN | 08915-54010 | 2 | ||||||
| 47 | WASHER-SPRING | 08915-14010 | 2 | ||||||
| 48 | NUT | 08911-24010 | 2 |
