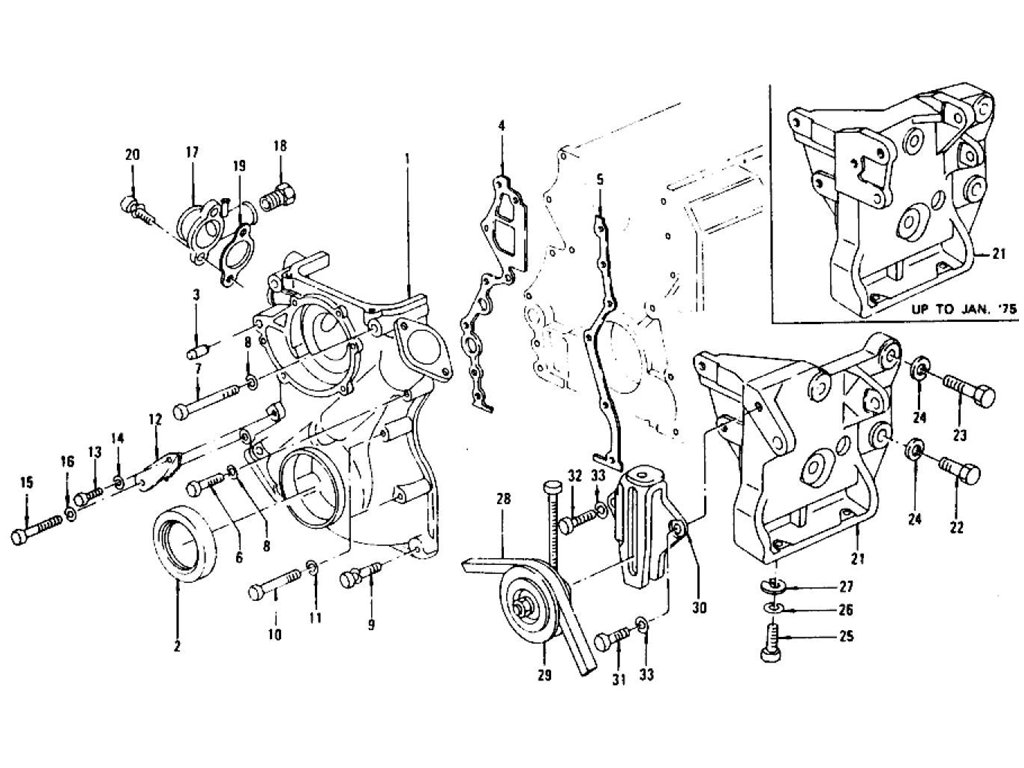

Front Cover & Compressor Mounting L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COVER-ENGINE FRONT | 13501-A8600 | 1 | ||||||
| 2 | SEAL-OIL CRANK SHAFT | 13042-A8600 | 1 | ||||||
| 3 | DOWEL-CYLINDER HEAD | 11046-73402 | 2 | ||||||
| 4 | GASKET-FRONT COVER R | 13520-P0100 | 1 | ||||||
| 5 | GASKET-FRONT COVER L | 13521-P0100 | 1 | ||||||
| 6 | BOLT-HEX MB L=45 | 08110-84510 | 1 | ||||||
| 7 | BOLT-HEX MB L=78 | 13540-21001 | 2 | ||||||
| 8 | WASHER-SPRING LOCK M | 08915-13810 | 3 | ||||||
| 9 | BOLT-HEX WITH WASHER | 08110-62062 | 2 | ||||||
| 10 | BOLT-HEX | 08110-64210 | 3 | ||||||
| 11 | WASHER-SPRING | 08915-13610 | 3 | ||||||
| 12 | INDICATOR-TIMING | 13502-N3600 | 1 | ||||||
| 13 | SCREW-HEX | 08360-60812 | 1 | ||||||
| 14 | WASHER-SPRING | 08915-13610 | 1 | ||||||
| 15 | BOLT-TEX | 08010-87510 | 1 | ||||||
| 16 | WASHER-SPRING | 08915-13810 | 1 | ||||||
| 17 | INLET-WATER | 13049-U0100 | 1 | ||||||
| 17 | INLET-WATER | 13049-Y4000 | 7605 | 1 | Yes | Yes | 13049-U0100 | ||
| 17 | INLET-WATER | 13048-Y4005 | 7606 | 1 | 13049-Y4000 | ||||
| 18 | CONNECTOR-INLET | 01691-00091 | 7606 | 1 | |||||
| 19 | GASKET-WATER INLET | 13050-21000 | 1 | ||||||
| 20 | BOLT-HEX | 08110-82862 | 2 | ||||||
| 21 | BRACKET-COMPRESSOR | 11910-N3601 | OP.FOR AIR CON | 7501 | 1 | ||||
| 21 | BRACKET-COMPRESSOR | 11910-N4200 | OP.FOR AIR CON | 7502 | 1 | No | No | 11910-N3601 | |
| 22 | BOLT-HEX M10X1.5 | 08131-03810 | OP.FOR AIR CON | 2 | |||||
| 23 | BOLT-HEX. M10X1.5 | 08131-05010 | OP.FOR AIR CON | 2 | |||||
| 24 | WASHER-SPRING M10 | 08915-14010 | OP.FOR AIR CON | 4 | |||||
| 25 | BOLT-HEX M10X1.5 | 08131-03010 | OP.FOR AIR CON | 4 | |||||
| 26 | WASHER-SPRING M10 | 08915-14010 | OP.FOR AIR CON | 4 | |||||
| 27 | SHIM-ALTERNATOR | 11713-U0500 | OP.FOR AIR CON | 0 | |||||
| 27 | SHIM-ALTERNATOR | 11713-U0501 | OP.FOR AIR CON | 0 | |||||
| 28 | BELT-COMPRESSOR L-91 | 11920-N3600 | OP.FOR AIR CON | 1 | |||||
| 29 | ASSY-PULLEY IDLER | 11925-U6000 | OP.FOR AIR CON | 1 | |||||
| 30 | BRACKET-PULLEY IDLER | 11926-U6000 | OP.FOR AIR CON | 7501 | 1 | ||||
| 30 | BRACKET-PULLEY IDLER | 11926-Y4000 | OP.FOR AIR CON | 7502 | 1 | No | No | 11926-U6000 | |
| 31 | BOLT-TEX M8X1.25 | 08130-81610 | OP.FOR AIR CON | 1 | |||||
| 32 | BOLT-HEX M6X1.0 | 08130-62010 | OP.FOR AIR CON | 2 | |||||
| 33 | WASHER-SPRING | 08915-13610 | OP.FOR AIR CON | 2 |
