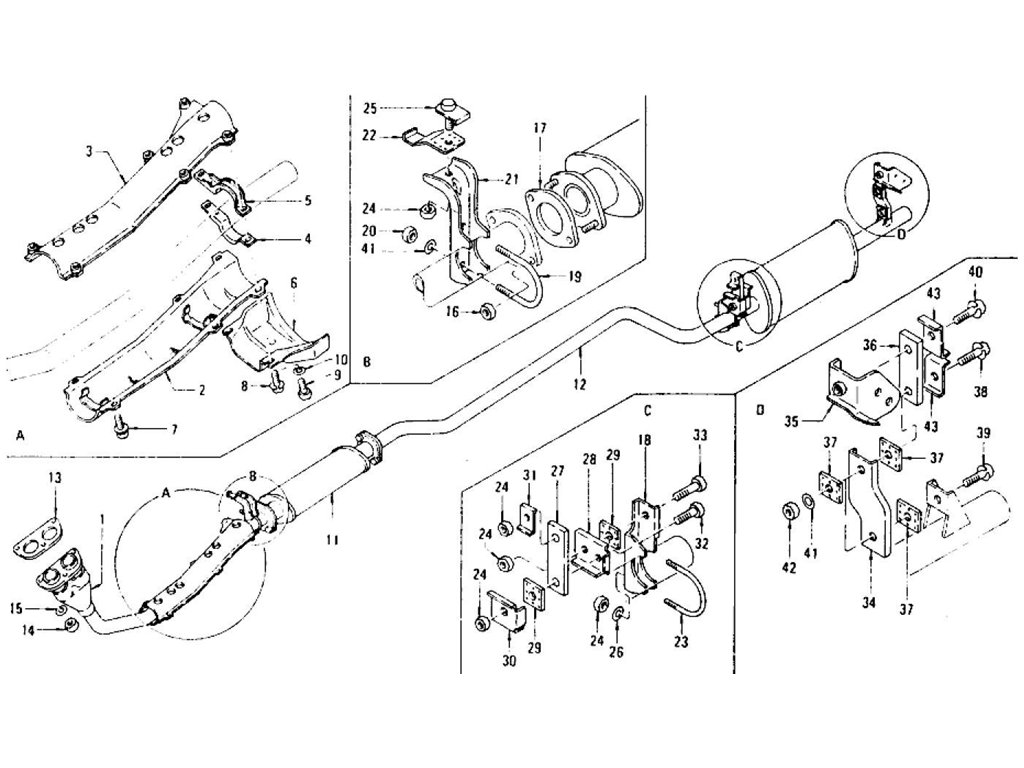

Exhaust Tube & Muffler (Fed) L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TUBE | 20010-N4231 | 1 | ||||||
| 1 | ASSY-TUBE | 20011-N4200 | 1 | Yes | Yes | 20010-N4231 | |||
| 2 | ASSY-SHIELD EXHAUST | 20510-N4200 | 1 | ||||||
| 3 | ASSY-SHIELD EXHAUST | 20515-N4200 | 1 | ||||||
| 4 | CLAMP-EXHAUST HEAT F | 20517-N4200 | 1 | ||||||
| 5 | CLAMP-EXHAUST HEAT F | 20518-N4200 | 1 | ||||||
| 6 | SHIELD-EXHAUST HEAT | 20511-N4200 | 1 | ||||||
| 7 | BOLT-HEX | 08110-62025 | 4 | ||||||
| 8 | BOLT-HEX | 20846-N4300 | 2 | ||||||
| 9 | BOLT-HEX | 08110-62062 | 7607 | 1 | |||||
| 9 | BOLT-HEX | 01431-00093 | 7608 | 1 | Yes | Yes | 08110-62062 | ||
| 10 | WASHER-PLAIN | 08915-53610 | 1 | ||||||
| 11 | MUFFLER-PRE | 20050-N4200 | 1 | ||||||
| 12 | ASSY-MUFFLER W/EXHAU | 20100-N4200 | 2 SEATER | 1 | |||||
| 12 | ASSY-MUFFLER W/EXHAU | 20101-N4200 | 2 SEATER | 7607 | 1 | Yes | Yes | 20100-N4200 | |
| 12 | ASSY-MUFFLER W/EXHAU | 20100-N4700 | 2 SEATER | 7608 | 1 | Yes | Yes | 20101-N4200 | |
| 12 | ASSY-MUFFLER W/EXHAU | 20100-N4220 | 2+2 SEATER | 1 | |||||
| 12 | ASSY-MUFFLER W/EXHAU | 20101-N4220 | 2+2 SEATER | 7607 | 1 | Yes | Yes | 20100-N4220 | |
| 12 | ASSY-MUFFLER W/EXHAU | 20100-N4710 | 2+2 SEATER | 7608 | 1 | Yes | Yes | 20101-N4220 | |
| 13 | GASKET-EXHAUST | 20711-N4200 | 1 | ||||||
| 14 | NUT-HEX | 20602-F1700 | 7608 | 3 | Yes | Yes | 20602-N4200 | ||
| 14 | NUT-HEX. | 20602-N4200 | 7607 | 3 | |||||
| 15 | WASHER-PLAIN | 08915-44010 | 3 | ||||||
| 16 | NUT-HEX. | 20847-H7300 | 4 | ||||||
| 17 | GASKET-EXHAUST TUBE | 20712-H7300 | 7607 | 2 | |||||
| 17 | GASKET-EXHAUST TUBE | 20692-M3060 | 7608 | 2 | Yes | Yes | 20712-H7300 | ||
| 18 | ASSY-BRACKET EXHAUST | 20658-N4200 | 1 | ||||||
| 19 | BOLT-U | 20630-N4300 | 7607 | 1 | |||||
| 19 | BOLT-U | 20630-J2000 | 7608 | 1 | Yes | Yes | 20630-N4300 | ||
| 20 | NUT-HEX. | 08912-70810 | 2 | ||||||
| 21 | BRACKET-EXHAUST MTG | 20651-N4200 | 1 | ||||||
| 22 | INSULATOR-EXHAUST MT | 20623-N4205 | 7607 | 1 | |||||
| 22 | INSULATOR-EXHAUST MT | 20623-N4221 | 7608 | 1 | Yes | Yes | 20623-N4205 | ||
| 23 | BOLT-U | 20630-N4300 | 7607 | 1 | |||||
| 23 | BOLT-U | 20630-J2000 | 7608 | 1 | Yes | Yes | 20630-N4300 | ||
| 24 | NUT-SELF LOCK HEX. | 08912-70810 | 6 | ||||||
| 25 | BOLT-HEX. SPECIAL | 20655-N4200 | 7607 | 1 | |||||
| 25 | BOLT-HEX. SPECIAL | 20655-N4201 | 7608 | 1 | Yes | Yes | 20655-N4200 | ||
| 26 | WASHER-PLAIN | 08915-53810 | 2 | ||||||
| 27 | STRAP-EXHAUST HANGER | 20636-N3400 | 7607 | 1 | |||||
| 27 | STRAP-EXHAUST HANGER | 20636-N4600 | 7608 | 1 | Yes | Yes | 20636-N3400 | ||
| 28 | BRACKET-EXHAUST MTG | 20659-N4200 | 7607 | 1 | |||||
| 28 | BRACKET-EXHAUST MTG | 20659-N4201 | 7608 | 1 | Yes | Yes | 20659-N4200 | ||
| 29 | SPACER-MTG B | 20625-N4200 | 3 | ||||||
| 30 | SHIELD-HEAT EXHAUST | 20618-N4200 | 1 | ||||||
| 31 | WASHER-PLAIN | 20641-N3400 | 1 | ||||||
| 32 | BOLT-HEX. M8 | 08110-83510 | 1 | ||||||
| 33 | BOLT-HEX. M8 | 08110-82010 | 1 | ||||||
| 34 | ASSY-BRACKET EXHAUST | 20635-N4202 | 1 | ||||||
| 35 | BRACKET-EXHAUST MTG | 20692-N4201 | 1 | ||||||
| 36 | STRAP-EXHAUST HANGER | 20636-N3400 | 7607 | 1 | |||||
| 36 | STRAP-EXHAUST HANGER | 20636-N4600 | 7608 | 1 | Yes | Yes | 20636-N3400 | ||
| 37 | SPECER-MOUNTING B | 20625-N4200 | 4 | ||||||
| 38 | BOLT-HEX. M8X1.I5 | 08110-83510 | 1 | ||||||
| 39 | BOLT-HEX. M8X1.25 | 08110-82510 | 1 | ||||||
| 40 | BOLT-HEX. M8X1.25 | 08110-83062 | 1 | ||||||
| 41 | WASHER-PLAIN | 08915-53810 | 2 | ||||||
| 42 | NUT-SELF LOCK HEX | 08912-70810 | 3 | ||||||
| 43 | WASHER-PLAIN | 20641-N3400 | 2 |
