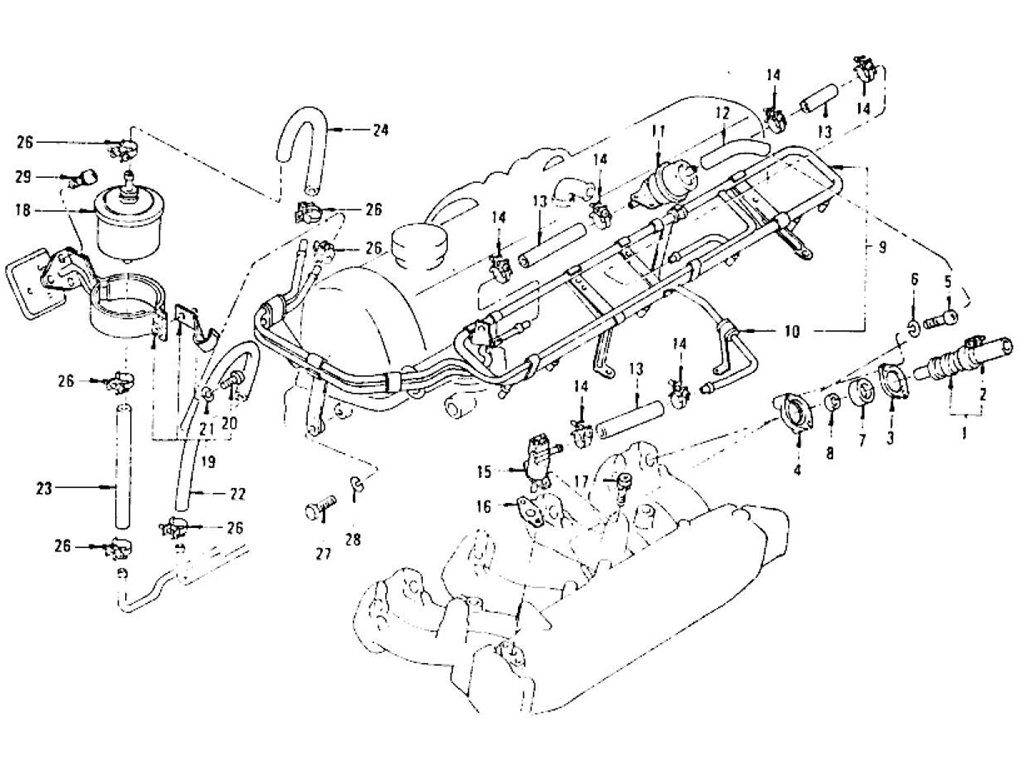

E.F.I.(1) -Fuel- L28E (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | INJECTOR ASSY WITH C | 16603-N4700 | 7708 | 7711 | 6 | ||||
| 1 | INJECTOR ASSY WITH C | 16603-N4710 | 7708 | 7711 | 6 | ||||
| 1 | INJECTOR ASSY WITH C | 16603-Y8005 | U.S.A. | 7712 | 6 | Yes | Yes | 16603-N4700 | |
| 1 | INJECTOR ASSY WITH C | 16603-Y8015 | U.S.A. | 7712 | 6 | Yes | Yes | 16603-N4710 | |
| 1 | INJECTOR ASSY WITH C | 16603-Y8065 | U.S.A. | 7712 | 6 | ||||
| 1 | INJECTOR ASSY WITH C | 16603-Y8006 | U.S.A. | 7805 | 6 | No | No | 16603-Y8005 | |
| 1 | INJECTOR ASSY WITH C | 16603-Y8016 | U.S.A. | 7805 | 6 | No | No | 16603-Y8015 | |
| 1 | INJECTOR ASSY WITH C | 16603-Y8066 | U.S.A. | 7805 | 6 | No | No | 16603-Y8065 | |
| 2 | CLAMP HOSE | 16439-N4710 | 7708 | 6 | |||||
| 3 | HOLDER INJECTOR UPPE | 16610-N1400 | 7708 | 6 | |||||
| 4 | HOLDER INJECTOR LOWE | 16611-N4201 | 7708 | 6 | |||||
| 5 | SCREW | 08310-53012 | 7708 | 12 | |||||
| 6 | WASHER SPRING | 08915-13510 | 7708 | 12 | |||||
| 7 | RUBBER INSULATOR INJ | 16635-N1400 | 7708 | 6 | |||||
| 8 | RUBBER INSULATOR INJ | 16636-N1400 | 7708 | 6 | |||||
| 9 | TUBE ASSY-FUEL | 17520-N4700 | 7708 | 1 | |||||
| 10 | SPACER-FUEL TUBE | 17108-N4700 | 7708 | 1 | |||||
| 10 | SPACER-FUEL TUBE | 17108-N4701 | 7708 | 1 | |||||
| 10 | SPACER-FUEL TUBE | 17108-U9800 | 7708 | 1 | |||||
| 11 | REGULATOR ASSY PRESS | 22670-N4700 | 7708 | 1 | |||||
| 12 | TUBE-VACUUM PRESSURE | B2320-Y4000 | 7708 | 1 | |||||
| 13 | HOSE FUEL | 16443-N4710 | 7708 | 3 | |||||
| 14 | CLAMP HOSE | 16439-N4710 | 7708 | 6 | |||||
| 15 | VALVE ASSY COLD STAR | 16601-Y8000 | 7708 | 1 | |||||
| 16 | GASKET COLD START VA | 16602-N1400 | 7708 | 1 | |||||
| 17 | SCREW WITH WASHER | 08360-61214 | 7708 | 2 | |||||
| 18 | FILTER ASSY FUEL | 16400-N4201 | 7708 | 1 | |||||
| 18 | FILTER ASSY FUEL | 16400-Q0800 | 7711 | 1 | Yes | Yes | 16400-N4201 | ||
| 19 | BRACKET ASSY FUEL | 16401-N4202 | 7708 | 1 | |||||
| 20 | SCREW | 08310-52012 | 7708 | 1 | |||||
| 21 | WASHER SPRING | 08915-13510 | 7708 | 1 | |||||
| 22 | HOSE ASSY FUEL | 16445-N4700 | 7708 | 1 | Yes | Yes | 16446-N4710 | ||
| 22 | HOSE ASSY FUEL | 16446-N4710 | 7708 | 1 | |||||
| 23 | HOSE FUEL | 17556-N4700 | 7708 | 1 | |||||
| 24 | partNumber | HOSE ASSY FUEL L=370 | |||||||
| 24 | partNumber | 16441-N4705 | 7708 | 1 | |||||
| 25 | partNumber | HOSE FUEL L=5000 | |||||||
| 25 | partNumber | A6440-N4210 | 7708 | 0 | |||||
| 25 | partNumber | A6440-N7615 | 7708 | 0 | Yes | Yes | A6440-N4210 | ||
| 26 | CLAMP HOSE | 16439-N4710 | 7708 | 6 | |||||
| 27 | BOLT-HEX | 08110-82010 | 7708 | 2 | |||||
| 28 | WASHER SPRING | 08915-13810 | 7708 | 2 | |||||
| 29 | SCREW WITH WASHER | 08310-61214 | 7708 | 3 |
