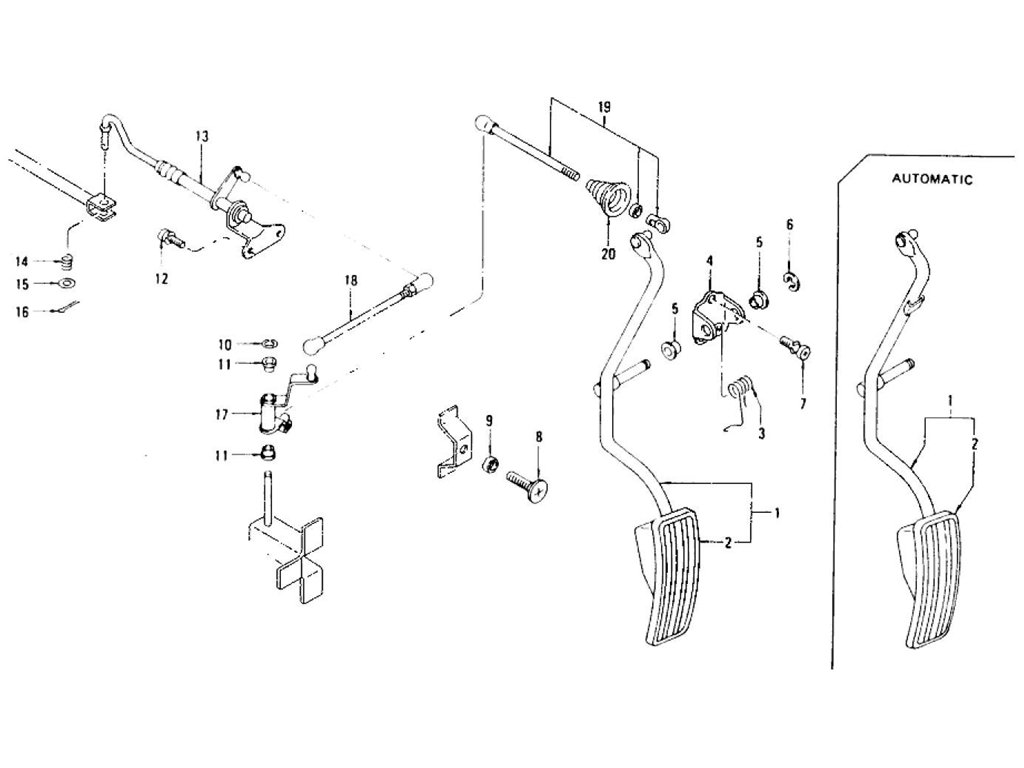

Accelerator L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY PEDAL ACCELATOR | 18010-N4200 | AUTOMATIC | 1 | |||||
| 1 | ASSY PEDAL ACCELATOR | 18010-N4205 | MANUAL | 1 | |||||
| 2 | PRO ACCELATOR PEDAL | 18014-N3000 | 1 | ||||||
| 3 | SPRING RETURN ACCELA | 18215-N4200 | 1 | ||||||
| 4 | BRACKET ACCELERATOR | 18021-N3300 | 1 | ||||||
| 5 | BUSH | 18124-N3300 | 2 | ||||||
| 6 | RING SNAP E TYPE | 00922-50810 | 1 | ||||||
| 7 | BOLT PAN HEAD | 08313-51614 | 3 | ||||||
| 8 | BOLT SPECIAL | 18017-E8701 | 1 | ||||||
| 9 | NUT HEX | 08911-10810 | 1 | ||||||
| 10 | RING SNAP E TYPE | 18137-10600 | 1 | ||||||
| 11 | BUSH NYLON | 18124-73000 | 2 | ||||||
| 12 | BOLT HEX | 08363-61214 | 2 | ||||||
| 13 | ASSY SHAFT TORSION A | 18300-N4200 | 1 | ||||||
| 14 | SPRING ACCELARATOR S | 18212-73400 | 1 | ||||||
| 15 | WASHER PLAIN | 08915-43810 | 1 | ||||||
| 16 | PIN COTTER | 00921-02010 | 1 | ||||||
| 17 | ASSY BELL CRANK ACCE | 18121-N3300 | 1 | ||||||
| 18 | ASSY JOINT B | 18130-N4200 | 1 | ||||||
| 19 | ASSY JOINT BALL A | 18200-N4200 | 1 | ||||||
| 20 | BOOT ACCELERATOR ROD | 18218-N4200 | 1 |
