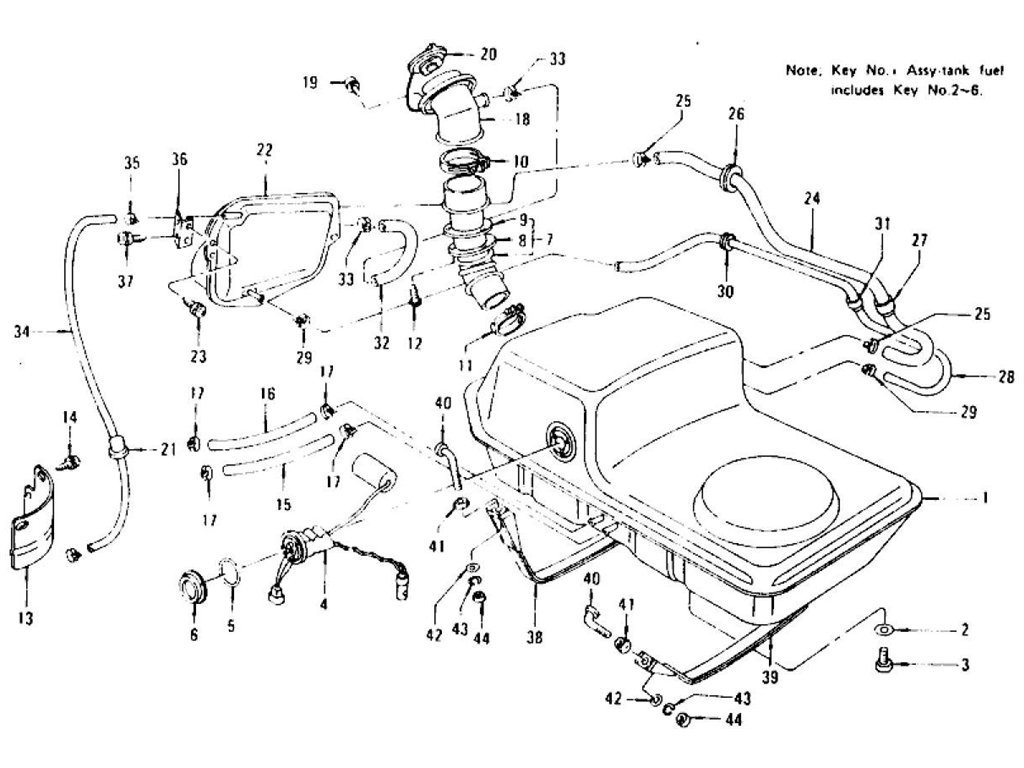

Fuel Tank L26 (From Sep.-'74 To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TANK FUEL | 17201-N4500 | L26 | 7409 | 7408 | 1 | |||
| 1 | ASSY-TANK FUEL | 17201-N4501 | L26 | 7508 | 1 | Yes | Yes | 17201-N4500 | |
| 2 | PACKING-DRAIN | 17312-P0102 | 1 | Yes | Yes | 17312-H1000 | |||
| 2 | PACKING-DRAIN | 17312-H1000 | 7409 | 1 | |||||
| 3 | PLUG-DRAIN | 17310-H1000 | 7409 | 1 | |||||
| 4 | UNIT-GAUGE FUEL TANK | 25060-N4500 | 7409 | 7408 | 1 | ||||
| 4 | UNIT-GAUGE FUEL TANK | 25060-N4501 | 7508 | 1 | Yes | Yes | 25060-N4500 | ||
| 5 | RING-"O" FUEL GAUGE | 17342-18000 | 7409 | 1 | |||||
| 6 | PLATE-LOCK GAUGE | 17343-14801 | 1 | Yes | Yes | 17343-14800 | |||
| 6 | PLATE-LOCK GAUGE | 17343-14800 | 7409 | 1 | |||||
| 7 | ASSY-HOSE FILLER | 17208-N4500 | 7409 | 1 | Yes | Yes | 17208-N4550 | ||
| 7 | ASSY-HOSE FILLER | 17208-N4550 | 7409 | 1 | |||||
| 8 | PLATE-FILLER HOSE GR | 17311-E8700 | 7409 | 1 | |||||
| 9 | GROMMET-FILLER HOSE | 17312-E8700 | 7409 | 1 | |||||
| 10 | CLAMP-HOSE | 01557-00013 | 7409 | 1 | |||||
| 11 | CLAMP-HOSE | 08723-17200 | 7409 | 1 | |||||
| 12 | SCREW-MACHINE | 01431-00043 | 7409 | 3 | |||||
| 13 | PROTECTOR-FILLER HOS | 17270-N3400 | 7409 | 1 | |||||
| 14 | SCREW-TAPPING | 08510-41223 | 7409 | 4 | |||||
| 15 | HOSE-FUEL RETURN | 08742-20030 | 7409 | 1 | |||||
| 16 | HOSE-FUEL F/T TO STR | 17547-N4310 | 7409 | 1 | |||||
| 17 | CLAMP-HOSE | 08723-11600 | 7409 | 4 | |||||
| 18 | ASSY-TUBE FILLER UPP | 17220-N4500 | 2 SEATER | 7409 | 1 | ||||
| 18 | ASSY-TUBE FILLER UPP | 17220-N4520 | 2+2 SEATER | 7409 | 1 | ||||
| 19 | SCREW-MACHINE | 08313-61626 | 7409 | 4 | |||||
| 20 | ASSY-CAP FILLER | 17251-N4500 | 7409 | 7706 | 1 | ||||
| 20 | ASSY-CAP FILLER | 17251-N4501 | 7707 | 1 | Yes | Yes | 17251-N4500 | ||
| 21 | GROMMET | 17384-N3700 | 7409 | 1 | |||||
| 22 | ASSY-TANK RESERVOIR | 17350-N4500 | 7409 | 1 | |||||
| 23 | SCREW-MACHINE | 08313-61626 | 7409 | 3 | |||||
| 24 | HOSE-BREATHER F/T TO | 17236-N4501 | 1 | Yes | Yes | 17236-N4500 | |||
| 24 | HOSE-BREATHER F/T TO | 17236-N4500 | 7409 | 1 | |||||
| 25 | CLAMP-HOSE | 08723-12400 | 7409 | 2 | |||||
| 26 | GROMMET-PANEL | 17386-N4220 | 7409 | 1 | Yes | Yes | 44808-6501P | ||
| 27 | GROMMET-FLOOR | 17241-E4100 | 7409 | 1 | |||||
| 28 | HOSE-BREATHER B | 08742-20020 | 7409 | 1 | |||||
| 29 | CLAMP-HOSE | 08723-11400 | 7409 | 2 | |||||
| 30 | 06111-1800P | 17385-N4220 | 7409 | 1 | Yes | Yes | 06111-1800P | ||
| 31 | GROMMET-FLOOR | 17241-N4500 | 7409 | 1 | |||||
| 32 | HOSE-BREATHER F/N TO | 17235-N4500 | 2409 | 7511 | 1 | ||||
| 32 | HOSE-BREATHER F/N TO | 17235-N4501 | 7512 | 1 | Yes | Yes | 17235-N4500 | ||
| 33 | CLAMP-HOSE | 08723-12400 | 7409 | 2 | |||||
| 34 | HOSE-EVAPO | 08742-20020 | 7409 | 1 | |||||
| 35 | CLAMP-HOSE | 08723-11400 | 7409 | 1 | |||||
| 36 | ASSY-BRACKET R/T MTG | 78124-N4500 | 7409 | 1 | |||||
| 36 | ASSY-BRACKET R/T MTG | 78124-N4520 | 7409 | 1 | |||||
| 37 | SCREW-MACHINE | 08313-61626 | 7409 | 2 | |||||
| 38 | ASSY-BAND FUEL TANK | 17410-N4500 | 7409 | 7607 | 1 | ||||
| 39 | ASSY-BAND FUEL TANK | 17405-N4500 | 7409 | 7607 | 1 | ||||
| 40 | BOLT-FUEL TANK MTG | 17415-N3400 | 7409 | 7607 | 2 | ||||
| 41 | NUT-FLANG | 01221-00053 | 7409 | 2 | |||||
| 42 | WASHER-PLAIN | 08915-54010 | 7409 | 2 | |||||
| 43 | WASHER-SPRING | 08915-14010 | 7409 | 2 | |||||
| 44 | NUT | 08911-24010 | 7409 | 2 |
