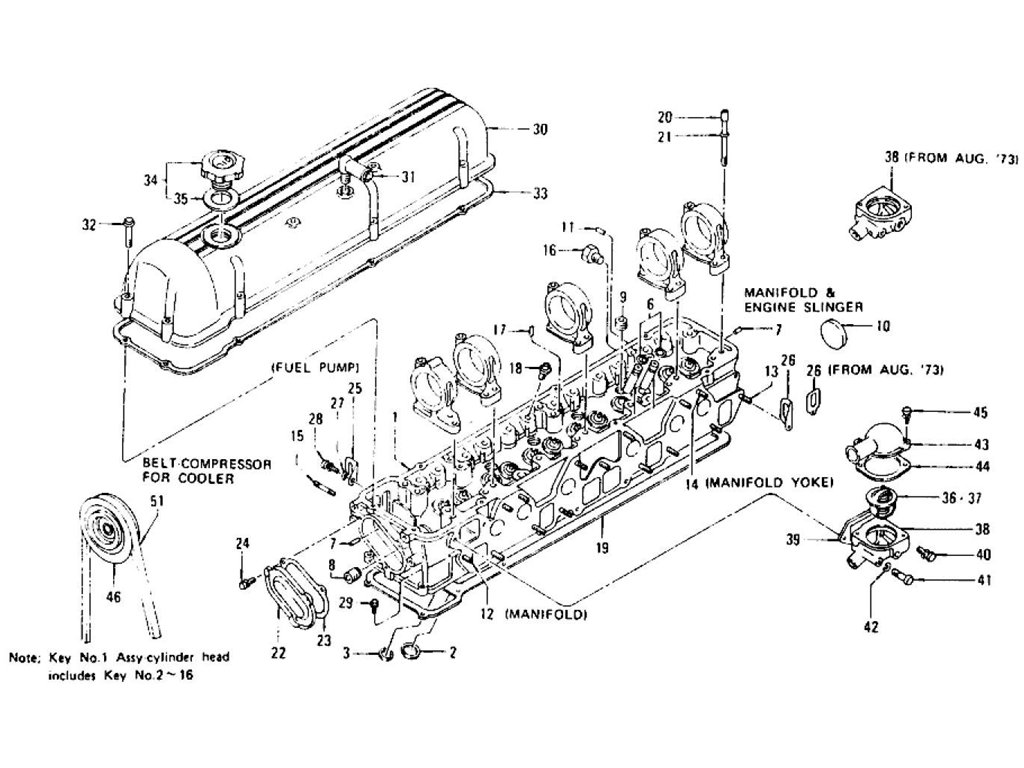

Cylinder Head, Rocker Cover & Thermostat L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CYLINDER HEAD | 11041-E3100 | L24 | 7108 | 1 | ||||
| 1 | ASSY-CYLINDER HEAD | 11041-E8800 | L24 | 7109 | 7205 | 1 | No | No | 11041-E3100 |
| 1 | ASSY-CYLINDER HEAD | 11041-E8801 | L24 | 7206 | 1 | Yes | Yes | 11041-E8800 | |
| 1 | ASSY-CYLINDER HEAD | 11041-N3300 | L24 | 7207 | 1 | No | No | 11041-E8800 | |
| 1 | ASSY-CYLINDER HEAD | 11041-N3301 | L24 | 7207 | 1 | Yes | Yes | 11041-N3300 | |
| 1 | 11041-P5002SV | 11041-P5003 | L26 | 7308 | 1 | No | No | 11041-N3302 | |
| 1 | 11041-N3301SV | 11041-N3302 | L24 | 1 | Yes | Yes | 11041-N3301 | ||
| 2 | INSERT-VALVE INTAKE | 11098-E4110 | L24 | 7206 | 6 | ||||
| 2 | INSERT-VALVE INTAKE | 11098-N3010 | L24 | L26 | 7207 | 7307 | 6 | Yes | Yes |
| 2 | INSERT-VALVE INTAKE | 11098-U8710 | L26 | 7308 | 6 | No | No | 11098-N3010 | |
| 3 | INSERT-VALVE EXHAUST | 11099-21011 | L24 | 6 | |||||
| 3 | INSERT-VALVE EXHAUST | 11099-A8610 | L24 | 6 | No | No | 11099-21011 | ||
| 3 | INSERT-VALVE EXHAUST | 11099-P0310 | L24 | L26 | 7307 | 6 | Yes | Yes | |
| 3 | INSERT-VALVE EXHAUST | 11099-Y4010 | L24 | L26 | 7307 | 6 | Yes | Yes | |
| 3 | INSERT-VALVE EXHAUST | 11099-P5000 | L26 | 7308 | 6 | No | No | 11099-P0310 | |
| 3 | INSERT-VALVE EXHAUST | 11099-P5010 | L26 | 7308 | 6 | ||||
| 4 | GUIDE-VALVE INTAKE | 13212-21011 | L24 | 7307 | 6 | Yes | Yes | 13212-21010 | |
| 4 | GUIDE-VALVE INTAKE | 13212-21010 | L24 | L26 | 6 | ||||
| 5 | GUIDE-VALVE EXHAUST | 13213-21011 | L24 | 7307 | 6 | Yes | Yes | 13213-21010 | |
| 5 | GUIDE-VALVE EXHAUST | 13213-21010 | L24 | L26 | 6 | ||||
| 6 | RING-SNAP VALVE GUID | 13214-73400 | L24 | L26 | 12 | ||||
| 7 | PLUG-BLIND OIL GALLE | 11024-A8600 | L24 | 2 | Yes | Yes | 11024-E3000 | ||
| 7 | PLUG-BLIND OIL GALLE | 11024-E3000 | L24 | 2 | |||||
| 7 | PLUG-BLIND OIL GALLE | 11024-U0100 | L24 | L26 | 2 | Yes | Yes | ||
| 8 | PLUG-BLIND CYLINDER | 11052-E3000 | L24 | L26 | 1 | ||||
| 9 | PLUG-BLIND CYLINDER | 11048-14604 | L24 | L26 | 6 | ||||
| 10 | PLUG-WELCH 35 | 11021-E3000 | L24 | L26 | 1 | ||||
| 11 | PLUG-TAPER 6 | 00933-20670 | L24 | 7307 | 1 | ||||
| 12 | STUD-M8X1.25 MANIFOLD | 08214-82810 | L24 | 7307 | 10 | ||||
| 12 | STUD-M8X1.25 MANIFOLD | 08214-82810 | L26 | 7308 | 4 | ||||
| 13 | STUD-M8X1.25 MANIFOLD | 08214-83010 | L24 | 7307 | 2 | ||||
| 13 | STUD-M8X1.25 MANIFOLD | 08214-83510 | L26 | 7308 | 1 | No | No | 08214-83010 | |
| 14 | STUD-M8X1.25 MANIFOLD | 08214-83210 | L24 | L26 | 6 | ||||
| 15 | STUD-M8X1.25 FUEL PUMP | 08223-83210 | L24 | L26 | 2 | ||||
| 15 | STUD-M8X1.25 FUEL PUMP | 15243-N3310 | L26 | 1 | |||||
| 15 | STUD-M8X1.25 FUEL PUMP | 15243-N3300 | L26 | 7308 | 2 | ||||
| 16 | THREAD-PLUB HEATER O | 08931-30810 | L24 | L26 | 1 | ||||
| 17 | COLLAR-CAMSHAFT BRAC | 11022-20100 | L24 | L26 | 10 | ||||
| 18 | BUSH-ROCKER PIVOT | 13215-21000 | L24 | 12 | |||||
| 18 | BUSH-ROCKER PIVOT | 13215-A8600 | L24 | L26 | 12 | Yes | Yes | ||
| 19 | ASSY-GASKET CYLINDER | 11044-E3100 | L24 | 1 | |||||
| 19 | ASSY-GASKET CYLINDER | 11044-E3101 | L24 | 1 | Yes | Yes | 11044-E3100 | ||
| 19 | ASSY-GASKET CYLINDER | 11044-E3102 | L24 | 7010 | 1 | Yes | Yes | 11044-E3101 | |
| 19 | ASSY-GASKET CYLINDER | 11044-P3001 | L24 | 7208 | 1 | Yes | Yes | 11044-P3000 | |
| 19 | ASSY-GASKET CYLINDER | 11044-P3000 | L24 | 7011 | 1 | No | No | 11044-E3102 | |
| 19 | ASSY-GASKET CYLINDER | 11044-P3002 | L24 | 7209 | 7307 | 1 | Yes | Yes | 11044-P3001 |
| 19 | ASSY-GASKET CYLINDER | 11044-P3004 | L26 | 7308 | 1 | Yes | Yes | 11044-P3002 | |
| 20 | BOLT-CYLINDER HEAD L | 11059-21000 | L24 | 5 | |||||
| 20 | BOLT-CYLINDER HEAD L | 11059-P3000 | L24 | L26 | 5 | Yes | Yes | ||
| 20 | BOLT-CYLINDER HEAD M | 11057-21000 | L24 | 3 | |||||
| 20 | BOLT-CYLINDER HEAD S | 11056-21000 | L24 | 9 | |||||
| 20 | BOLT-CYLINDER HEAD S | 11056-P3000 | L24 | L26 | 9 | Yes | Yes | ||
| 21 | WASHER-PLAIN | 11058-21000 | L24 | L26 | 14 | ||||
| 21 | WASHER-PLAIN | 11058-21001 | L24 | L26 | 14 | Yes | Yes | ||
| 22 | COVER-HEAD FRONT | 11046-A4600 | L24 | L26 | 1 | ||||
| 23 | GASKET-HEAD FRONT CO | 11049-E3000 | L24 | L26 | 1 | ||||
| 24 | BOLT-HEX WITH SPRING | 08110-61214 | L24 | 3 | |||||
| 24 | BOLT-HEX WITH SPRING | 08110-61462 | L24 | L26 | 3 | Yes | Yes | ||
| 25 | SLINGER-ENGINE FRONT | 10005-A3500 | L24 | L26 | 1 | ||||
| 26 | SLINGER-ENGINE REAR | 10006-21000 | L24 | 7307 | 1 | ||||
| 26 | SLINGER-ENGINE REAR | 10006-P0100 | L24 | 7307 | 1 | Yes | Yes | 10006-21000 | |
| 26 | SLINGER-ENGINE REAR | 10006-N3600 | L26 | 7308 | 1 | No | No | 10006-P0100 | |
| 27 | WASHER-SPRING M8 | 08915-23810 | L24 | L26 | 1 | ||||
| 28 | BOLT-HEX FRONT ENGIN | 08110-81610 | L24 | L26 | 1 | ||||
| 29 | BOLT-HEX WITH SPRING | 08110-62214 | L24 | 2 | |||||
| 29 | BOLT-HEX WITH SPRING | 08110-62262 | L24 | L26 | 2 | Yes | Yes | ||
| 30 | ASSY-ROCKER COVER | 13264-E3100 | L24 | 1 | |||||
| 30 | ASSY-ROCKER COVER | 13264-P0100 | L24 | L26 | 1 | Yes | Yes | ||
| 31 | CONNECTOR-BREATHER T | 13267-23000 | L24 | L26 | 1 | ||||
| 32 | BOLT-ROCKER COVER | 13274-E3000 | L24 | 8 | |||||
| 32 | BOLT-ROCKER COVER | 01121-00061 | L24 | L26 | 8 | Yes | Yes | ||
| 33 | GASKET-ROCKER COVER | 13270-E3000 | L24 | 1 | |||||
| 33 | GASKET-ROCKER COVER | 13270-E3001 | L24 | L26 | 1 | Yes | Yes | ||
| 33 | GASKET-ROCKER COVER | 13270-Y7000 | L24 | L26 | 1 | Yes | Yes | ||
| 34 | CAP-OIL FILLER | 15255-E3100 | L24 | 1 | |||||
| 34 | CAP-OIL FILLER | 15255-P0300 | L24 | L26 | 1 | Yes | Yes | ||
| 34 | CAP-OIL FILLER | 15255-U9600 | L24 | L26 | 1 | Yes | Yes | ||
| 35 | PACKING-OIL FILLER C | 15270-E3000 | L24 | 7108 | 1 | ||||
| 35 | PACKING-OIL FILLER C | 15270-78500 | L24 | L26 | 7109 | 1 | No | No | |
| 36 | ASSY-THERMOSTAT 82C | 21200-A3001 | L24 | L26 | 1 | ||||
| 36 | ASSY-THERMOSTAT 82C | 21200-V0100 | L24 | L26 | 1 | Yes | Yes | ||
| 37 | ASSY-THERMOSTAT COLD | 21200-A3005 | OP L24 | L26 | 1 | ||||
| 37 | ASSY-THERMOSTAT COLD | 21200-V0105 | OP L24 | L26 | 1 | Yes | Yes | ||
| 37 | ASSY-THERMOSTAT TROP | 21200-78502 | OP L24 | L26 | 1 | ||||
| 38 | HOUSING-THERMOSTAT | 11061-E3000 | L24 | 1 | |||||
| 38 | HOUSING-THERMOSTAT | 11061-P0300 | L24 | 7206 | 1 | Yes | Yes | 11061-E3000 | |
| 38 | HOUSING-THERMOSTAT | 11061-N3300 | L24 | 7207 | 7307 | 1 | No | No | 11061-P0300 |
| 38 | HOUSING-THERMOSTAT | 11061-N3600 | L26 | 7308 | 1 | No | No | 11061-N3300 | |
| 39 | GASKET-THERMOSTAT HO | 11072-21000 | L24 | L26 | 1 | ||||
| 39 | GASKET-THERMOSTAT HO | 11072-S3001 | L24 | L26 | 1 | Yes | Yes | ||
| 39 | GASKET-THERMOSTAT HO | 11072-S3000 | L26 | 1 | Yes | Yes | 11072-21000 | ||
| 40 | BOLT-HEX M8 | 08110-83014 | L24 | 1 | |||||
| 40 | BOLT-HEX M8 | 08110-83062 | L24 | L26 | 1 | Yes | Yes | ||
| 41 | BOLT-HEX M8 | 11063-21001 | L24 | L26 | 1 | ||||
| 42 | WASHER-SPRING | 08915-13810 | L24 | L26 | 1 | ||||
| 43 | OUTLET-WATER | 11060-21000 | L24 | 1 | |||||
| 43 | OUTLET-WATER | 11060-U0100 | L24 | L26 | 1 | Yes | Yes | ||
| 43 | OUTLET-WATER | 11060-U2001 | L24 | L26 | 7303 | 1 | No | No | |
| 44 | WASHER-JOINT OUTLET | 11062-21000 | L24 | L26 | 1 | ||||
| 44 | WASHER-JOINT OUTLET | 11062-S3001 | L24 | L26 | 1 | Yes | Yes | ||
| 44 | WASHER-JOINT OUTLET | 11062-S3000 | L26 | 1 | Yes | Yes | 11062-21000 | ||
| 45 | BOLT-HEX M8 | 08110-83014 | L24 | 2 | |||||
| 45 | BOLT-HEX M8 | 08110-83062 | L24 | 7307 | 2 | Yes | Yes | 08110-83014 | |
| 45 | BOLT-HEX M8 | 08110-82862 | L26 | 7308 | 2 | No | No | 08110-83062 | |
| 46 | ASSY-PULLEY IDLER CO | 11925-U6000 | OP L26 | 7308 | 1 | ||||
| 47 | BRACKET-PULLEY IDLER | 11926-U6000 | OP L26 | 7308 | 1 | ||||
| 48 | BOLT-HEX M8X1.25 FOR | 08130-81610 | OP L26 | 7308 | 1 | ||||
| 49 | BOLT-HEX M6X1.0 FOR | 08130-62010 | OP L26 | 7308 | 2 | ||||
| 50 | WASHER-LOCK M6 FOR C | 08915-13610 | OP L26 | 7308 | 2 | ||||
| 51 | BELT-COMPRESSOR FOR | 11920-E4600 | OP L24 | 7307 | 1 | ||||
| 51 | BELT-COMPRESSOR FOR | 11920-N3600 | OP L26 | 7308 | 1 | ||||
| 52 | ASSY-SWITCH WATER TE | 22120-N3300 | L24 | 7307 | 1 |
