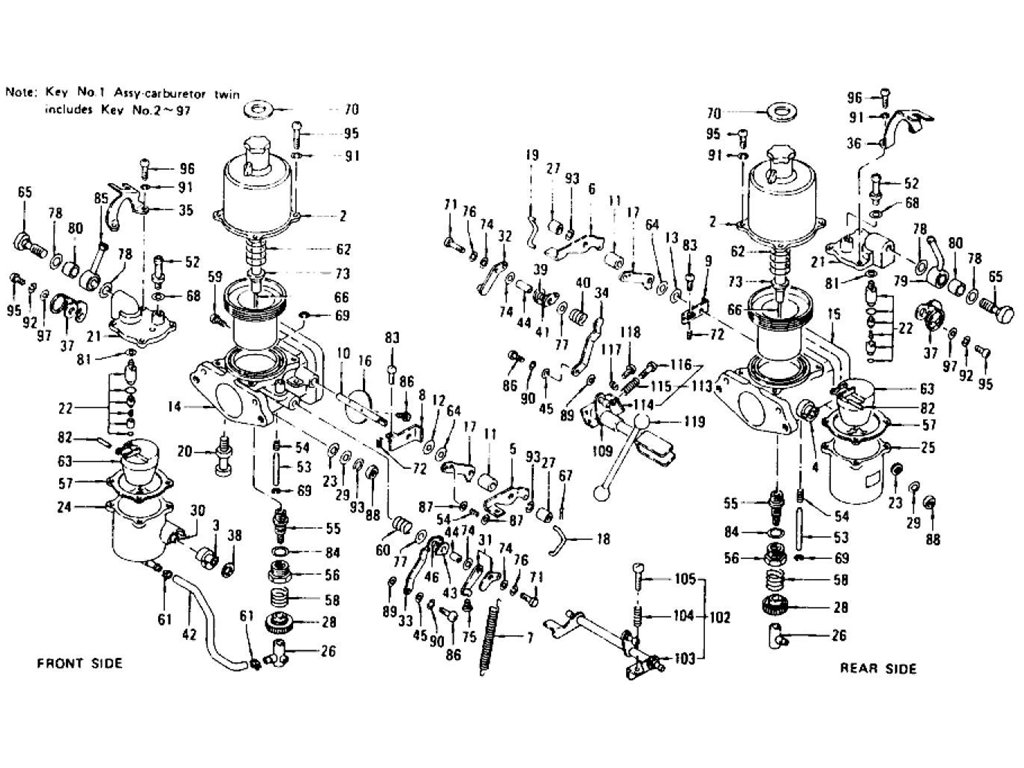

Carburetor L24 (To Aug.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CARBURETOR TWIN | 16010-E4302 | L24 AUTOMATIC | 7008 | 7108 | 1 | |||
| 1 | ASSY-CARBURETOR TWIN | 16010-E4301 | L24 MANUAL | 7108 | 1 | ||||
| 2 | CHAMBER-SUCTION | 16340-E4310 | L24 | 7108 | 2 | ||||
| 3 | ADAPTER-RUBBER(F( | 16227-E4310 | L24 | 7108 | 1 | ||||
| 4 | ADAPTER-RUBBER(R) | 16227-E4311 | L24 | 7108 | 1 | ||||
| 5 | LEVER-THROTTLE(F) | 16134-E4310 | L24 | 7108 | 1 | ||||
| 6 | LEVER-THROTTLE(R) | 16134-E4311 | L24 | 7108 | 1 | ||||
| 7 | SPRING-THROTTLE | 16194-E4310 | L24 | 7108 | 2 | ||||
| 8 | LEVER-ADJUST(F) | 16127-E4310 | L24 | 7108 | 1 | ||||
| 9 | LEVER-ADJUST(R) | 16127-E4311 | L24 | 7108 | 1 | ||||
| 10 | ASSY-SHAFT THROTTLE | 16122-E4311 | L24 | 7008 | 2 | Yes | Yes | 16122-E4310 | |
| 10 | SHAFT-THROTTLE | 16122-E4310 | L24 | 7007 | 2 | ||||
| 11 | SLEEVE | 16117-E4310 | L24 | 7108 | 2 | ||||
| 12 | PLATE-THROTTLE(F) | 16147-E4312 | L24 | 7108 | 1 | ||||
| 13 | PLATE-THROTTLE(R) | 16147-E4313 | L24 | 7108 | 1 | ||||
| 14 | CHAMBER THROTTLE(F) | 16118-E4310 | L24 | 7108 | 1 | ||||
| 15 | CHAMBER-THROTTLE(R) | 16118-E4311 | L24 | 7108 | 1 | ||||
| 16 | VALVE-THROTTLE | 16120-E4310 | L24 | 7108 | 2 | ||||
| 17 | ASSY-LEVER FIRST IDE | 16277-E4312 | L24 | 7008 | 7108 | 1 | Yes | Yes | 16277-E4310 |
| 17 | ASSY-LEVER FIRST IDL | 16277-E4311 | L24 | 7008 | 7108 | 1 | Yes | Yes | 16277-E4310 |
| 17 | LEVER-FIRST IDLE | 16277-E4310 | L24 | 7007 | 2 | ||||
| 18 | CONROD (F) | 16248-E4310 | L24 | 7108 | 1 | ||||
| 19 | CONROD(R) | 16248-E4311 | L24 | 7108 | 1 | ||||
| 20 | ASSY-STOPPER IDLE | 16231-25610 | L24 | 7108 | 2 | ||||
| 21 | COVER-FLOAT CHAMBER | 16125-E4310 | L24 | 7108 | 2 | ||||
| 22 | VALVE-NEEDLE 2D | 16101-25610 | L24 | 7108 | 2 | ||||
| 23 | WASHER-RUBBER 8D | 16228-25610 | L24 | 7108 | 2 | ||||
| 24 | CHAMBER-FLOAT FRONT | 16011-25615 | L24 | 7108 | 1 | ||||
| 25 | CHAMBER-FLOAT REAR | 16011-25616 | L24 | 7108 | 1 | ||||
| 26 | ASSY-NOZZLE | 16355-E4310 | L24 | 7008 | 7108 | 2 | Yes | Yes | 16355-25615 |
| 26 | NOZZLE | 16355-25615 | L24 | 7007 | 2 | ||||
| 27 | NUT 8D | 16214-25610 | L24 | 7108 | 2 | ||||
| 28 | ASSY-NUT IDLE ADJUST | 16144-A8710 | L24 | 7008 | 7108 | 2 | Yes | Yes | 16144-25610 |
| 28 | NUT-IDLE ADJUST | 16144-25610 | L24 | 7007 | 2 | ||||
| 29 | WASHER 6D | 16218-25610 | L24 | 7108 | 2 | ||||
| 30 | BOLT 8D | 16322-25610 | L24 | 7108 | 2 | ||||
| 31 | ASSY-LEVER CHOKE (F) | 16238-E4310 | L24 | 7008 | 7108 | 1 | Yes | Yes | 16238-25615 |
| 31 | LEVER "F" CHOKE | 16238-25615 | L24 | 7007 | 1 | ||||
| 32 | ASSY-LEVER CHOKE (R) | 16238-E4311 | L24 | 7008 | 7108 | 1 | Yes | Yes | 16238-25616 |
| 32 | LEVER "R" CHOKE | 16238-25616 | L24 | 7007 | 1 | ||||
| 33 | PLATE "F" CONNECTING | 16147-25612 | L24 | 7108 | 1 | ||||
| 34 | PLATE "R" CONNECTING | 16147-25613 | L24 | 7108 | 1 | ||||
| 35 | PLATE-STOPPING | 16137-E3211 | L24 | 7108 | 1 | ||||
| 36 | PLATE-STOPPING | 16137-E3210 | L24 | 7108 | 1 | ||||
| 37 | LEVER -LOCK (A) | 16138-22010 | L24 | 7108 | 1 | ||||
| 38 | WASHER | 16217-25610 | L24 | 7108 | 1 | ||||
| 39 | SPRING-CONNECTING | 16157-73410 | L24 | 7108 | 1 | ||||
| 40 | SPRING-STARTE RETURN | 16190-H2711 | L24 | 7108 | 1 | Yes | Yes | 16190-73410 | |
| 40 | SPRING-STARTER RETUR | 16190-73410 | L24 | 7108 | 1 | ||||
| 41 | PLATE "D" CONNECTING | 16147-73411 | L24 | 7108 | 1 | ||||
| 42 | PIPE FUEL | 16356-25610 | L24 | 7108 | 2 | ||||
| 43 | PLATE"B" CONNECTING | 16147-14611 | L24 | 7108 | 1 | ||||
| 44 | SLEEVE B | 16116-14610 | L24 | 7108 | 2 | ||||
| 45 | SLEEVE C | 16123-14610 | L24 | 7108 | 2 | ||||
| 46 | SPRING-CONNECTING | 16157-14610 | L24 | 7108 | 1 | ||||
| 47 | ASSY-DAMPER OIL CAP | 16341-E4310 | L24 | 7108 | 2 | ||||
| 48 | WASHER-OIL DAMPER | 16344-10400 | L24 | 7108 | 2 | ||||
| 49 | ASSY-NUT OIL CAP | 16341-E4310 | L24 | 7108 | 2 | Yes | Yes | 16341-E4311 | |
| 49 | NUT-OIL CAP | 16341-E4311 | L24 | 7108 | 2 | ||||
| 50 | PLUNGER OIL DAMPER | 16343-E4310 | L24 | 7108 | 2 | ||||
| 51 | RING-"E" 3 | 16345-10400 | L24 | 7108 | 2 | ||||
| 52 | NIPPLE-OVER FLOW | 16126-E4310 | L24 | 7108 | 2 | ||||
| 53 | ASSY-LIFTER PISTON | 16324-H2310 | L24 | 7008 | 7108 | 2 | Yes | Yes | 16324-10400 |
| 53 | LIFTER-PISTON | 16324-10400 | L24 | 7007 | 2 | ||||
| 54 | SPRING-LIFTER | 16325-10400 | L24 | 7108 | 4 | ||||
| 55 | SLEEVE-NOZZLE | 16351-10400 | L24 | 7108 | 2 | ||||
| 56 | SCREW-SET NOZZLE SLE | 16027-10400 | L24 | 7108 | 2 | ||||
| 57 | GASKET-FLOAT CHAMBER | 16064-22010 | L24 | 7108 | 2 | ||||
| 58 | SPRING-IDLE ADJUST S | 16145-10400 | L24 | 7108 | 2 | ||||
| 59 | SCREW-SET JET NEEDLE | 16219-22015 | L24 | 7108 | 2 | ||||
| 60 | SPRING-STARTER RETUR | 16190-10401 | L24 | 7108 | 1 | ||||
| 60 | SPRING-STARTER RETUR | 16190-H2710 | L24 | 7108 | 1 | Yes | Yes | 16190-10401 | |
| 61 | CLIP | 16358-E4310 | L24 | 7108 | 4 | ||||
| 62 | SPRING-SUCTION 23 | 16346-12210 | L24 | 7108 | 2 | ||||
| 63 | FLOAT | 16061-25610 | L24 | 7007 | 2 | ||||
| 63 | FLOAT | 16061-E4310 | L24 | 7008 | 7108 | 2 | Yes | Yes | 16061-25610 |
| 64 | WASHER 8D | 16084-14610 | L24 | 7108 | 2 | ||||
| 65 | BOLT-FILTER | 16108-18010 | L24 | 7108 | 2 | ||||
| 66 | NEEDLE-JET (N-27) | 16354-E4310 | L24 | 7108 | 2 | ||||
| 67 | PIN-COTTER 1D | 16901-10560 | L24 | 7108 | 6 | ||||
| 68 | PACKING 10D | 16335-14610 | L24 | 7108 | 2 | ||||
| 69 | RING-"E" 6 | 16326-10400 | L24 | 7108 | 4 | ||||
| 70 | PACKING 18D | 16342-10400 | L24 | 7108 | 2 | ||||
| 71 | BOLT 5D | 16185-22015 | L24 | 7108 | 2 | ||||
| 72 | SPRING-THROTTLE ADJU | 16193-10400 | L24 | 7108 | 2 | ||||
| 73 | PACKING-NYLON 12.5D | 16347-10400 | L24 | 7108 | 2 | ||||
| 74 | WASHER 7D | 16217-10401 | L24 | 7108 | 4 | ||||
| 75 | BOLT 5D | 16185-22016 | L24 | 7108 | 2 | ||||
| 76 | WASHER-SPRING | 16076-14610 | L24 | 7108 | 2 | ||||
| 77 | WASHER 5D | 16072-14610 | L24 | 7108 | 2 | ||||
| 78 | WASHER 12D | 16094-76500 | L24 | 7108 | 4 | ||||
| 79 | NIPPLE-FUEL REAR | 16111-E4311 | L24 | 7108 | 1 | ||||
| 80 | FILTER | 16098-73401 | L24 | 7108 | 2 | ||||
| 81 | WASHER 6D | 16094-25610 | L24 | 7108 | 2 | ||||
| 82 | SHAFT-FLOAT | 16066-25610 | L24 | 7108 | 2 | ||||
| 83 | SCREW-THROTTLE ADJUS | 16114-25615 | L24 | 7108 | 2 | ||||
| 84 | WASHER 10D | 16130-25610 | L24 | 7108 | 2 | ||||
| 85 | NIPPLE-FUEL FRONT | 16111-E4310 | L24 | 7108 | 1 | ||||
| 86 | SCREW 4DX10 | 22103-18005 | L24 | 7108 | 2 | ||||
| 86 | SCREW 4DX10 | 22103-E4310 | L24 | 7108 | 2 | ||||
| 87 | WASHER 3D | 16215-21610 | L24 | 7108 | 4 | ||||
| 88 | NUT 6D | 16088-25610 | L24 | 7108 | 2 | ||||
| 89 | WASHER 4D | 22185-50000 | L24 | 7108 | 2 | ||||
| 90 | WASHER-SPRING 4D | 22156-85060 | L24 | 7108 | 2 | ||||
| 91 | WASHER-SPRING 5D | 23502-30000 | L24 | 7108 | 18 | ||||
| 92 | WASHER-SPRING 8D | 22203-50000 | L24 | 7108 | 2 | ||||
| 93 | WASHER-SPRING 8D | 23109-30000 | L24 | 7108 | 2 | ||||
| 94 | SCREW SDX18 | 23158-65105 | L24 | 7108 | 2 | ||||
| 95 | SCREW 5DX16 | 16131-19915 | L24 | 7108 | 12 | ||||
| 96 | SCREW SDX18 | 16129-75015 | L24 | 7108 | 4 | ||||
| 97 | WASHER 5D | 16072-18010 | L24 | 7108 | 2 | ||||
| 98 | INSULATOR-CARBURETOR | 16174-25600 | L24 | 7108 | 2 | ||||
| 99 | WASHER-PLAIN | 08915-43810 | L24 | 7108 | 8 | ||||
| 100 | WASHER-SPRING | 08915-13810 | L24 | 7108 | 8 | ||||
| 101 | NUT-HEX CARBURETOR F | 08911-20810 | L24 | 7108 | 8 | ||||
| 102 | ASSY-THROTTLE SHAFT | 16380-E4601 | L24 | 7108 | 1 | ||||
| 103 | SHAFT-THROTTLE | 16381-E4601 | L24 | 7108 | 1 | ||||
| 104 | SPRING-THROTTLE ADJU | 16378-E4300 | L24 | 7108 | 2 | ||||
| 105 | SCREW-THROTTLE ADJUS | 16379-E4300 | L24 | 7108 | 2 | ||||
| 106 | PLATE-HEAT SHIELD CA | 14330-E4300 | L24 | 7108 | 1 | ||||
| 107 | WASHER-PLAIN | 08915-43610 | L24 | 7108 | 4 | ||||
| 108 | BOLT-HEX M6X1.0 | 08110-61262 | L24 | 7108 | 4 | ||||
| 109 | SHAFT-AUXILIARY THRO | 16361-E4300 | L24 | 7108 | 1 | ||||
| 110 | ARM-AUXILIARY THROTT | 16365-E4300 | L24 | 7108 | 1 | ||||
| 111 | WASHER-TOOTH LOCK | 08916-43510 | L24 | 7307 | 1 | ||||
| 112 | SCREW-MS SHAFT FIX | 08330-51612 | L24 | 7108 | 1 | ||||
| 113 | ASSY-BRACKET ADJUST | 16375-E4300 | L24 | 7108 | 1 | ||||
| 114 | BRACKET-ADJUST SCREW | 16376-E4300 | L24 | 7108 | 1 | ||||
| 115 | SPRING-THROTTLE ADJU | 16378-E4300 | L24 | 7108 | 1 | ||||
| 116 | SCREW-THROTTLE ADJUS | 16379-E4300 | L24 | 7108 | 1 | ||||
| 117 | WASHER-SPRING | 08915-13510 | L24 | 7108 | 2 | ||||
| 118 | SCREW M5 BRACKET FIX | 08310-51212 | L24 | 7108 | 2 | ||||
| 119 | ROD-CONNECTING | 16371-E4300 | L24 | 7108 | 1 | ||||
| 120 | PLUG-DRAIN FLOAT CHA | 16031-A8710 | L24 | 7108 | 2 | ||||
| 121 | CLAMP-CHOKE WIRE (F) | 18418-E3200 | L24 | 7008 | 7108 | 2 | |||
| 121 | CLAMP-CHOKE WIRE (R) | 18419-E3200 | L24 | 7008 | 7108 | 1 | |||
| 122 | KIT-SCREW & WASHER A | 16465-H2310 | L24 | 7008 | 7108 | 1 | |||
| 122 | KIT-SCREW & WASHER B | 16475-H2310 | L24 | 7008 | 7108 | 1 | |||
| 123 | KIT-GASKET | 16455-H2310 | L24 | 7008 | 7108 | 1 | |||
| 124 | KIT-REPAIR A CARBURE | 16009-E4310 | L24 | 7008 | 7108 | 1 | |||
| 125 | GASKET | 16455-H2310 | L24 | 7008 | 7108 | 2 | |||
| 126 | CLIP | 16358-E4310 | L24 | 7008 | 7108 | 4 | |||
| 127 | WASHER-GUM 8-DIA | 16228-25610 | L24 | 7008 | 7108 | 2 | |||
| 128 | FUEL-PIPE | 16356-25610 | L24 | 7008 | 7108 | 2 | |||
| 129 | KIT-REPAIR B CARBURE | 16009-E4311 | L24 | 7008 | 7108 | 1 | |||
| 130 | KIT-SCREW & WASHER | 16475-H2310 | L24 | 7008 | 7108 | 1 | |||
| 131 | FILTER | 16098-73401 | L24 | 7008 | 7108 | 1 | |||
| 132 | VALVE-NEEDLE 2-DIA | 16101-25610 | L24 | 7008 | 7108 | 1 | |||
| 133 | SHAFT-FLOAT | 16066-25610 | L24 | 7008 | 7108 | 1 | |||
| 134 | LIFTER-PISTON | 16324-10400 | L24 | 7008 | 7108 | 1 | |||
| 135 | RING-R 6 | 16326-10400 | L24 | 7008 | 7108 | 1 | |||
| 136 | KIT-GASKET | 16445-H2310 | L24 | 7008 | 7108 | 1 | |||
| 137 | CLIP | 16358-E4310 | L24 | 7008 | 7108 | 2 | |||
| 138 | WASHER-GUM 8-DIA | 16228-25610 | L24 | 7008 | 7108 | 1 | |||
| 139 | WASHER | 16217-25610 | L24 | 7008 | 7108 | 1 | |||
| 140 | FUEL-PIPE | 16356-25610 | L24 | 7008 | 7108 | 1 |
