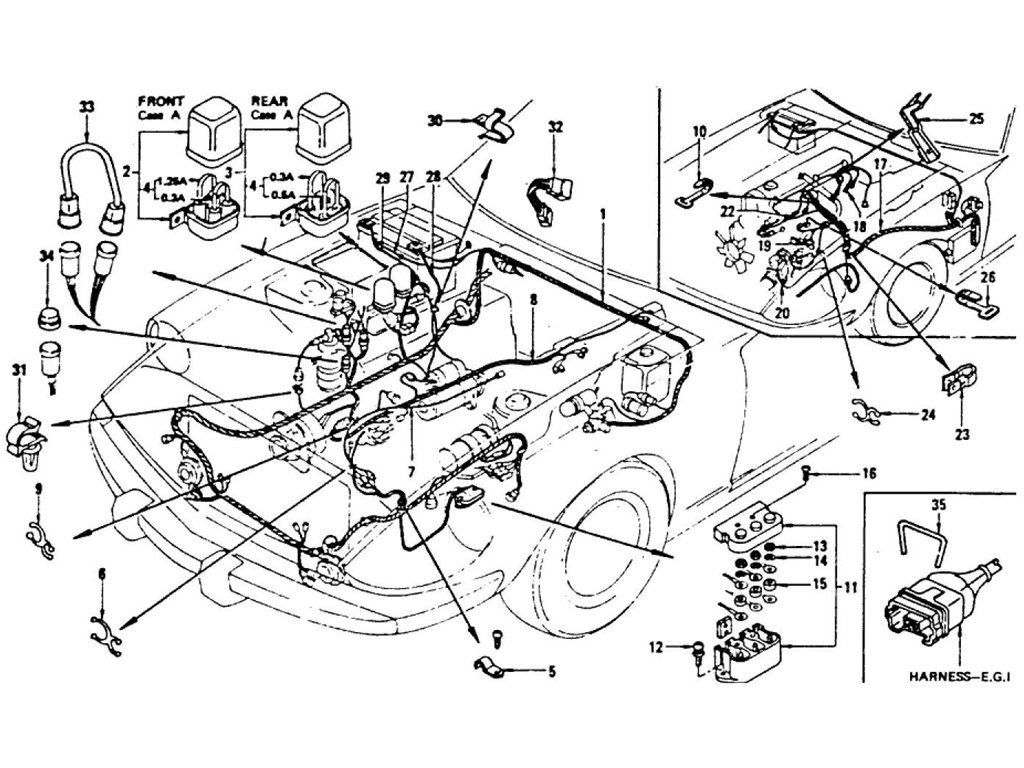

Wiring (Engine Room) (From Dec.-'74 To Jul.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-HARNESS ENGINE | 24012-N4301 | CAL AUTO | 7412 | 7502 | 1 | |||
| 1 | ASSY-HARNESS ENGINE | 24012-N4305 | CAL AUTO | 7503 | 7507 | 1 | No | No | 24012-N4301 |
| 1 | ASSY-HARNESS ENGINE | 24012-N4303 | CAL AUTO | 7508 | 7607 | 1 | No | No | 24012-N4305 |
| 1 | ASSY-HARNESS ENGINE | 24012-N4300 | CAL MANUAL | 7412 | 7502 | 1 | |||
| 1 | ASSY-HARNESS ENGINE | 24012-N4304 | CAL MANUAL | 7503 | 7507 | 1 | No | No | 24012-N4300 |
| 1 | ASSY-HARNESS ENGINE | 24012-N4302 | CAL MANUAL | 7508 | 7607 | 1 | No | No | 24012-N4304 |
| 1 | ASSY-HARNESS ENGINE | 24012-N4201 | FED AUTO | 7412 | 7502 | 1 | |||
| 1 | ASSY-HARNESS ENGINE | 24012-N4209 | FED AUTO | 7503 | 7507 | 1 | No | No | 24012-N4201 |
| 1 | ASSY-HARNESS ENGINE | 24012-N4203 | FED AUTO | 7508 | 7607 | 1 | No | No | 24012-N4209 |
| 1 | ASSY-HARNESS ENGINE | 24012-N4200 | FED MANUAL | 7412 | 7502 | 1 | |||
| 1 | ASSY-HARNESS ENGINE | 24012-N4204 | FED MANUAL | 7503 | 7507 | 1 | No | No | 24012-N4200 |
| 1 | ASSY-HARNESS ENGINE | 24012-N4202 | FED MANUAL | 7508 | 7607 | 1 | No | No | 24012-N4204 |
| 2 | BOX-FUSIBLE LINK | 24020-N3700 | 7412 | 7507 | 1 | ||||
| 3 | CASE-FUSIBLE LINK | 24020-N4200 | 7508 | 7607 | 1 | ||||
| 3 | CASE-FUSIBLE LINK | 24020-N4201 | 7508 | 7607 | 1 | ||||
| 4 | FUSIBLE LINK-0.3 | 24161-N4200 | 7508 | 7607 | 2 | ||||
| 4 | FUSIBLE LINK-0.5 | 24161-28500 | 7412 | 7607 | 1 | ||||
| 4 | FUSIBLE LINK-1.25 | 24161-A0100 | 7412 | 1 | |||||
| 5 | CLIP | 24210-N4305 | 7412 | 2 | |||||
| 6 | CLIP | 24220-E4101 | 7412 | 1 | |||||
| 7 | ASSY-HARNESS ENGINE | 24078-N4300 | CAL | 7412 | 7507 | 1 | |||
| 7 | ASSY-HARNESS ENGINE | 24078-N4301 | CAL | 7508 | 7607 | 1 | No | No | 24078-N4300 |
| 7 | ASSY-HARNESS ENGINE | 24078-N4200 | FED | 7412 | 7507 | 1 | |||
| 7 | ASSY-HARNESS ENGINE | 24078-N4201 | FED | 7508 | 7607 | 1 | No | No | 24078-N4200 |
| 8 | ASSY-HARNESS ENGINE | 24077-N4201 | AUTOMATIC | 7412 | 7607 | 1 | |||
| 8 | ASSY-HARNESS ENGINE | 24077-N4200 | MANUAL | 7412 | 7502 | 1 | |||
| 8 | ASSY-HARNESS ENGINE | 24077-N4202 | MANUAL | 7503 | 7607 | 1 | No | No | 24077-N4200 |
| 9 | CLIP | 24220-N3301 | 7412 | 1 | |||||
| 10 | CLIP | 24216-S3000 | 7412 | 2 | Yes | Yes | 24220-89963 | ||
| 10 | CLIP | 24220-89963 | 7412 | 2 | |||||
| 10 | CLIP | 24216-S3000 | CAL | 7412 | 1 | Yes | Yes | 24220-89963 | |
| 10 | CLIP | 24220-89963 | CAL | 7412 | 1 | ||||
| 11 | BLOCK-TERMINAL | 24350-89900 | CAL | 7412 | 7607 | 1 | |||
| 11 | BLOCK-TERMINAL | 24350-N4200 | FED | 7412 | 1 | ||||
| 12 | SCREW-MACHINE | 08360-61426 | 7412 | 7607 | 2 | ||||
| 13 | NUT-HEX M4 | 01211-00131 | FED | 7412 | 1 | ||||
| 13 | NUT-HEX M5 | 01211-00111 | 7412 | 1 | |||||
| 13 | NUT-HEX M5 | 01211-00121 | 7412 | 1 | |||||
| 14 | WASHER-SPRING M4 | 01321-00061 | FED | 7412 | 1 | ||||
| 14 | WASHER-SPRING M5 | 01321-00041 | 7412 | 1 | |||||
| 14 | WASHER-SPRING M6 | 01321-00051 | 7412 | 1 | |||||
| 15 | SPACER FOR M4 | 24354-N4200 | FED | 7412 | 1 | ||||
| 15 | SPACER FOR M6 | 24354-89901 | 7412 | 2 | |||||
| 16 | SCREW | 08513-61623 | 7412 | 2 | |||||
| 17 | ASSY-HARNESS EGI | 24011-N4202 | 7412 | 7507 | 1 | ||||
| 17 | ASSY-HARNESS EGI | 24011-N4203 | 7508 | 1 | Yes | Yes | 24011-N4202 | ||
| 18 | ASSY-CONNECTOR 2 POL | B4340-N4201 | 7412 | 1 | |||||
| 19 | ASSY-CONNECTOR 3 POL | B4340-N4205 | 7412 | 1 | |||||
| 20 | ASSY-CONNECTOR 7 POL | B4340-N4206 | 7412 | 1 | |||||
| 21 | TERMINAL-RELAY | 24342-N4200 | 7412 | 2 | |||||
| 22 | ASSY-SUB HARNESS EGI | 24079-N4202 | 7412 | 7507 | 1 | ||||
| 22 | ASSY-SUB HARNESS EGI | 24079-N4203 | 7508 | 1 | Yes | Yes | 24079-N4202 | ||
| 22 | ASSY-SUB HARNESS EGI | 24079-U8700 | 7508 | 1 | Yes | Yes | 24079-N4203 | ||
| 23 | CLIP | 24210-N4205 | 7412 | 1 | |||||
| 24 | CLIP | 24220-N3301 | 7412 | 1 | |||||
| 25 | CLIP | 24210-N4206 | 7412 | 1 | |||||
| 26 | CLIP | 01552-00421 | 1 | Yes | Yes | 14896-25600 | |||
| 26 | CLIP | 14896-25600 | 7412 | 1 | |||||
| 27 | FUSIBLE LINK 0.5 | 24022-89905 | 7412 | 1 | |||||
| 27 | FUSIBLE LINK 0.5 | 24022-N4200 | 7412 | 1 | Yes | Yes | 24022-89905 | ||
| 28 | ASSY-CABLE BATTERY - | 24080-N4200 | 7412 | 1 | |||||
| 29 | ASSY-CABLE BATTERY + | 24110-N4201 | AUTOMATIC | 7412 | 1 | ||||
| 29 | ASSY-CABLE BATTERY + | 24110-N4200 | MANUAL | 7412 | 1 | ||||
| 30 | CLIP | 24220-E8200 | 7412 | 2 | |||||
| 31 | CLIP | 24220-H6600 | FOR AIR CON | 7412 | 1 | ||||
| 32 | ADAPTER-HARNESS A | 24035-N3602 | CANADA | 7412 | 3 | ||||
| 33 | ADAPTER-HARNESS B | 24036-N4200 | CANADA | 7412 | 3 | ||||
| 34 | COVER-CONNECTOR | 24039-N4200 | CANADA | 7412 | 2 | ||||
| 35 | SPRING HARNESS EGI | B4111-U7600 | FOR SERVICE | 7412 | 6 |
