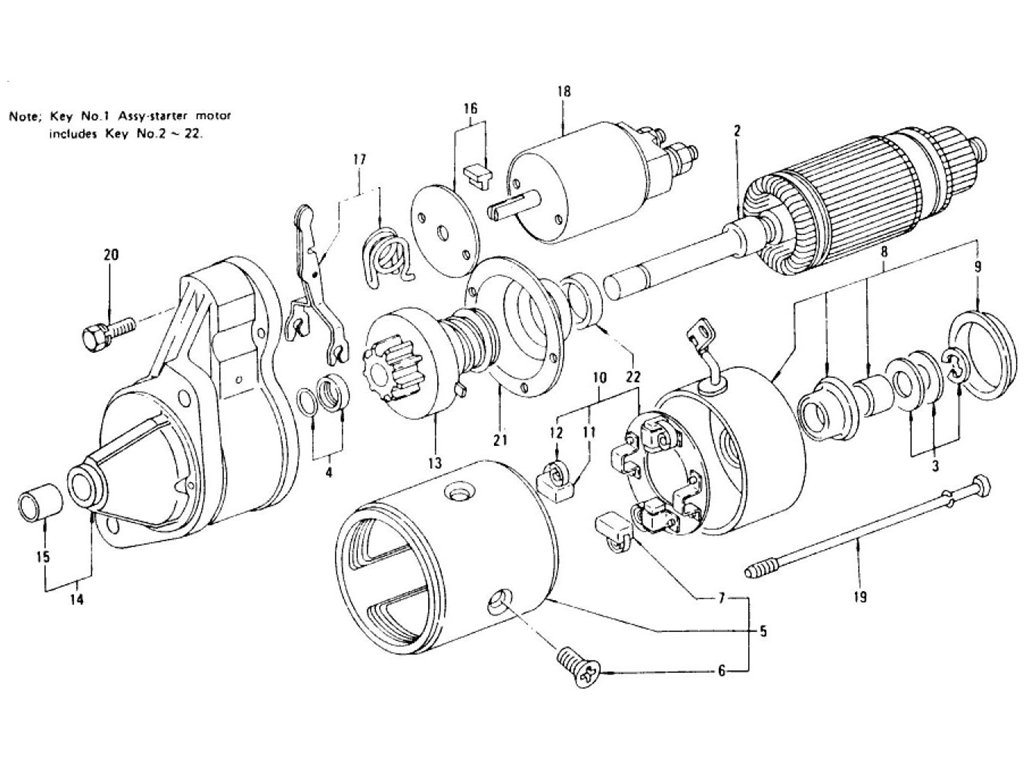

Starter Motor (For Manual) (From Oct.-'75)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-STARTER MOTOR | 23300-Y0700 | L28E MANUAL | 7510 | 7702 | 1 | |||
| 1 | ASSY-STARTER MOTOR | 23300-Y0701 | L28E MANUAL | 7703 | 1 | Yes | Yes | 23300-Y0700 | |
| 2 | ASSY-ARMATURE | 23310-Y0700 | L28E MANUAL | 7510 | 1 | ||||
| 3 | KIT-WASHER | 23321-N3300 | L28E MANUAL | 7510 | 1 | ||||
| 4 | SET-STOPPER | 23465-N3300 | L28E MANUAL | 7510 | 1 | ||||
| 5 | ASSY-COIL FIELD | 23306-Y0700 | L28E MANUAL | 7510 | 1 | ||||
| 6 | SCREW-POLE CORE SET | 23305-U0100 | L28E MANUAL | 7510 | 4 | ||||
| 7 | BRUSH (+) | 23380-M0100 | L28E MANUAL | 7510 | 2 | ||||
| 8 | ASSY-COVER REAR | 23337-U0100 | L28E MANUAL | 7510 | 1 | ||||
| 9 | METAL-REAR COVER | 23338-N3300 | L28E MANUAL | 7510 | 1 | ||||
| 10 | ASSY-HOLDER BRUSH | 23378-N3300 | L28E MANUAL | 7510 | 1 | ||||
| 11 | BRUSH (-+ | 23379-M0100 | L28E MANUAL | 7510 | 2 | ||||
| 12 | SPRING-BRUSH | 23333-21001 | L28E MANUAL | 7510 | 4 | ||||
| 13 | ASSY-PINION | 23312-U6000 | L28E MANUAL | 1 | Yes | Yes | 23312-Y0700 | ||
| 13 | ASSY-PINION | 23312-Y0700 | L28E MANUAL | 7510 | 1 | ||||
| 14 | ASSY-CASE GEAR | 23318-Y0700 | L28E MANUAL | 7510 | 1 | ||||
| 15 | METAL-GEAR CASE | 23319-N3300 | L28E MANUAL | 7510 | 1 | ||||
| 16 | KIT-COVER DUST | 23470-N3300 | L28E MANUAL | 7510 | 1 | ||||
| 17 | KIT-LEVER SHIFT | 23322-U0100 | L28E MANUAL | 7510 | 1 | ||||
| 18 | SWITCH-MAGNETIC | 23343-N3300 | L28E MANUAL | 7510 | 7702 | 1 | |||
| 18 | SWITCH-MAGNETIC | 23343-N3301 | L28E MANUAL | 7703 | 1 | Yes | Yes | 23343-N3300 | |
| 19 | BOLT-THROUGH | 23340-Y0700 | L28E MANUAL | 7510 | 2 | ||||
| 20 | SET-SCREW | 23480-M0100 | L28E MANUAL | 7510 | 1 | ||||
| 21 | ASSY-BRACKET CENTER | 23383-Y0700 | L28E MANUAL | 7510 | 1 | ||||
| 22 | BEARING-CENTER | 23441-10600 | L28E MANUAL | 7510 | 1 |
