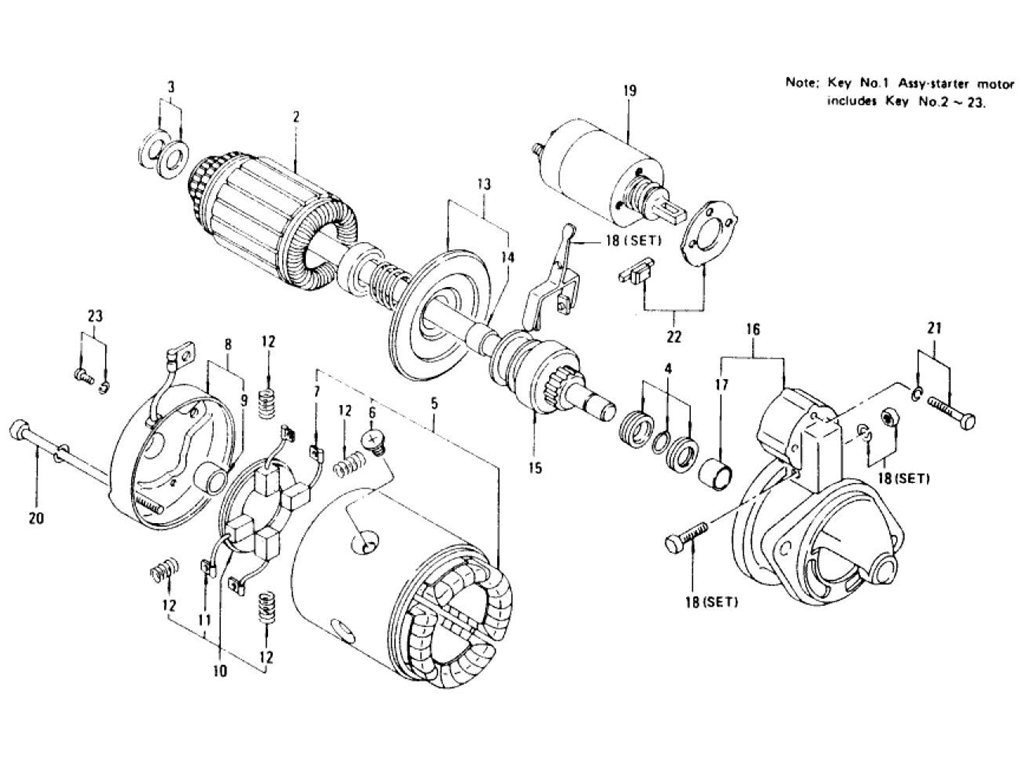

Starter Motor (For Automatic) (To Jul.-'72)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-STARTER MOTOR ( | 23300-N3300 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 2 | ASSY-ARMATURE | 23310-N3300 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 3 | SET-WASHER THRUST | 23321-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 4 | SET-STOPPER | 23465-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 5 | ASSY-COIL FIELD | 23306-N3300 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 6 | SET-SCREW | 23305-E6800 | L24 AUTOMATIC | 7207 | 7207 | 4 | |||
| 7 | BRUSH (+) | 23380-21000 | L24 AUTOMATIC | 7207 | 7207 | 2 | |||
| 8 | ASSY-COVER REAR | 23337-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 9 | METAL-REAR COVER | 23338-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 10 | ASSY-HOLDER BRUSH | 23378-21006 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 11 | BRUSH (-) | 23379-21000 | L24 AUTOMATIC | 7207 | 7207 | 2 | |||
| 12 | SPRING-BRUSH | 23333-21001 | L24 AUTOMATIC | 7207 | 7207 | 4 | |||
| 12 | SPRING-BRUSH | 23333-21001 | L24 COLD AREA | 7207 | 7207 | 4 | |||
| 13 | ASSY-BRACKET | 23383-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 14 | METAL-CENTER BRACKET | 23341-10600 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 14 | METAL-CENTER BRACKET | 23341-10600 | L24 COLD AREA | 7207 | 7207 | 1 | |||
| 15 | ASSY-PINION | 23312-N0900 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 16 | ASSY-CASE GEAR | 23318-N0900 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 17 | METAL-GEAR CASE | 23319-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 18 | SET-LEVER SHIFT | 23322-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 19 | ASSY-SWITCH MAGNETIC | 23343-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 20 | BOLT-THROUGH | 23340-N3300 | L24 AUTOMATIC | 7207 | 7207 | 2 | |||
| 21 | SCREW SD | 23344-21005 | L24 AUTOMATIC | 7207 | 7207 | 3 | |||
| 21 | SCREW SD | 23344-21005 | L24 COLD AREA | 7207 | 7207 | 3 | |||
| 22 | SET-COVER DUST | 23470-E6800 | L24 AUTOMATIC | 7207 | 7207 | 1 | |||
| 23 | SET-SCREW | 23480-M0100 | L24 AUTOMATIC | 7207 | 7207 | 1 |
