Aug.-'72 To Mar.-'77
Search Item:Key: Part Name:  Part Number:

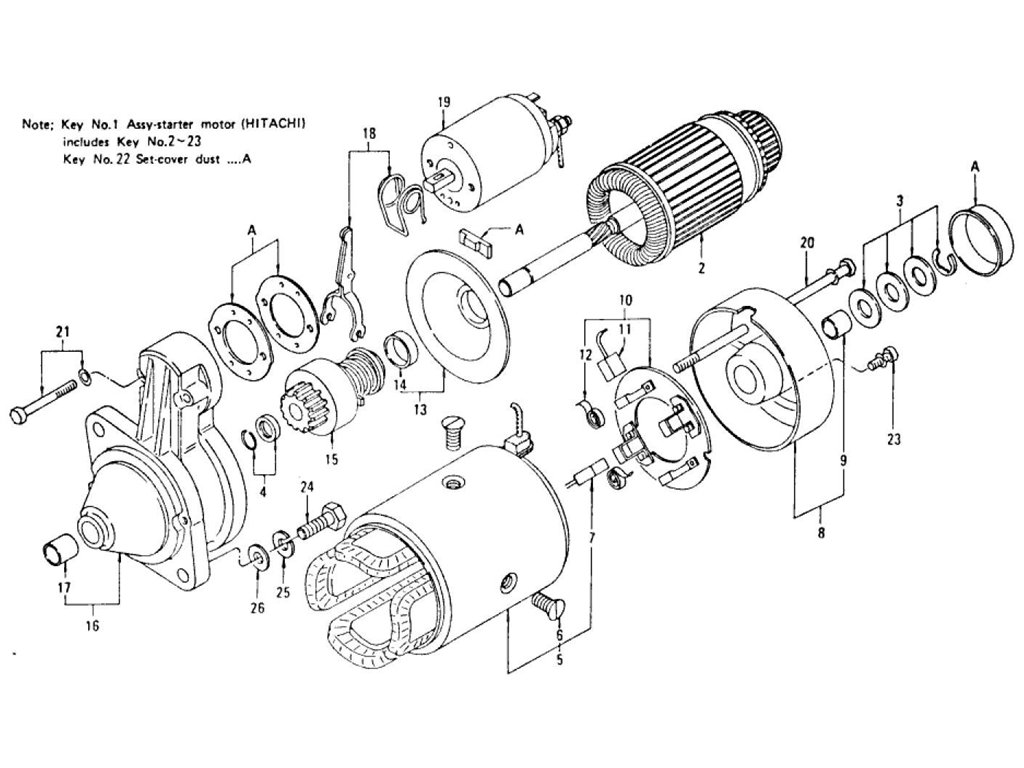

Starter Motor (For Automatic) (From Aug.-'72 To Mar.-'77)

Aug.-'72 To Mar.-'77
Parts List
KeyPart NamePart NumberModelFromToQtyNewerFormerSuperceded
  1ASSY-STARTER MOTOR (23300-N3303L24L26L28E AUTO1Yes
  1ASSY-STARTER MOTOR (23300-N3304L24L26L28E AUTO1Yes
  1ASSY-STARTER MOTOR (23300-N3301L24L26L28E AUTO720875071
  1ASSY-STARTER MOTOR (23300-N3302L24L26L28E AUTO75081Yes
  2ASSY-ARMATURE23310-N3301L24L26L28E AUTO72081
  3SET-WASHER THRUST23321-N3300L24L26L28E AUTO72081
  4SET-STOPPER PINION23465-N3300L24L26L28E AUTO72081
  5ASSY-COIL FIELD23306-N3301L24L26L28E AUTO72081
  6SET-SCREW POLE CORE23305-N3300L24L26L28E AUTO72081
  7BRUSH (+)23380-M0100L24L26L28E AUTO72082
  8ASSY-COVER REAR23337-N3300L24L26L28E AUTO72081
  9METAL-REAR COVER23338-N3300L24L26L28E AUTO72081
  10ASSY-HOLDER BRUSH23378-N3300L24L26L28E AUTO72081
  11BRUSH (-)23379-M0100L24L26L28E AUTO72082
  12SPRING-BRUSH23333-21001L24L26L28E AUTO72084
  13ASSY-BRACKET CENTER23383-N3300L24L26L28E AUTO72081
  14BEARING-CENTER23441-10600L24L26L28E AUTO72081
  15ASSY-PINION23312-U6000L24L26L28E AUTO1Yes
  15ASSY-PINION23312-N3300L24L26L28E AUTO720875071
  15ASSY-PINION23312-Y0700L24L26L28E AUTO75081No
  16ASSY-CARE GEAR23318-N3300L24L26L28E AUTO72081
  17METAL-GEAR CASE23319-N3300L24L26L28E AUTO72081
  18SET-LEVER SHIFT23322-N3300L24L26L28E AUTO72081
  19ASSY-SWITCH MAGNETIC23343-N3300L24L26L28E AUTO72081
  19ASSY-SWITCH MAGNETIC23343-N3301L24L26L28E AUTO72081Yes
  20BOLT-THOUGH23340-N3100L24L26L28E AUTO72082
  21SCREW SD23344-21005L24L26L28E AUTO72083
  22SET-COVER DUST23470-N3300L24L26L28E AUTO72081
  23SET-SCREW23480-M0100L24L26L28E AUTO72081
  24BOLT-HEX-M1008121-03528L24L26L28 AUTO2Yes
  24BOLT-HEX-M1008121-03510L24L26L28 AUTO72082
  25WASHER-LOCK08915-24010L24L26L28E AUTO72082
  26WASHER-PLAIN08915-44010L24L26L28E AUTO72082
