Search Item:Key: Part Name: Part Number:

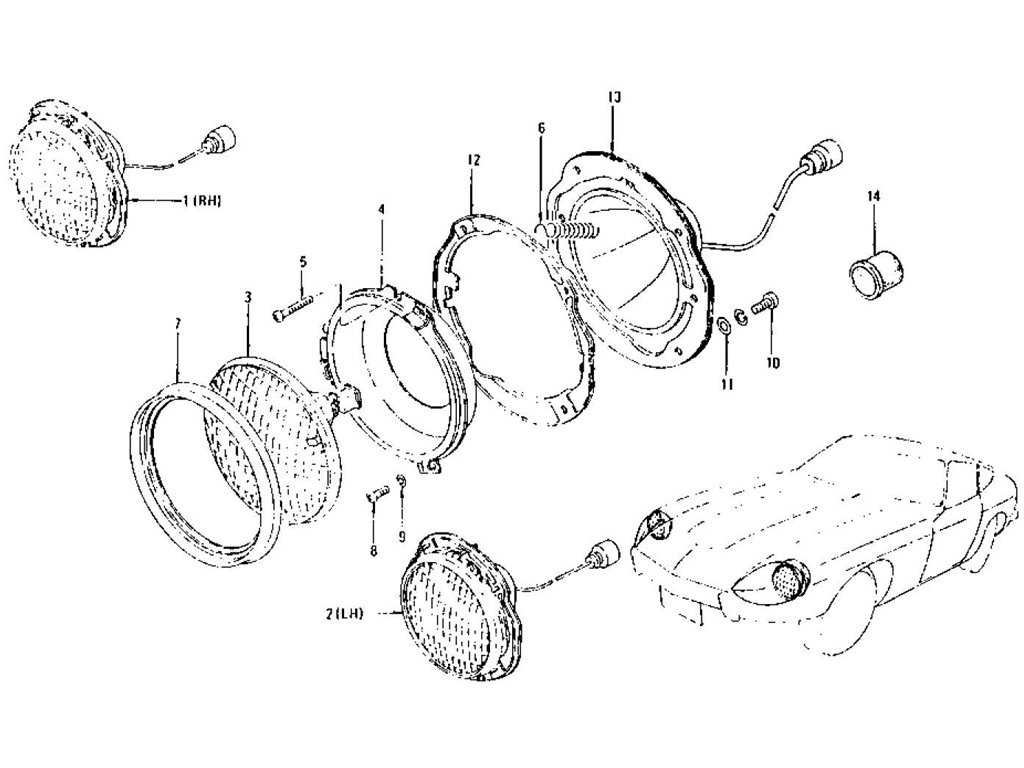

Head Lamp
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-HEAD LAMP RH | 26010-N4200 | 7409 | 1 | No | No | 26010-N3600 | ||
| 1 | ASSY-HEAD LAMP RH | 26010-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | |||
| 1 | ASSY-HEAD LAMP RH(LE | 26010-E4600 | 1 | ||||||
| 1 | ASSY-HEAD LAMP RH(WI | 26010-E4601 | 7307 | 1 | Yes | Yes | 26010-E4600 | ||
| 2 | ASSY-HEAD LAMP LH | 26060-N4200 | 7409 | 1 | No | No | 26060-N3600 | ||
| 2 | ASSY-HEAD LAMP LH | 26060-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | |||
| 2 | ASSY-HEAD LAMP LH(LE | 26060-E4600 | 1 | ||||||
| 2 | ASSY-HEAD LAMP LH(WI | 26060-E4601 | 1 | Yes | Yes | 26060-E4600 | |||
| 2 | ASSY-HEAD LAMP WITH | 26060-N4200 | 7409 | 1 | No | No | 26066-N3400 | ||
| 2 | ASSY-HEAD LAMP WITH | 26066-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 26066-E4100 |
| 3 | 02260-231K0 | 26705-89905 | 7307 | 2 | |||||
| 3 | 02260-231K0 | 26705-89905 | 2 SEATER 2+2 SEAT ER | 7308 | 7310 | 2 | |||
| 3 | 02260-132K0 | 26705-89906 | 2 SEATER 2+2 SEAT ER | 7311 | 2 | Yes | Yes | 26705-89905 | |
| 4 | BODY-SUB | 26016-04100 | 1 | ||||||
| 5 | SCREW-ADJUSTING | 26022-01301 | 4 | ||||||
| 5 | SCREW-ADJUSTING | 26022-19900 | 4 | Yes | Yes | 26022-01301 | |||
| 6 | SPRING-EXTENSION | 26024-01301 | 2 | ||||||
| 7 | RING-RETAINING | 26017-04100 | 2 | ||||||
| 7 | RING-RETAINING | 26017-18010 | 2 | Yes | Yes | 26017-04100 | |||
| 7 | RING-RETAINING | 26023-89910 | 2 | Yes | Yes | 26017-18010 | |||
| 8 | SCREW-MACHINE | 08310-40612 | 6 | ||||||
| 9 | WASHER-LOCK SPRING | 08915-13510 | 8 | ||||||
| 10 | SCREW-MACHINE | 08410-51612 | 8 | ||||||
| 10 | SCREW-PAN HEAD M5 | 01431-00053 | 7307 | 8 | |||||
| 10 | SCREW-PAN HEAD M5 | 08410-51690 | 2 SEATER 2+2 SEAT ER | 7308 | 8 | No | No | 01431-00053 | |
| 11 | WASHER-PLAIN | 08915-43510 | 2 SEATER 2+2 SEAT ER | 7308 | 8 | ||||
| 12 | PACKING | 26027-E4101 | 2 SEATER | 7308 | 2 | No | No | 26027-E4100 | |
| 12 | PACKING-SHEET LH | 26077-E4100 | 2+2 SEATER | 7308 | 2 | ||||
| 12 | PACKING-SHEET RH | 26027-E4100 | 7307 | 2 | |||||
| 13 | ASSY-BODY HEAD LAMP | 26025-E4100 | 7308 | 7408 | 1 | No | No | 26025-E4100 | |
| 13 | ASSY-BODY HEAD LAMP | 26075-E4100 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 26075-E4100 |
| 13 | ASSY-BODY HEAD LAMP | 26025-N4500 | EXC EUROPE | 7409 | 7607 | 1 | No | No | 26025-E4100 |
| 13 | ASSY-BODY HEAD LAMP | 26075-N4500 | EXC EUROPE | 7409 | 7607 | 1 | No | No | 26075-E4100 |
| 13 | ASSY-BODY HEAD LAMP | 26025-N4200 | EXC EUROPE | 7608 | 1 | Yes | Yes | 26025-N4500 | |
| 13 | ASSY-BODY HEAD LAMP | 26075-N4200 | EXC EUROPE | 7608 | 1 | Yes | Yes | 26075-N4500 | |
| 13 | ASSY-HOUSING WITH CO | 26025-E4100 | 7307 | 1 | |||||
| 13 | ASSY-HOUSING WITH CO | 26075-E4100 | 7307 | 1 | |||||
| 14 | COVER-HEAD LAMP(RUBB | 26029-E4600 | 7307 | 2 |
