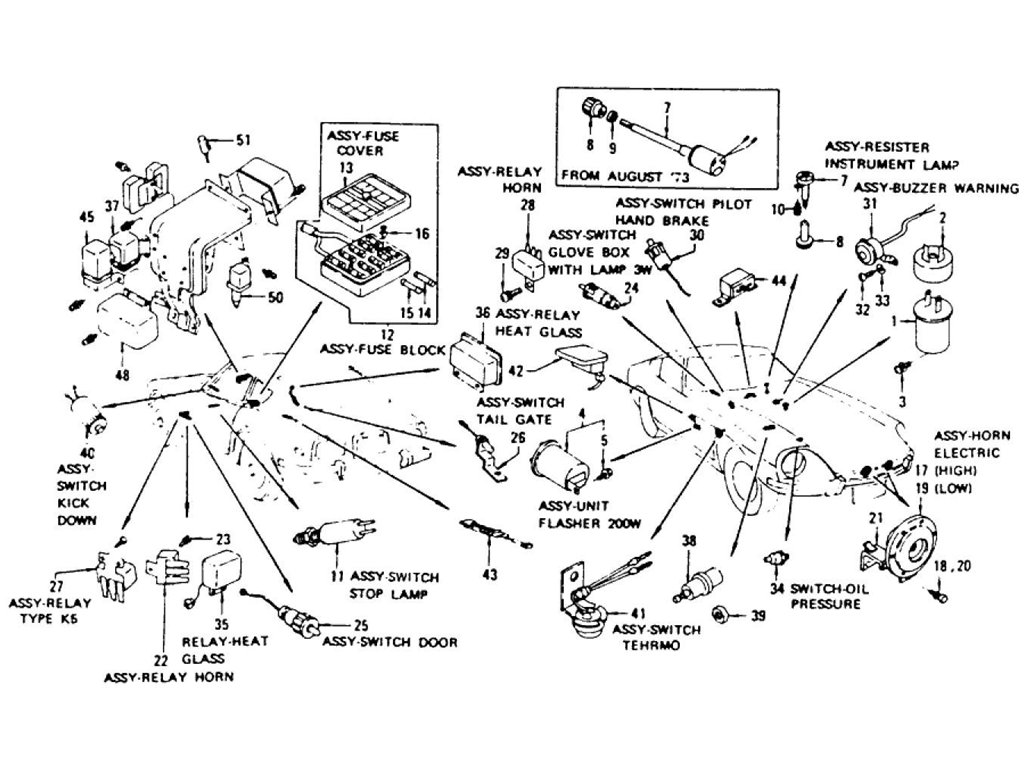

Electric Unit & Switch (1) (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY UNIT FLASHER 11 | 25520-89961 | 7106 | 1 | |||||
| 1 | ASSY UNIT FLASHER 11 | 25520-E8300 | 7107 | 1 | 25520-89961 | ||||
| 1 | ASSY-UNIT FLASHER 11 | 25520-89979 | 7207 | 7307 | 1 | Yes | Yes | 25520-E8300 | |
| 1 | ASSY-UNIT FLASHER 11 | 25520-B8060 | 7207 | 7307 | 1 | Yes | Yes | 25520-89979 | |
| 1 | ASSY-UNIT TURN SIGNA | B5520-89967 | 2 SEATER 2+2 SEAT ER | 1 | Yes | Yes | 25520-89967 | ||
| 1 | ASSY-UNIT TURN SIGNA | 25520-89977 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 25520-89979 | |
| 1 | ASSY-UNIT | 25520-89967 | 2 SEATER 2+2 SEAT ER | 1 | Yes | Yes | 25520-89977 | ||
| 2 | RELAY AUDIBLE FLASHE | 25529-89900 | 7106 | 1 | |||||
| 2 | RELAY AUDIBLE FLASHE | 25529-89903 | 7107 | 7408 | 1 | 25529-89900 | |||
| 3 | SCREW MACHIN | 08510-61612 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 08510-51414 | |
| 3 | SCREW-MACHINE WITH S | 08310-51414 | 1 | ||||||
| 4 | ASSY UNIT FLASHER 20 | 25520-E4600 | 7307 | 1 | |||||
| 4 | ASSY UNIT FLASHER 4 | 25520-89990 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 4 | ASSY UNIT FLASHER 4 | 25520-89997 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | Yes | Yes | 25520-89990 | |
| 5 | SCREW MACHINE WITH L | 08510-61612 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 6 | SCREW MACHINE WITH S | 08310-51414 | 7307 | 1 | |||||
| 7 | ASSY RESISTER INSTRU | 25950-E4600 | 1 | ||||||
| 7 | ASSY RESISTER INSTRU | 25950-E4601 | 7307 | 1 | Yes | Yes | 25950-E4600 | ||
| 7 | ASSY RESISTER INSTRU | 25950-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | No | No | 25950-E4601 |
| 8 | KNOB | 24854-E4100 | 7307 | 1 | |||||
| 8 | KNOB | 25955-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 24854-E4100 | |
| 9 | NUT | 08912-34010 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 10 | SCREW MACHINE WITH S | 08310-41012 | 2 | ||||||
| 11 | ASSY SWITCH STOP LAM | 25320-89910 | 7307 | 1 | |||||
| 11 | ASSY SWITCH STOP LAM | 25320-H1000 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 25320-89910 | |
| 12 | ASSY FUSE BLOCK | 25410-E4600 | 7012 | 1 | |||||
| 12 | ASSY FUSE BLOCK | 25410-E8800 | 7307 | 1 | Yes | Yes | 25410-E8300 | ||
| 12 | ASSY FUSE BLOCK | 25410-E8300 | 7101 | 1 | No | No | 25410-E4600 | ||
| 12 | ASSY FUSE BLOCK | 25410-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | |||
| 12 | ASSY FUSE BLOCK | 25410-N4310 | 2 SEATER 2+2 SEAT ER | 7409 | 1 | ||||
| 13 | ASSY COVER FUSE BLOC | 25420-E4600 | 7012 | 1 | |||||
| 13 | ASSY COVER FUSE BLOC | 25420-E8800 | 7307 | 1 | Yes | Yes | 25420-E4601 | ||
| 13 | ASSY COVER FUSE BLOC | 25420-E4601 | 7101 | 1 | No | No | 25420-E4600 | ||
| 13 | ASSY COVER FUSE BLOC | 25420-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | |||
| 13 | ASSY-COVER FUSE BLOC | 25420-N4310 | 2 SEATER 2+2 SEAT ER | 7409 | 1 | ||||
| 14 | FUSE-10A | 25461-89901 | 5 | ||||||
| 14 | FUSE-10A | 08941-11000 | OP | 5 | Yes | Yes | 25461-89901 | ||
| 15 | FUSE-20A | 08941-12000 | 7 | Yes | Yes | 25462-89901 | |||
| 15 | FUSE-20A | 25462-89901 | 7 | ||||||
| 16 | SCREW | 08310-62514 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | ||||
| 16 | SCREW-MACHINE WITH S | 08310-52514 | 7307 | 2 | |||||
| 17 | ASSY-HORN ELECTRIC H | 26310-E4100 | 7307 | 1 | |||||
| 17 | ASSY-HORN ELECTRIC H | 26310-N3601 | 7308 | 7408 | 1 | Yes | Yes | 26310-E4100 | |
| 17 | ASSY-HORN ELECTRIC H | 26310-N4500 | 7409 | 1 | Yes | Yes | 26310-N3400 | ||
| 17 | KIT-CITY COUNTRY HOR | 26313-N3600 | NEWYORK | 7308 | 7407 | 1 | |||
| 18 | BOLT-HEX WITH LOCK W | 08366-82514 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 08110-82562 | |
| 18 | BOLT-HEX WITH SPRING | 08110-82562 | 7307 | 2 | |||||
| 19 | ASSY-HORN ELECTRIC L | 26330-E4100 | 7307 | 1 | |||||
| 19 | ASSY-HORN ELECTRIC L | 26330-N3601 | 7308 | 7408 | 1 | Yes | Yes | 26330-E4100 | |
| 19 | ASSY-HORN ELECTRIC L | 26330-N4500 | 7409 | 1 | No | No | 26330-N3400 | ||
| 20 | BOLT-HEX WITH LOCK W | 08366-82514 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 08110-82562 | |
| 20 | BOLT-HEX WITH SPRING | 08110-82562 | 7307 | 2 | |||||
| 21 | ASSY-BRACKET ELECTRI | 26315-E7200 | 7307 | 2 | |||||
| 22 | ASSY-RELAY HORN | 26320-14800 | 7408 | 1 | |||||
| 22 | ASSY-RELAY HORN | 26320-N4500 | 7409 | 1 | No | No | 26320-14800 | ||
| 23 | SCREW-MACHINE WITH S | 08310-51414 | 1 | ||||||
| 24 | ASSY-SWITCH GLOVE BO | 25720-73000 | 7307 | 1 | |||||
| 24 | ASSY-SWITCH GLOVE BO | 25720-P0101 | 2 SEATER | 7308 | 1 | ||||
| 25 | ASSY-SWITCH DOOR FOR | 25360-89901 | 1 | ||||||
| 25 | ASSY-SWITCH DOOR FOR | 25360-89910 | 7112 | 1 | |||||
| 25 | ASSY-SWITCH DOOR FOR | 25360-E8800 | 7201 | 1 | No | No | 25360-89910 | ||
| 26 | ASSY-SWITCH TAIL GAT | 25800-E4100 | 1 | ||||||
| 26 | ASSY-SWITCH TAIL GAT | 36011-89901 | 1 | Yes | Yes | 25800-E4100 | |||
| 27 | ASSY-RELAY TYPE K5 ( | 25230-89905 | AUTOMATIC | 1 | |||||
| 28 | ASSY-RELAY HORN | 08310-51214 | AUTOMATIC | 1 | |||||
| 29 | SCREW-TAPPING | 08510-51010 | AUTOMATIC | 2 | |||||
| 29 | SCREW-TAPPING | 08510-51012 | AUTOMATIC | 2 | Yes | Yes | 08510-51010 | ||
| 30 | ASSY-SWITCH PILOT HA | 36011-89900 | 1 | ||||||
| 30 | ASSY-SWITCH PILOT HA | 36011-89901 | 1 | Yes | Yes | 36011-89900 | |||
| 31 | ASSY-BUZZER WARNING | 24814-68200 | 1 | ||||||
| 31 | ASSY-BUZZER WARNING | 24814-E4600 | 1 | Yes | Yes | 24814-68200 | |||
| 31 | ASSY-BUZZER WARNING | 24814-E4601 | 7112 | 1 | Yes | Yes | 24814-E4600 | ||
| 31 | ASSY-BUZZER WARNING | 25450-E8800 | 7201 | 7307 | 1 | No | No | 24814-E4601 | |
| 31 | ASSY-BUZZER WARNING | 26350-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 25450-E8800 | |
| 32 | SCREW-MACHINE M3 | 08513-30812 | 7307 | 2 | |||||
| 32 | SCREW-MACHINE WITH W | 08360-51226 | 2+2 SEATER | 1 | |||||
| 33 | WASHER-PLAIN | 08915-43310 | 7307 | 2 | |||||
| 34 | SWITCH-OIL PRESSURE | 25070-89900 | 1 | Yes | Yes | 25070-89910 | |||
| 34 | SWITCH-OIL PRESSURE | 25070-89901 | 1 | Yes | Yes | 25070-89900 | |||
| 34 | SWITCH-OIL PRESSURE | 25070-89910 | 1 | ||||||
| 35 | RELAY FOR HEAT GLASS | 25230-E4100 | 1 | ||||||
| 36 | ASSY-RELAY HEAT GLAS | 25230-N3000 | 1 | ||||||
| 37 | INTERLOCK-EMERGENCY | 25232-89903 | 7409 | 1 | |||||
| 37 | INTERLOCK-EMERGENCY | 25232-89900 | 2 SEATER | 7408 | 1 | ||||
| 38 | GAUGE-TEMP | 25080-89900 | 1 | ||||||
| 39 | NUT | 25251-37700 | 2 SEATER | 7308 | 1 | ||||
| 39 | NUT-SWITCH TEMPERATU | 25251-37700 | 1 | ||||||
| 40 | ASSY-SWITCH KICK DOW | 25390-20300 | AUTOMATIC | 7307 | 1 | ||||
| 41 | ASSY-SWITCH THERMO ( | 22110-E8000 | AUTOMATIC | 1 | |||||
| 41 | ASSY-SWITCH THERMO ( | 22110-E8001 | AUTOMATIC | 7109 | 7307 | 1 | Yes | Yes | 22110-E8000 |
| 42 | ASSY-SWITCH WARNING | 25460-E8802 | 7307 | 1 | |||||
| 42 | ASSY-SWITCH WARNING | 25460-E8800 | OP | 7307 | 1 | ||||
| 42 | ASSY-SWITCH WARNING | 25460-E8801 | OP | 7307 | 1 | ||||
| 43 | ASSY-SENSOR | 25460-N3601 | 2 SEATER 2+2 SEAT ER | 7308 | 7403 | 2 | |||
| 43 | ASSY-SENSOR | 25460-N3602 | 2 SEATER 2+2 SEAT ER | 7404 | 2 | Yes | Yes | 25460-N3601 | |
| 44 | ASSY-AMP INTERMITTEN | 28820-R1401 | 7207 | 7210 | 1 | ||||
| 44 | ASSY-AMP INTERMITTEN | 28820-N3300 | 2 SEATER 2+2 SEAT ER | 7211 | 1 | Yes | Yes | 28820-R1401 | |
| 45 | BOX-FUSIBLE LINK | 24020-N3700 | 7308 | 1 | |||||
| 46 | FUSIBLE LINK-0.5 | 24161-28500 | 7308 | 1 | |||||
| 47 | FUSIBLE LINK-1.25 | 24161-A0100 | 7308 | 1 | |||||
| 48 | ASSY-SHUNT | 24845-N3401 | 7409 | 1 | |||||
| 49 | FUSE-2A | 01981-00023 | 7409 | 2 | |||||
| 50 | ASSY-RELAY AIR CON | 25230-N4205 | 7409 | 1 | |||||
| 51 | CONDENSOR | 27984-B0700 | 7409 | 1 |
