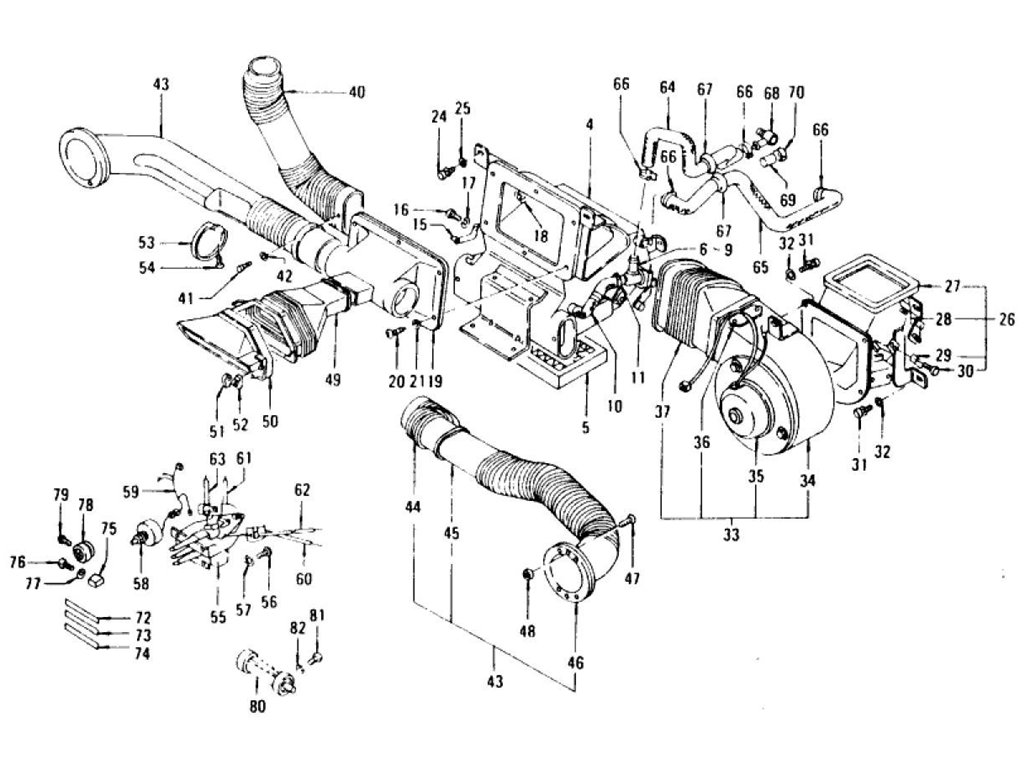

Car Heater (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KIT-HEATER | 27100-E8825 | 1 | ||||||
| 2 | COMP-UNIT | 27105-E8801 | 1 | ||||||
| 3 | ASSY-UNIT | 27110-E8800 | 1 | ||||||
| 4 | ASSY-CASE | 27120-E8800 | 1 | ||||||
| 5 | ASSY-CORE | 27115-E4400 | 1 | ||||||
| 6 | ASSY-COCK HEATER | 27116-E4400 | 1 | ||||||
| 7 | UNIT-COCK | 27117-E4400 | 1 | ||||||
| 8 | ADJUSTER | 27151-E4400 | 1 | ||||||
| 9 | SCREW | 08310-40812 | 1 | ||||||
| 10 | HOSE-HEATER | 27118-E4400 | 1 | ||||||
| 11 | CLAMP-HOSE | 08723-12200 | 2 | ||||||
| 12 | CLAMP-CABLE | 27152-E4400 | 2 | ||||||
| 13 | SCREW | 08310-41012 | 2 | ||||||
| 14 | SCREW | 08310-40812 | 1 | ||||||
| 15 | LEVER-VENTILATOR VAL | 27137-E8800 | 1 | ||||||
| 16 | SCREW | 08310-41012 | 1 | ||||||
| 17 | WASHER-SPRING | 08915-13410 | 1 | ||||||
| 18 | SPRING-VALVE | 27053-E4400 | 1 | ||||||
| 19 | ASSY-VENTILATION | 27170-E4400 | 1 | ||||||
| 20 | SCREW | 08310-51012 | 6 | ||||||
| 21 | WASHER-PLAIN | 08915-43510 | 6 | ||||||
| 22 | BRACKET-CABLE CLAMP | 27172-E4400 | 1 | ||||||
| 23 | SCREW | 08310-42012 | 1 | ||||||
| 24 | SCREW | 08360-61414 | 7206 | 6 | |||||
| 24 | SCREW & WASHER | 08363-61226 | 7207 | 6 | Yes | Yes | 08360-61414 | ||
| 25 | WASHER-PLAIN | 08915-43610 | 6 | ||||||
| 26 | COMP-DUCT | 27160-E8800 | 1 | ||||||
| 27 | ASSY-DUCT | 27015-E8800 | 1 | ||||||
| 28 | SPRING-VALVE | 27054-E8700 | 1 | ||||||
| 29 | CLAMP-CABLE | 27152-E4400 | 7206 | 1 | |||||
| 29 | CLAMP-CABLE | 27156-S0100 | 7207 | 1 | No | No | 27152-E4400 | ||
| 30 | SCREW | 08310-42012 | 7206 | 1 | |||||
| 31 | SCREW & WASHER | 08360-61214 | 3 | ||||||
| 32 | WASHER-PLAIN | 08915-43610 | 3 | ||||||
| 33 | ASSY-BLOWER | 27060-E4405 | 1 | ||||||
| 34 | ASSY-CASE | 27065-E4400 | 1 | ||||||
| 35 | ASSY-MOTOR & FAN | 27070-E4405 | 1 | ||||||
| 36 | ASSY-RESISTANCE | 27077-E4405 | 1 | ||||||
| 37 | DUCT-ADAPTER | 27066-E4401 | 1 | ||||||
| 38 | SCREW | 08360-61414 | 7206 | 4 | |||||
| 38 | SCREW & WASHER | 08363-61226 | 7207 | 4 | |||||
| 39 | WASHER-PLAIN | 08915-43610 | 7206 | 4 | |||||
| 40 | DUCT-DEFROSTER | 27161-E4401 | 2 | ||||||
| 41 | SCREW | 08510-71012 | 2 | ||||||
| 42 | WASHER-PLAIN | 08915-43710 | 2 | ||||||
| 43 | ASSY-DUCT | 27165-E4402 | 2 | ||||||
| 44 | DUCT-VENTILATION A | 27167-E4401 | 1 | ||||||
| 45 | DUCT-VENTLATION B | 27168-E4400 | 1 | ||||||
| 46 | DUCT-VENTLATION C | 27169-E4400 | 1 | ||||||
| 47 | SCREW | 08510-41212 | 6 | ||||||
| 48 | NUT-SPRING | 08963-10410 | 6 | ||||||
| 49 | DUCT-CENTER | 27171-E4400 | 1 | ||||||
| 50 | DUCT-CENTER FRONT | 27671-E4400 | 7206 | 1 | |||||
| 50 | DUCT-CENTER FRONT | 27671-N3300 | 7207 | 1 | No | No | 27671-E4400 | ||
| 51 | SPRING-CENTER GRILLE | 27672-E4400 | 2 | ||||||
| 52 | BEARING-CENTER | 27673-E4400 | 2 | ||||||
| 53 | CLAMP-VENTILATOR DUC | 27661-E4401 | 3 | ||||||
| 54 | SCREW | 08310-40812 | 2 | ||||||
| 55 | ASSY-CONTROL | 27130-E8800 | 1 | ||||||
| 55 | ASSY-CONTROL | 27130-N3300 | 7207 | 1 | No | No | 27130-E8800 | ||
| 56 | SCREW | 08310-40612 | 4 | ||||||
| 57 | WASHER-SPRING | 08915-13410 | 4 | ||||||
| 58 | ASSY-SWITCH | 27140-E4400 | 1 | ||||||
| 58 | ASSY-SWITCH | 27140-N3301 | 7207 | 1 | No | No | 27140-E4400 | ||
| 59 | ASSY-WIRE A | 27155-E4400 | 1 | ||||||
| 60 | ASSY-CABLE (DEF-ROOM | 27141-E8800 | 1 | ||||||
| 61 | ASSY-CABLE (HEAT-COO | 27142-E8800 | 1 | ||||||
| 62 | ASSY-CABLE (IN-OUT) | 27143-E8800 | 7206 | 1 | |||||
| 62 | ASSY-CABLE (IN-OUT) | 27143-E8802 | 7207 | 1 | Yes | Yes | 27143-E8800 | ||
| 63 | ASSY-CABLE (VENT-HEA | 27144-E8800 | 1 | ||||||
| 64 | HOSE-WATER INLET | 27181-E4401 | 7206 | 1 | |||||
| 64 | HOSE-WATER INLET | 27181-N3000 | 7207 | 1 | Yes | Yes | 27181-E4401 | ||
| 65 | HOSE-WATER OUTLET | 27185-E4401 | 1 | ||||||
| 66 | CLAMP-HOSE | 08723-12200 | 4 | ||||||
| 67 | GROMMET-RUBBER | 27243-28500 | 2 | ||||||
| 68 | CONNECTOR-WATER | 27195-E4400 | 1 | ||||||
| 69 | CAP-CONNECTOR | 14058-25500 | 1 | ||||||
| 70 | CLAMP-HOSE | 08723-12400 | 1 | ||||||
| 71 | CLAMP-HOSE | 27191-E8206 | AUTOMATIC | 1 | |||||
| 72 | LABEL-AIR CONTROL | 68841-E4600 | 1 | ||||||
| 73 | LABEL-TEMP CONTROL | 68843-E4600 | 1 | ||||||
| 74 | LABEL-DEF CONTROL | 68845-E4600 | 1 | ||||||
| 75 | KNOB-HEATER CONTROL | 68847-E4600 | 7206 | 3 | |||||
| 75 | KNOB-HEATER CONTROL | 68847-N3000 | 7207 | 3 | Yes | Yes | 68847-E4600 | ||
| 76 | SCREW | 08330-31012 | 3 | ||||||
| 77 | WASHER-TOOTH | 08916-43310 | 3 | ||||||
| 78 | KNOB-BLOWER CONTROL | 68848-E4600 | 1 | ||||||
| 78 | KNOB-BLOWER CONTROL | 68848-N3301 | 7207 | 1 | No | No | 68848-E4600 | ||
| 79 | SCREW | 25169-89903 | 1 | ||||||
| 80 | GRILLE-AIR OUTLET CE | 68834-E8200 | 1 | ||||||
| 81 | SCREW | 01421-00083 | 4 | ||||||
| 82 | WASHER-SPRING | 08915-13410 | 4 |
