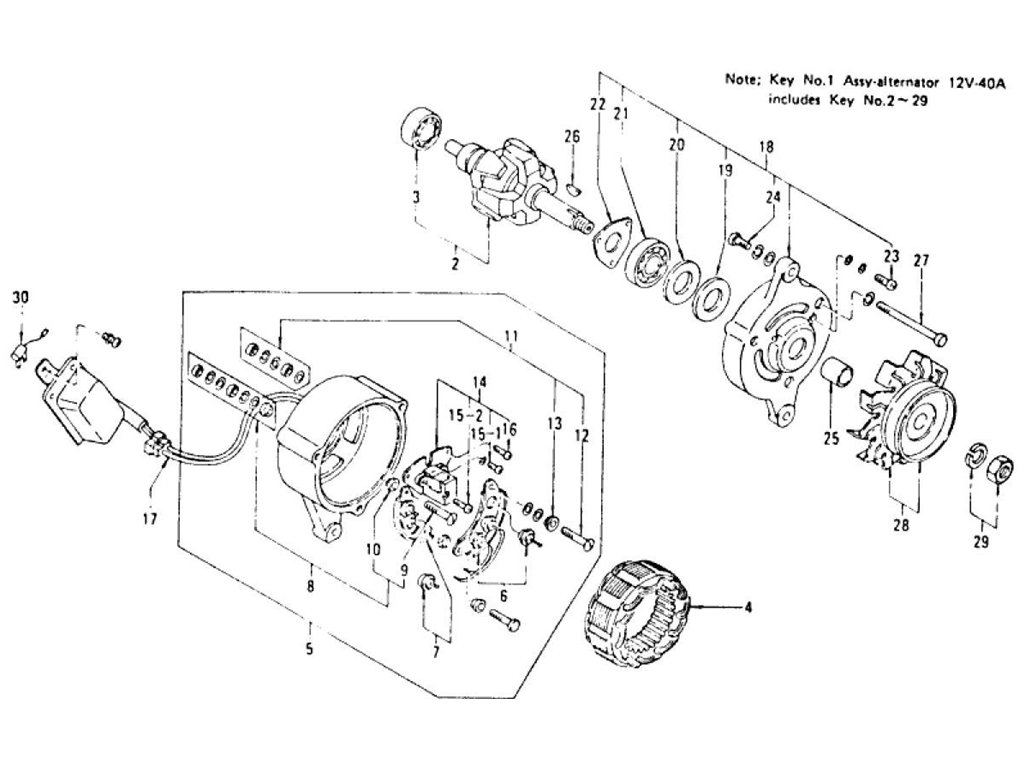

Alternator (12V-40A) Hitachi (To Aug.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-ALTERNATOR 12V- | 23100-A4800 | L24 | 7108 | 1 | ||||
| 2 | ASSY-ROTOR | 23108-21600 | L24 | 7108 | 1 | ||||
| 3 | BEARING--BALL | 23120-21000 | L24 | 7108 | 1 | ||||
| 4 | ASSY-STATOR | 23102-21600 | L24 | 7108 | 1 | ||||
| 5 | ASSY-COVER REAR | 23127-A4800 | L24 | 7108 | 1 | ||||
| 6 | ASSY-DIODE SET + | 23230-21600 | L24 | 7108 | 1 | ||||
| 7 | ASSY-DIODE SET - | 23230-21601 | L24 | 7108 | 1 | ||||
| 8 | ASSY-TERMINAL A | 23156-18005 | L24 | 7108 | 1 | ||||
| 9 | BOLT-TERMINAL | 23139-18005 | L24 | 7108 | 1 | ||||
| 10 | BUSH-INSULATOR | 23160-14800 | L24 | 7108 | 2 | ||||
| 11 | ASSY-TERMINAL N | 23158-21005 | L24 | 7108 | 1 | ||||
| 12 | BOLT-TERMINAL | 23139-21605 | L24 | 7108 | 1 | ||||
| 13 | BUSH-INSULATOR | 23160-14800 | L24 | 7108 | 1 | ||||
| 14 | ASSY-BRUSH | 23135-21605 | L24 | 7108 | 1 | ||||
| 15 | SCREW- M4 | 23147-21005 | L24 | 7108 | 1 | ||||
| 15 | SCREW- M4 | 23184-21005 | L24 | 7108 | 1 | ||||
| 16 | SCREW M5 BRUSH FIXIN | 17968-73805 | L24 | 7108 | 2 | ||||
| 17 | ASSY-WIRE LEAD | 23136-A4800 | L24 | 7108 | 1 | ||||
| 18 | ASSY-COVER FRONT | 23118-21605 | L24 | 7108 | 1 | ||||
| 19 | PACKING | 23122-21000 | L24 | 7108 | 1 | ||||
| 20 | RETAINER | 23121-21600 | L24 | 7108 | 1 | ||||
| 21 | BEARING BALL | 23120-21600 | L24 | 7108 | 1 | ||||
| 22 | RETAINER-BEARING | 23123-21605 | L24 | 7108 | 1 | ||||
| 23 | SCREWE M4 | 23148-21605 | L24 | 7108 | 3 | ||||
| 24 | BOLT-SET | 23164-H0100 | L24 | 7108 | 1 | ||||
| 25 | SPACER | 23110-14800 | L24 | 7108 | 1 | ||||
| 26 | KEY | 23195-30000 | L24 | 7108 | 1 | ||||
| 27 | BOLT-THROUGH | 23131-21605 | L24 | 7108 | 3 | ||||
| 28 | ASSY-PULLEY | 23150-21600 | L24 | 7108 | 1 | ||||
| 29 | ASSY-NUT PULLEY | 23153-21000 | L24 | 7108 | 1 | ||||
| 30 | CONDENSER-RODIO (ALT | 27984-B0701 | L24 | 7108 | 1 |
