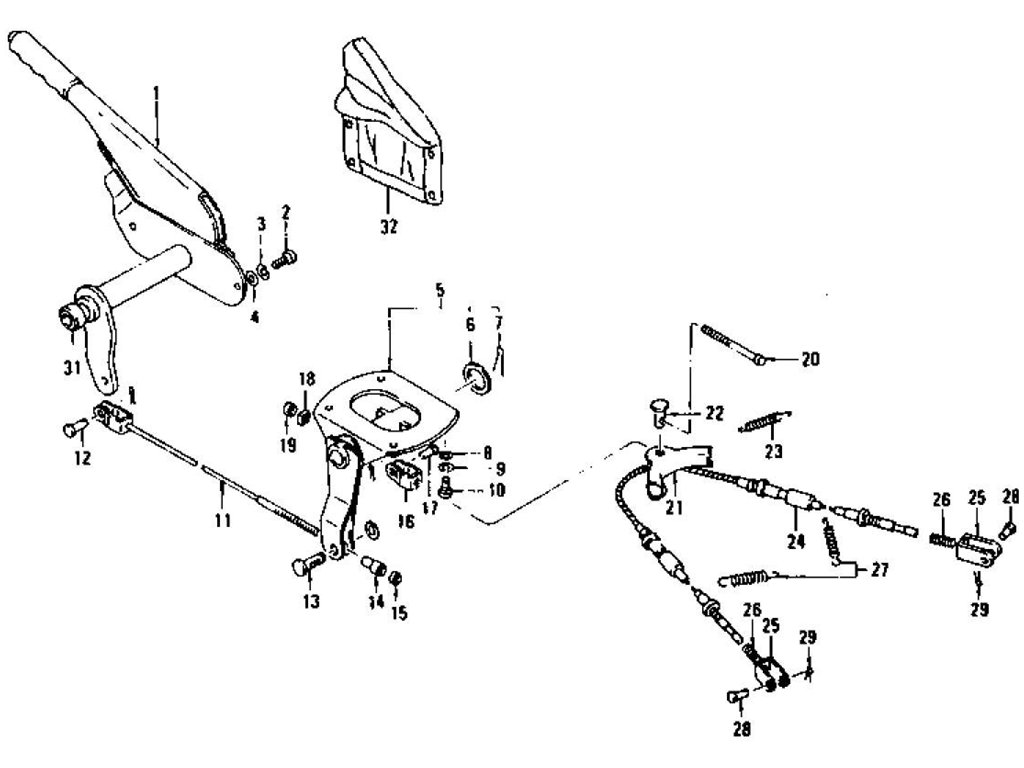

Hand Brake & Hand Brake Cable
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-HAND BRAKE CONT | 36010-E4101 | 1 | ||||||
| 1 | ASSY-HEAD BRAKE CONT | 36010-E4102 | 7408 | 1 | Yes | Yes | 36010-E4101 | ||
| 1 | ASSY-HEAD BRAKE CONT | 36010-E4103 | 7408 | 1 | Yes | Yes | 36010-E4102 | ||
| 1 | ASSY-HEAD BRAKE CONT | 36010-N4500 | 7409 | 1 | Yes | Yes | 36010-E4102 | ||
| 2 | BOLT-HEX | 08130-82010 | 7307 | 2 | |||||
| 2 | BOLT-HEX WITH WASHER | 08120-82533 | 2 SEATER | 7308 | 2 | ||||
| 3 | WASHER-SPRING | 08915-23810 | 2 | ||||||
| 4 | WASHER-PLAIN | 08915-43810 | 2 | ||||||
| 5 | ASSY-CENTER ARM HAND | 36210-E4102 | 7307 | 1 | |||||
| 5 | ASSY-CENTER ARM HAND | 36210-N4600 | 7608 | 1 | No | No | 36210-N4500 | ||
| 5 | ASSY-CENTER ARM HAND | 36210-N3401 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 36210-E4102 |
| 5 | ASSY-CENTER ARM HAND | 36210-N4500 | 2 SEATER 2+2 SEAT ER | 7409 | 7607 | 1 | No | No | 36210-N3401 |
| 6 | WASHER-HAND BRAKE SH | 30693-58000 | 1 | ||||||
| 7 | PIN-COTTER | 00921-23010 | 7307 | 1 | |||||
| 7 | PIN-COTTER | 00921-23000 | 2 SEATER | 7308 | 1 | No | No | 00921-23010 | |
| 8 | WSHER-PLAIN | 08915-53610 | 4 | ||||||
| 9 | WASHER-SPRING | 08915-23810 | 4 | ||||||
| 10 | BOLT-HEX | 08110-61810 | 7307 | 4 | |||||
| 10 | BOLT-HEX WITH SPRING | 08120-61633 | 2 SEATER | 7308 | 4 | No | No | 08110-61810 | |
| 11 | ASSY-ROD HAND BRAKE | 36541-E4101 | 7408 | 1 | |||||
| 11 | ASSY-ROD HAND BRAKE | 36541-N3700 | 2+2 SEATER | 7310 | 7408 | 1 | |||
| 11 | ASSY-ROD HAND BRAKE | 36541-N4521 | 2+2 SEATER | 7409 | 1 | No | No | 36541-N3700 | |
| 11 | ASSY-RODL HAND BRAKE | 36541-N4501 | 2 SEATER | 7409 | 1 | No | No | 36541-E4101 | |
| 12 | PIN-CLEVIS | 00840-81800 | 7307 | 1 | |||||
| 12 | PIN-CLEVIS | 00840-81810 | 2 SEATER | 7308 | 1 | No | No | 00840-81800 | |
| 13 | TRUNION-PIN BRAKE CA | 30676-B0700 | OP | 1 | Yes | Yes | 36408-36700 | ||
| 13 | TRUNNION-PIN BRAKE C | 36408-36700 | 1 | ||||||
| 13 | TRUNNION-PIN BRAKE C | 36425-04100 | 7112 | 1 | Yes | Yes | 36408-36700 | ||
| 13 | TRUNNION-PIN BRAKE C | 36425-E8700 | 7201 | 7307 | 1 | Yes | Yes | 36425-04100 | |
| 13 | TRUNNION-PIN BRAKE C | 36425-N3401 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 36425-E8700 | |
| 14 | NUT-ADJUST HAND BRAK | 36437-18000 | 1 | Yes | Yes | 36437-21000 | |||
| 14 | NUT-ADJUST HAND BRAK | 36437-21000 | 1 | ||||||
| 15 | NUT-HEX | 08911-10610 | 1 | ||||||
| 16 | ASSY-CLEVIS HAND BRA | 36545-E4100 | 1 | ||||||
| 16 | ASSY-CLEVIS HAND BRA | 36546-E4100 | 7307 | 1 | Yes | Yes | 36545-E4100 | ||
| 16 | ASSY-CLEVIS HAND BRA | 36546-N4600 | 7608 | 1 | No | No | 36546-N4500 | ||
| 16 | ASSY-CLEVIS HAND BRA | 36546-N3401 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 36546-E4100 |
| 16 | ASSY-CLEVIS HAND BRA | 36546-N4500 | 2 SEATER 2+2 SEAT ER | 7409 | 7609 | 1 | No | No | 36546-N3401 |
| 17 | PIN-CLEVIS | 00840-81800 | 7307 | 1 | |||||
| 17 | PIN-CLEVIS | 00840-81810 | 7308 | 1 | No | No | 00840-81800 | ||
| 18 | NUT-SQUARE | 08913-10610 | 1 | ||||||
| 19 | NUT-HEX | 08911-10610 | 1 | ||||||
| 20 | BOLT-HAND BRAKE | 36217-E4100 | 7607 | 1 | |||||
| 21 | EQUALIZER-HAND BRAKE | 36518-E4100 | 1 | ||||||
| 22 | TRUNNION-PIN BRAKE C | 30676-B0700 | 1 | Yes | Yes | 36408-36700 | |||
| 22 | TRUNNION-PIN BRAKE C | 36408-36700 | 1 | ||||||
| 22 | TRUNNION-PIN BRAKE C | 36519-E4100 | 1 | Yes | Yes | 36408-36700 | |||
| 23 | SPRING-RETURN | 36515-E4100 | 1 | ||||||
| 24 | ASSY-CABLE HAND BRAK | 36543-E4100 | 1 | ||||||
| 24 | ASSY-CABLE HAND BRAK | 36543-E4101 | 7206 | 1 | Yes | Yes | 36543-E4100 | ||
| 24 | ASSY-CABLE HAND BRAK | 36543-N3000 | 7207 | 7307 | 1 | Yes | Yes | 36543-E4101 | |
| 24 | ASSY-CABLE HAND BRAK | 36543-N4600 | 7608 | 1 | No | No | 36543-N4502 | ||
| 24 | ASSY-CABLE HAND BRAK | 36543-N4601 | 7712 | 1 | Yes | Yes | 36543-N4600 | ||
| 24 | ASSY-CABLE HAND BRAK | 36543-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 36543-N3000 |
| 24 | ASSY-CABLE HAND BRAK | 36543-N4502 | 2 SEATER 2+2 SEAT ER | 7409 | 7607 | 1 | No | No | 36543-N3400 |
| 24 | CLEVICE HAND BRAKE C | 36544-N4600 | 7712 | 2 | |||||
| 25 | CLEVIS-HAND BRAKE | 36402-F0200 | 2 | Yes | Yes | 36532-E4100 | |||
| 25 | CLEVIS-HAND BRAKE | 36532-E4100 | 2 | ||||||
| 26 | SPRING-RETURN REAR C | 36547-E4102 | 2 | ||||||
| 27 | SPRING-REAR CABLE HA | 36516-E4101 | 2 | ||||||
| 27 | SPRING-REAR CABLE HA | 36516-E4102 | 7206 | 2 | Yes | Yes | 36516-E4101 | ||
| 27 | SPRING-REAR CABLE HA | 36516-N3000 | 7207 | 7307 | 2 | Yes | Yes | 36516-E4102 | |
| 27 | SPRING-REAR CABLE HA | 36516-N3402 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 2 | No | No | 36516-N3000 |
| 27 | SPRING-REAR CABLE HA | 36516-N4500 | 2 SEATER 2+2 SEAT ER | 7409 | 2 | No | No | 36516-N3402 | |
| 27 | SPRING-REAR CABLE HA | 36516-N4501 | 2 SEATER 2+2 SEAT ER | 7409 | 2 | Yes | Yes | 36516-N4500 | |
| 28 | PIN-CLEVIS | 00840-81610 | 2 | ||||||
| 29 | PIN-COTTER | 00921-21810 | 2 | ||||||
| 30 | RATAINER-HAND BRAKE | 36406-E4100 | 7307 | 4 | Yes | Yes | 36406-32200 | ||
| 30 | RETAINER-HAND BRAKE | 36406-32200 | 4 | ||||||
| 30 | RETAINER-HAND BRAKE | 36406-76500 | 4 | Yes | Yes | 36406-32200 | |||
| 30 | RETAINER-HAND BRAKE | 36406-P0100 | 2 SEATER 2+2 SEAT ER | 7308 | 4 | No | No | 36406-E4100 | |
| 31 | BOOT-HAND BRAKE LEVE | 36436-N3400 | 2 SEATER | 7308 | 1 | ||||
| 31 | BOOT-HAND BRAKE LEVE | 36463-E4100 | 2+2 SEATER | 7310 | 1 | Yes | Yes | 36436-N3400 | |
| 32 | COVER-HAND BRAKE LEV | 74980-E4101 | 1 | ||||||
| 32 | COVER-HAND BRAKE LEV | 74980-E8700 | 1 | Yes | Yes | 74980-E4101 |
