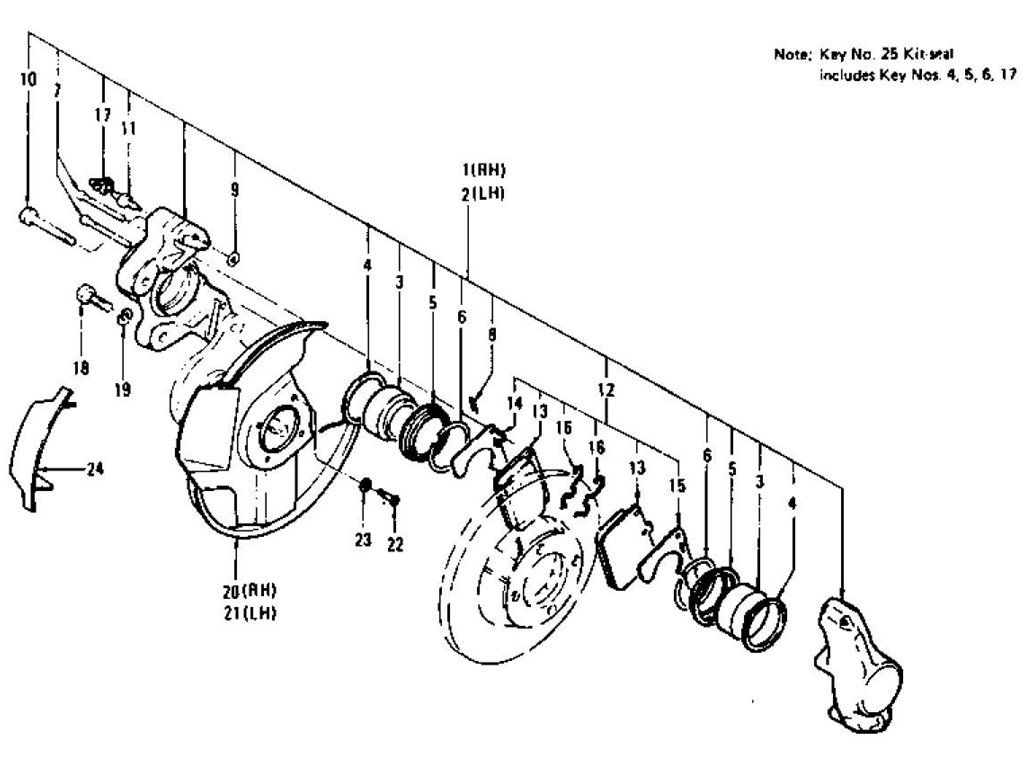

Front Brake (Disc Brake)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CALIPER FRONT B | 41000-E4100 | 7209 | 1 | |||||
| 1 | ASSY-CALIPER FRONT B | 41000-N7600 | 1 | Yes | Yes | 41000-N3001 | |||
| 1 | ASSY-CALIPER FRONT B | 41000-N3001 | 7310 | 1 | Yes | Yes | 41000-E4100 | ||
| 2 | ASSY-CALIPER FRONT B | 41010-E4100 | 7209 | 1 | |||||
| 2 | ASSY-CALIPER FRONT B | 41010-N7600 | 1 | Yes | Yes | 41010-N3001 | |||
| 2 | ASSY-CALIPER FRONT B | 41010-N3001 | 7210 | 7309 | 1 | Yes | Yes | 41010-E4100 | |
| 3 | PISTON | 41120-E4100 | 4 | ||||||
| 3 | PISTON | 41122-A0100 | 4 | Yes | Yes | 41120-E4100 | |||
| 4 | SEAL-PISTON | 41124-A0100 | 4 | Yes | Yes | 41124-E4100 | |||
| 4 | SEAL-PISTON | 41124-E4100 | 4 | ||||||
| 5 | DUST-SEAL | 41127-A0100 | 4 | Yes | Yes | 41127-E4100 | |||
| 5 | DUST-SEAL | 41127-E4100 | 4 | ||||||
| 6 | RETANING-RING | 41135-A0100 | 4 | Yes | Yes | 41135-E4100 | |||
| 6 | RETANING-RING | 41135-E4100 | 4 | ||||||
| 7 | ASSY-PIN | 41117-E4100 | 4 | ||||||
| 7 | ASSY-PIN | 41217-A0100 | 7509 | 4 | Yes | Yes | 41117-E4100 | ||
| 8 | ASSY-CLIP | 41049-A0100 | 4 | Yes | Yes | 41118-E4100 | |||
| 8 | ASSY-CLIP | 41118-E4100 | 4 | ||||||
| 9 | SEAL-CALIPER | 41109-84000 | 4 | Yes | Yes | 41109-84000 | |||
| 9 | SEAL-CALIPER | 41158-68201 | 4 | Yes | Yes | 41109-84000 | |||
| 10 | BOLT-BRIDGE | 41218-A0100 | 8 | Yes | Yes | 41218-E4100 | |||
| 10 | SERVICE FILE BRIDGE BOLT | 41218-E4100 | 8 | ||||||
| 11 | SCREW-BREEDER | 41128-E4100 | 2 | ||||||
| 11 | SCREW-BREEDER | 41128-E4101 | 2 | Yes | Yes | 41128-E4100 | |||
| 11 | SCREW-BREEDER | 41128-A0100 | 7210 | 2 | Yes | Yes | 41128-E4100 | ||
| 12 | KIT-PAD DISC BRAKE | 41060-E4125 | 7209 | 1 | |||||
| 12 | KIT-PAD DISC BRAKE | 41060-N3025 | 7210 | 7604 | 1 | Yes | Yes | 41060-E4125 | |
| 12 | KIT-PAD DISC BRAKE | 41060-N3026 | 7210 | 7604 | 1 | Yes | Yes | 41060-E4125 | |
| 12 | KIT-PAD DISC BRAKE | 41060-N3028 | 7210 | 7604 | 1 | Yes | Yes | 41060-E4125 | |
| 12 | KIT-PAD DISC BRAKE W | 41060-N4427 | 7605 | 1 | Yes | Yes | 41060-N3025 | ||
| 12 | KIT-PAD DISC BRAKE W | 41060-N4427 | 7605 | 1 | Yes | Yes | 41060-N4425 | ||
| 13 | ASSY-PAD | 41060-E4100 | 7209 | 4 | |||||
| 13 | ASSY-PAD | 41060-N3010 | 7210 | 4 | Yes | Yes | 41060-E4100 | ||
| 14 | SHIM RH | 41084-A0100 | 2 | Yes | Yes | 41084-E4100 | |||
| 14 | SHIM RH | 41084-E4100 | 2 | ||||||
| 15 | SHIM LH | 41085-A0100 | 2 | Yes | Yes | 41085-A0100 | |||
| 15 | SHIM LH | 41085-E4100 | 2 | ||||||
| 16 | SPRING-DUMPING | 41083-E4100 | 4 | ||||||
| 17 | CAP | 41129-30001 | 2 | ||||||
| 17 | CAP | 41129-A2410 | 2 | Yes | Yes | 41129-30001 | |||
| 18 | BOLT-FIX CALIPER | 41250-E4100 | 4 | ||||||
| 19 | WASHER-LOCK M12 | 08915-24210 | 4 | ||||||
| 20 | PLATE-BAFFLE FRONT R | 41151-E4100 | 7005 | 1 | |||||
| 20 | PLATE-BAFFLE FRONT R | 41151-E4102 | 7006 | 7408 | 1 | Yes | Yes | 41151-E4100 | |
| 20 | PLATE-BAFFLE FRONT R | 41151-N3100 | 7409 | 1 | Yes | Yes | 41151-E4102 | ||
| 21 | PLATE-BAFFLE FRONT L | 41161-E4100 | 7005 | 1 | |||||
| 21 | PLATE-BAFFLE FRONT L | 41161-E4102 | 7006 | 7408 | 1 | Yes | Yes | 41161-E4100 | |
| 21 | PLATE-BAFFLE FRONT L | 41161-N3100 | 7409 | 1 | Yes | Yes | 4116U-E4102 | ||
| 22 | SCREW-MACHINE M6X1.0 | 08310-61012 | 8 | ||||||
| 23 | WASHER-LOCK M6 | 08915-13610 | 8 | ||||||
| 24 | COVER-BAFFLE PLATE L | 41162-E4100 | 7005 | 1 | |||||
| 24 | COVER-BAFFLE PLATE R | 41152-E4100 | 7005 | 1 | |||||
| 25 | KIT-SEAL | 41120-A0125 | 1 |
