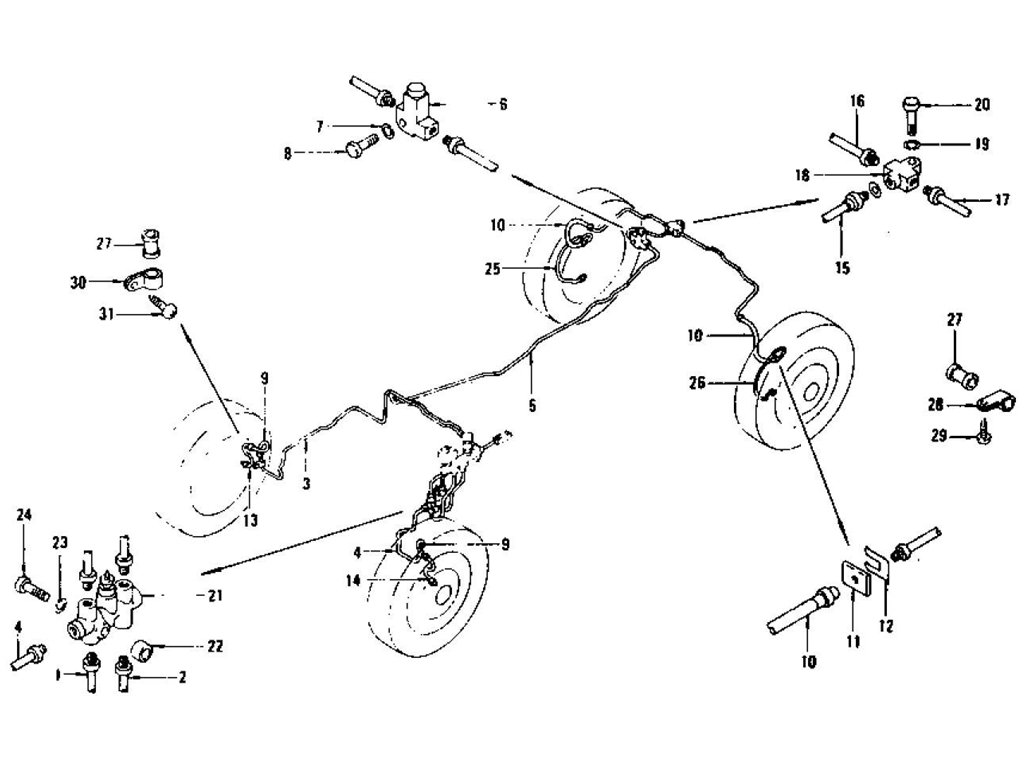

Brake Piping (To Jun.-'72)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TUBE BRAKE MAST | 46221-E4600 | 1 | ||||||
| 1 | ASSY-TUBE BRAKE MAST | 46221-E4601 | 7108 | 1 | Yes | Yes | 46221-E4600 | ||
| 1 | ASSY-TUBE BRAKE MAST | 46221-E8800 | 7109 | 7110 | 1 | No | No | 46221-E4601 | |
| 1 | ASSY-TUBE BRAKE MAST | 46221-E8801 | 7111 | 7206 | 1 | Yes | Yes | 46221-E8800 | |
| 2 | ASSH-TUBE BRAKE MAST | 46241-E4600 | 1 | ||||||
| 2 | ASSH-TUBE BRAKE MAST | 46241-E4601 | 7108 | 1 | Yes | Yes | 46241-E4600 | ||
| 2 | ASSH-TUBE BRAKE MAST | 46241-E8800 | 7109 | 7110 | 1 | No | No | 46241-E4601 | |
| 2 | ASSH-TUBE BRAKE MAST | 46241-E8801 | 7111 | 7206 | 1 | Yes | Yes | 46241-E8800 | |
| 3 | ASSY-TUBE F/I TO FRO | 46243-E4601 | 7110 | 1 | |||||
| 3 | ASSY-TUBE F/I TO FRO | 46243-E8800 | 7111 | 7206 | 1 | Yes | Yes | 46243-E4601 | |
| 4 | ASSY-TUBE F/I TO FRO | 46245-E4600 | 1 | ||||||
| 4 | ASSY-TUBE F/I TO FRO | 46245-E4601 | 7110 | 1 | Yes | Yes | 46245-E4600 | ||
| 4 | ASSY-TUBE F/I TO FRO | 46245-E8800 | 7111 | 1 | Yes | Yes | 46245-E4601 | ||
| 5 | ASSY-TUBE F/I TO NP | 46223-N4100 | 2+2 SEATER | 7310 | 1 | ||||
| 5 | ASSY-TUBE F/I TO PRO | 46223-E4600 | 1 | ||||||
| 5 | ASSY-TUBE F/I TO PRO | 46223-E4601 | 7110 | 1 | Yes | Yes | 46223-E4600 | ||
| 5 | ASSY-TUBE F/I TO PRO | 46223-E8800 | 7111 | 7206 | 1 | Yes | Yes | 46223-E4601 | |
| 6 | ASSY-PROPORTING VALV | 46400-E4100 | 1 | ||||||
| 6 | ASSY-PROPORTING VALV | 46400-E4101 | 7206 | 1 | Yes | Yes | 46400-E4100 | ||
| 7 | WASHER-LOCK M6 | 08915-13610 | 1 | ||||||
| 8 | BOLT-HEX M6X1.0 | 08120-62810 | 1 | ||||||
| 9 | ASSY-HOSE BRAKE FRON | 46202-89911 | 2 | ||||||
| 9 | ASSY-HOSE BRAKE FRON | 46212-89911 | 2 | Yes | Yes | 46202-89911 | |||
| 10 | ASSY-HOSE BRAKE REAR | 46202-89913 | 2 | ||||||
| 10 | ASSY-HOSE BRAKE REAR | 46202-N4500 | 2 | Yes | Yes | 46202-89913 | |||
| 11 | PLATE-LOCK BRAKE HOS | 46205-61000 | 8 | ||||||
| 12 | SPRING-LOCK BRAKE HO | 46206-18000 | 8 | ||||||
| 13 | ASSY-TUBE BRIDGE FRO | 41220-E4100 | 1 | ||||||
| 13 | ASSY-TUBE BRIDGE FRO | 41220-E8700 | 1 | Yes | Yes | 41220-E4100 | |||
| 13 | ASSY-TUBE BRIDGE FRO | 41220-E8710 | 1 | Yes | Yes | 41220-E8700 | |||
| 14 | ASSY-TUBE BRIDGE FRO | 41230-E4100 | 1 | ||||||
| 14 | ASSY-TUBE BRIDGE FRO | 41230-E8700 | 1 | Yes | Yes | 41230-E4100 | |||
| 14 | ASSY-TUBE BRIDGE FRO | 41230-E8710 | 1 | Yes | Yes | 41230-E8700 | |||
| 15 | ASSYS-TUBE PROPORTIN | 46247-E8700 | 7111 | 7206 | 1 | Yes | Yes | 46247-E4100 | |
| 15 | ASSY-TUBE PROPORTING | 46247-E4100 | 7110 | 1 | |||||
| 16 | ASSY-TUBE 3 WAY TO R | 46227-E4100 | 1 | ||||||
| 16 | ASSY-TUBE 3 WAY TO R | 46227-E4101 | 7110 | 1 | Yes | Yes | 46227-E4100 | ||
| 16 | ASSY-TUBE 3 WAY TO R | 46227-E8705 | 1 | Yes | Yes | 46227-E8700 | |||
| 16 | ASSY-TUBE 3 WAY TO R | 46227-E8700 | 7111 | 1 | Yes | Yes | 46227-E4101 | ||
| 17 | ASSY-TUBE 3 WAY TO R | 46229-E4100 | 1 | ||||||
| 17 | ASSY-TUBE 3 WAY TO R | 46229-E4101 | 7110 | 1 | Yes | Yes | 46229-E4100 | ||
| 17 | ASSY-TUBE 3 WAY TO R | 46229-E8705 | 1 | Yes | Yes | 46229-E8700 | |||
| 17 | ASSY-TUBE 3 WAY TO R | 46229-E8700 | 7111 | 1 | Yes | Yes | 46229-E4101 | ||
| 18 | CONNECTOR-3 WAY BRAK | 46313-68201 | 1 | ||||||
| 19 | WASHER-SPRING M8 | 08915-13810 | 1 | ||||||
| 20 | BOLT-HEX M8X1.25 | 08110-82810 | 1 | ||||||
| 20 | BOLT-HEX M8X1.25 | 31153-49006 | 1 | Yes | Yes | 08110-82810 | |||
| 21 | ASSY-SWITCH BRAKE IN | 46100-26100 | 1 | ||||||
| 21 | U | 46100-U5200 | 1 | Yes | Yes | 46100-26100 | |||
| 22 | SPACER-CONNECTOR BRA | 46257-21003 | 1 | ||||||
| 23 | WASHER-LOCK M6 | 08915-13610 | 1 | ||||||
| 24 | BOLT-HEX M6X1.0 | 08120-64810 | 1 | ||||||
| 25 | ASSY-TUBE BRIDGE R | 44220-E8700 | 7206 | 1 | Yes | Yes | 44220-E4100 | ||
| 25 | ASSY-TUBE BRIDGE REA | 44220-E4100 | 1 | ||||||
| 26 | ASSY-TUBE BRIDGE R | 44230-E4100 | 1 | ||||||
| 26 | ASSY-TUBE BRIDGE R | 44230-E8700 | 7206 | 1 | Yes | Yes | 44230-E4100 | ||
| 27 | RUBBER-TUBE CLAMP | 46364-E4700 | AUTOMATIC | 2 | |||||
| 27 | RUBBER-TUBE CLAMP | 46362-E4100 | MANUAL | 2 | |||||
| 28 | CLAMP-TUBE UPPER | 46353-E4100 | 2 | ||||||
| 29 | SCREW-HEX WITH S/WAS | 08360-41214 | 2 | ||||||
| 30 | CLAMP-TUBE UPPER | 46356-E4600 | 1 | ||||||
| 31 | SCREW-HEX WITH S/WAS | 08360-41214 | 1 |
