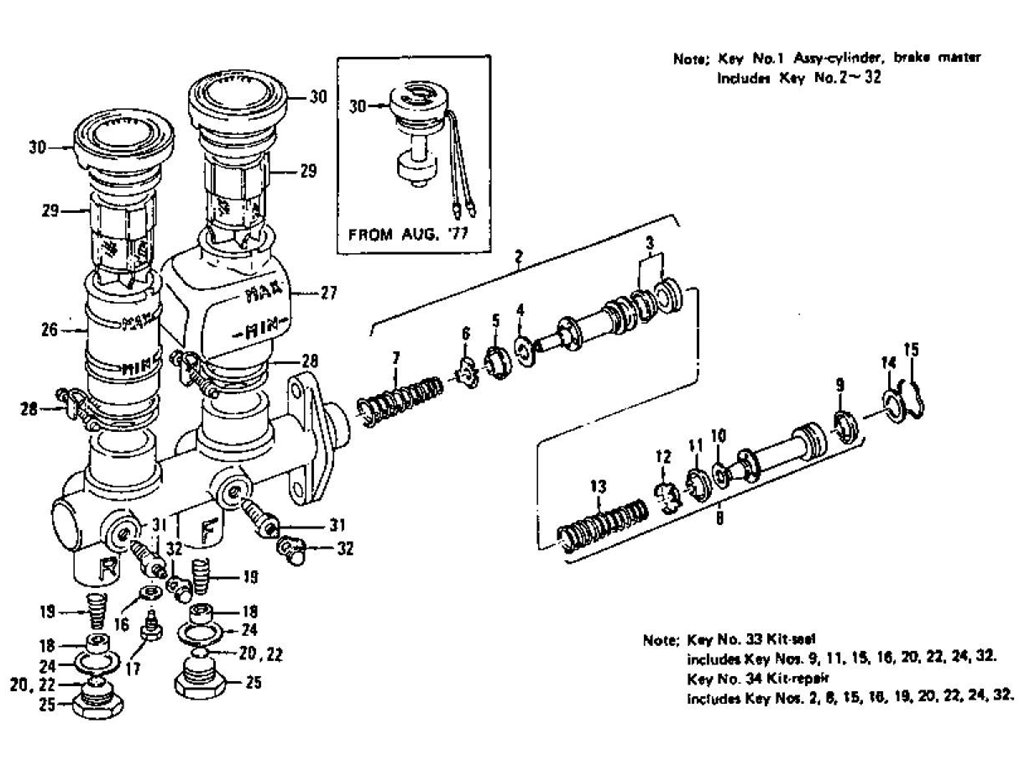

Brake Master Cylinder (Tandem) (From Sep.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CYLINDER | 46010-E8701 | 7606 | 1 | |||||
| 1 | ASSY-CYLINDER | 46010-E8702 | 7607 | 1 | |||||
| 1 | ASSY-CYLINDER | 46010-N4700 | 7608 | 1 | No | No | 46010-E8702 | ||
| 1 | ASSY-CYLINDER | 46010-N4301 | 7708 | 1 | No | No | 46010-N4700 | ||
| 2 | ASSY-PISTON | 46073-E8715 | 1 | ||||||
| 2 | ASSY-PISTON | 46073-E8714 | 1 | ||||||
| 2 | ASSY-PISTON | 46073-F2010 | 7608 | 1 | No | No | 46073-E8715 | ||
| 2 | ASSY-PISTON | 46073-N4310 | 7708 | 1 | No | No | 46073-F2010 | ||
| 3 | CUP-PISTON | 46064-E7411 | 2 | ||||||
| 4 | SPACER | 46066-E7411 | 1 | ||||||
| 5 | CUP-PISTON | 46064-E7411 | 1 | Yes | Yes | 46068-E7411 | |||
| 5 | CUP-PISTON | 46068-E7411 | 1 | ||||||
| 6 | SEAT-SPRING | 46062-E7411 | 1 | ||||||
| 7 | SPRING-RETURN | 46065-E7411 | 1 | Yes | Yes | 46075-E7411 | |||
| 7 | SPRING-RETURN | 46075-E7411 | 1 | ||||||
| 8 | ASSY-PISTON | 46063-E8713 | 1 | ||||||
| 8 | ASSY-PISTON | 46063-E8714 | 1 | Yes | Yes | 46063-E8713 | |||
| 8 | ASSY-PISTON | 46063-F2010 | 7608 | 1 | No | No | 46063-E8714 | ||
| 9 | CUP-PISTON | 46064-E7411 | 1 | ||||||
| 10 | SPACER | 46066-E7411 | 1 | ||||||
| 11 | CUP-PISTON | 46064-E7411 | 1 | Yes | Yes | 46068-E7411 | |||
| 11 | CUP-PISTON | 46068-E7411 | 1 | ||||||
| 12 | SEAT-SPRING | 46062-E7411 | 1 | ||||||
| 12 | SEAT-SPRING | 46062-F2010 | 7708 | 1 | Yes | Yes | 46062-E7411 | ||
| 13 | SPRING-RETURN | 46065-E7411 | 1 | ||||||
| 13 | SPRING-RETURN | 46065-F2010 | 7608 | 1 | No | No | 46065-E7411 | ||
| 15 | RING-PISTON STOPPER | 46071-27260 | 1 | ||||||
| 16 | GASKET-PISTON STOPPE | 46079-R1200 | 1 | ||||||
| 17 | STOPPER-SECONDARY PI | 46032-R1200 | 1 | ||||||
| 17 | STOPPER-SECONDARY PI | 46032-B5012 | 7608 | 1 | No | No | 46032-R1200 | ||
| 18 | GUIDE-VALVE | 46059-69010 | 2 | ||||||
| 18 | GUIDE-VALVE | 46059-B5022 | 7608 | 2 | No | No | 46059-69010 | ||
| 19 | SPRING-VALVE | 46027-73010 | 2 | ||||||
| 19 | SPRING-VALVE | 46027-A6900 | 2 | Yes | Yes | 46027-73010 | |||
| 19 | SPRING-VALVE | 46027-B5022 | 2 | Yes | Yes | 46027-A6900 | |||
| 20 | ASSY-VALVE | 46050-73010 | 1 | ||||||
| 20 | ASSY-VALVE | 46050-B5022 | 7608 | 1 | No | No | 46050-73010 | ||
| 21 | RETAINER-VALVE | 46057-10610 | 1 | ||||||
| 22 | ASSY-VALVE | 46050-73410 | 1 | ||||||
| 22 | ASSY-VALVE | 46050-F2010 | 7508 | 1 | No | No | 46050-73410 | ||
| 23 | RETAINER-VALVE | 46057-73410 | 1 | ||||||
| 23 | RETAINER-VALVE | 46057-F2010 | 7608 | 1 | No | No | 46057-73410 | ||
| 24 | PACKING-VALVE | 46036-30100 | 2 | ||||||
| 25 | CAP-VALVE | 46038-B5012 | 7608 | 2 | No | No | 28276-0502P | ||
| 26 | RESERVOIR-OIL | 46090-U0512 | 1 | ||||||
| 27 | RESERVOIR-OIL | 46091-F2010 | 1 | Yes | Yes | 46090-F2010 | |||
| 27 | RESERVOIR-OIL | 46091-U0512 | 1 | ||||||
| 27 | RESERVOIR-OIL | 46090-F2010 | 7608 | 1 | No | No | 46091-U0512 | ||
| 28 | BAND-OIL RESERVOIR | 46016-10610 | 7606 | 2 | |||||
| 28 | BAND-OIL RESERVOIR | 46016-B5022 | 7607 | 2 | |||||
| 29 | FILTER-OIL | 46093-N0410 | 2 | ||||||
| 30 | ASSY-CAP | 46020-U0512 | 7606 | 2 | |||||
| 30 | ASSY-CAP | 46020-K2411 | 7607 | 7707 | 2 | ||||
| 30 | ASSY-CAP | 46020-U6711 | 7708 | 2 | No | No | 46020-K2411 | ||
| 31 | SCREW-BLEEDER | 41128-B5012 | 2 | Yes | Yes | 41128-U5012 | |||
| 31 | SCREW-BLEEDER | 41128-U0512 | 2 | ||||||
| 32 | CAP-BLEEDER SCREW | 41129-A2410 | 2 | ||||||
| 33 | CUP KIT TANDEM MASTE | 46012-Y0125 | 1 | Yes | Yes | 46010-P0125 | |||
| 33 | CUP KIT TANDEM MASTE | 46012-N4325 | 7608 | 1 | No | No | 46012-Y0125 | ||
| 33 | KIT-REPAIR | 46010-E8725 | 1 | ||||||
| 33 | KIT-REPAIR | 46010-P0125 | 1 | Yes | Yes | 46010-E8725 | |||
| 34 | PISTON KIT TANDEM MA | 46011-Y0126 | 1 | ||||||
| 34 | PISTON KIT TANDEM MA | 46011-N4326 | 7608 | 1 | No | No | 46011-Y0126 |
