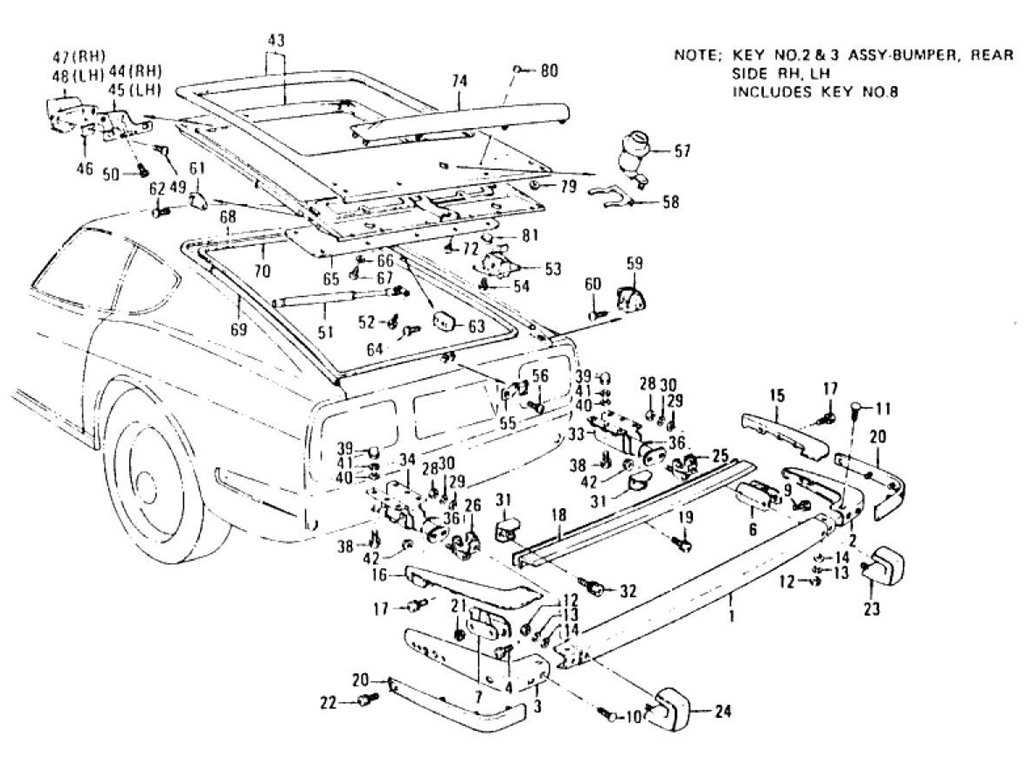

Tail Gate Panel, Trim, Lock & Rear Bumper (2 Seater) (From Aug.-'73 To Aug.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-BUMPER | 85009-N3600 | 1 | ||||||
| 2 | ASSY-BUMER | 85005-N3600 | 1 | ||||||
| 3 | ASSY-BUMPER | 85006-N3600 | 1 | ||||||
| 4 | BOLT-HEX | 08124-03533 | 4 | ||||||
| 5 | NUT-WITH WASHER | 08911-10837 | 8 | ||||||
| 6 | ASSY-INSULATOR REAR | 85040-N3600 | 1 | ||||||
| 7 | ASSY-INSULATOR REAR | 85041-N3600 | 1 | ||||||
| 8 | BRACKET-REAR BUMPER | 85020-N3600 | 2 | ||||||
| 9 | SCREW-WITH WASHER | 08363-61248 | 8 | ||||||
| 10 | BOLT-CARRIDGE | 62663-N3600 | 2 | ||||||
| 11 | BOLT-CARRIDGE | 62663-18000 | 2 | ||||||
| 12 | NUT-HEX | 08911-10610 | 4 | ||||||
| 13 | WASHER-LOCK | 08915-23610 | 4 | ||||||
| 14 | WASHER-PLAIN | 08915-43610 | 4 | ||||||
| 15 | ASSY-PACKING REAR BU | 85900-N3600 | 1 | ||||||
| 16 | ASSY-PACKING REAR BU | 85901-N3600 | 1 | ||||||
| 17 | BOLT-WITH WASHER | 08360-41426 | 6 | ||||||
| 18 | ASSY-SIGHT SHIELD RE | 85950-N3600 | 1 | ||||||
| 19 | BOLT-WITH WASHER | 08360-62026 | 5 | ||||||
| 20 | RUBBER-REAR BUMPER S | 85007-N3600 | 2 | ||||||
| 21 | NUT-FLANGE M5 | 01221-00023 | 8 | ||||||
| 22 | SCREW | 08313-41698 | 2 | ||||||
| 23 | ASSY-OVERRIDER | 85050-N3600 | 1 | ||||||
| 24 | ASSY-OVERRIDER | 85051-N3600 | 1 | ||||||
| 25 | ASSY-JOINT REAR BUMP | 85030-N3600 | 1 | ||||||
| 26 | ASSY-JOINT REAR BUMP | 85031-N3600 | 1 | ||||||
| 27 | ASSY-JOINT REAR BUMP | 85032-N3600 | 2 | ||||||
| 28 | NUT-HEX | 08911-10810 | 4 | ||||||
| 29 | WASHER-PLAIN | 08915-43810 | 4 | ||||||
| 30 | WASHER-LOCK | 08915-13810 | 4 | ||||||
| 31 | ASSY-HOOK | 85220-N3400 | 2 | ||||||
| 32 | BOLT-HEX | 08124-03033 | 4 | ||||||
| 33 | ASSY-STAY | 85210-N3600 | 1 | ||||||
| 34 | ASSY-STAY | 85211-N3600 | 1 | ||||||
| 35 | SHIM-JOINT | 62669-N3601 | 1 | Yes | Yes | 85027-N3600 | |||
| 35 | SHIM-JOINT | 85027-N3600 | 1 | ||||||
| 36 | KIT-ABSORBER | 85028-N3600 | 2 | ||||||
| 37 | HEAT-SHIELD | 85090-N3600 | 2 | ||||||
| 38 | BOLT-WITH WASHER FIX | 08120-82033 | 6 | ||||||
| 39 | NUT-CUP | 13274-78200 | 6 | ||||||
| 40 | WASHER-PLAIN | 08915-53810 | 6 | ||||||
| 41 | WASHER-LOCK | 08915-23810 | 6 | ||||||
| 42 | NUT-HEX | 08911-10837 | 4 | ||||||
| 43 | ASSY-PANEL TAIL GATE | 90101-N3400 | 7507 | 1 | |||||
| 43 | ASSY-PANEL TAIL GATE | 90101-N4500 | 7508 | 1 | Yes | Yes | 90101-N3400 | ||
| 44 | ASSY-TAIL GATE HINGE | 90400-E4100 | 1 | ||||||
| 45 | ASSY-TAIL GATE HINGE | 90401-E4100 | 1 | ||||||
| 46 | SHIM-ADJUSTING TAIL | 90407-E4100 | 4 | ||||||
| 47 | SEAL-COVER HINGE TAI | 90410-N3000 | 1 | ||||||
| 48 | SEAL-COVER HINGE TAI | 90411-N3000 | 1 | ||||||
| 49 | SCREW-MACHINE M8 | 08363-83026 | 4 | ||||||
| 50 | SCREW-MACHINE M8 | 08320-82019 | 4 | ||||||
| 51 | SET-STAY | 90421-N3400 | 1 | ||||||
| 51 | SET-STAY | 90420-N3400 | 1 | ||||||
| 52 | SCREW-MACHINE | 08363-62026 | 4 | ||||||
| 53 | ASSY-TAIL GATE LOCK | 90502-E4101 | 1 | ||||||
| 54 | SCREW-MACHINE M6 | 08363-61626 | 2 | ||||||
| 55 | ASSY-STRIKER TAIL GA | 90805-E4100 | 1 | ||||||
| 56 | SCREW-MACHINE M6 | 08363-61626 | 2 | ||||||
| 57 | CYLINDER-LOCK TAIL G | 90560-E8200 | 1 | ||||||
| 57 | CYLINDER-LOCK TAIL G | 90560-E8201 | 7508 | 1 | Yes | Yes | 90560-E8200 | ||
| 58 | CLIP-CYLINDER | 96809-19700 | 1 | ||||||
| 59 | ASSY-DOWN STOPPER TA | 90522-E4100 | 2 | ||||||
| 60 | SCREW-MACHINE M5 | 08363-61626 | 4 | ||||||
| 61 | DOVE TAIL-TAIL GATE | 90524-E4100 | 2 | ||||||
| 62 | SCREW-MACHINE M5 | 08313-51226 | 4 | ||||||
| 63 | BUMPER-RUBBER TAIL G | 90526-E4100 | 2 | ||||||
| 63 | BUMPER-RUBBER TAIL G | 90526-N4600 | 7505 | 2 | Yes | Yes | 90526-E4100 | ||
| 64 | SCREW-MACHINE | 08310-51218 | 4 | ||||||
| 65 | ASSY-TRIM TAIL GATE | 90902-N3300 | 1 | ||||||
| 65 | ASSY-TRIM TAIL GATE | 90902-N3301 | 7408 | 1 | |||||
| 65 | ASSY-TRIM TAIL GATE | 90902-N3304 | 1 | ||||||
| 65 | ASSY-TRIM TAIL GATE | 90902-N3604 | 1 | ||||||
| 66 | WASHER-FINISH | 08915-80442 | 7709 | 10 | |||||
| 67 | SCREW-TAPPING | 08530-41642 | 10 | ||||||
| 68 | WEATHERSTRIP-TAIL GA | 76910-N3000 | 1 | ||||||
| 69 | WEATHERSTRIP-TAIL GA | 76911-N3000 | 2 | ||||||
| 70 | WEATHERSTRIP-TAIL GA | 76912-E4100 | 7505 | 1 | |||||
| 70 | WEATHERSTRIP-TAIL GA | 76912-N4500 | 7506 | 1 | Yes | Yes | 76912-E4100 | ||
| 71 | RUBBER-SEALING TAIL | 90965-E4100 | 1 | ||||||
| 72 | CLIP-TRIM | 66919-H1001 | 8 | ||||||
| 73 | WASHER-NYLON | 17499-78500 | 7709 | 4 | |||||
| 74 | ASSY-SPOILAR AIR | 98100-N3300 | OP | 1 | |||||
| 74 | ASSY-SPOILAR AIR | 98100-N3528 | OP. AUTOMATIC | 1 | Yes | Yes | 98100-N3528 | ||
| 74 | ASSY-SPOILAR AIR | 98100-N3105 | OP. MANUAL | 1 | Yes | Yes | 98100-N3527 | ||
| 74 | ASSY-SPOILAR AIR | 98100-N3527 | OP. MANUAL | 1 | Yes | Yes | 98100-N3525 | ||
| 74 | ASSY-SPOILER AIR | 98100-N3525 | OP | 1 | Yes | Yes | 98100-N3300 | ||
| 75 | SEALING-AIR SPOILAR | 98115-E7200 | 2 | ||||||
| 76 | CUSHION AIR SPOILAR | 98116-E7200 | 2 | ||||||
| 77 | NUT-FLANGE | 01225-00021 | 6 | ||||||
| 77 | WASHER | 08915-53610 | 8 | ||||||
| 78 | PLUG | 77700-89922 | 6 | ||||||
| 79 | NUT-FLANGE M6 (AIR S | 01225-00021 | OP | 6 | |||||
| 80 | PLUG-NYLON (EMBLEM H | 77700-89922 | OP | 5 | |||||
| 81 | GROMMET-HEATER | 27035-21000 | 2 |
