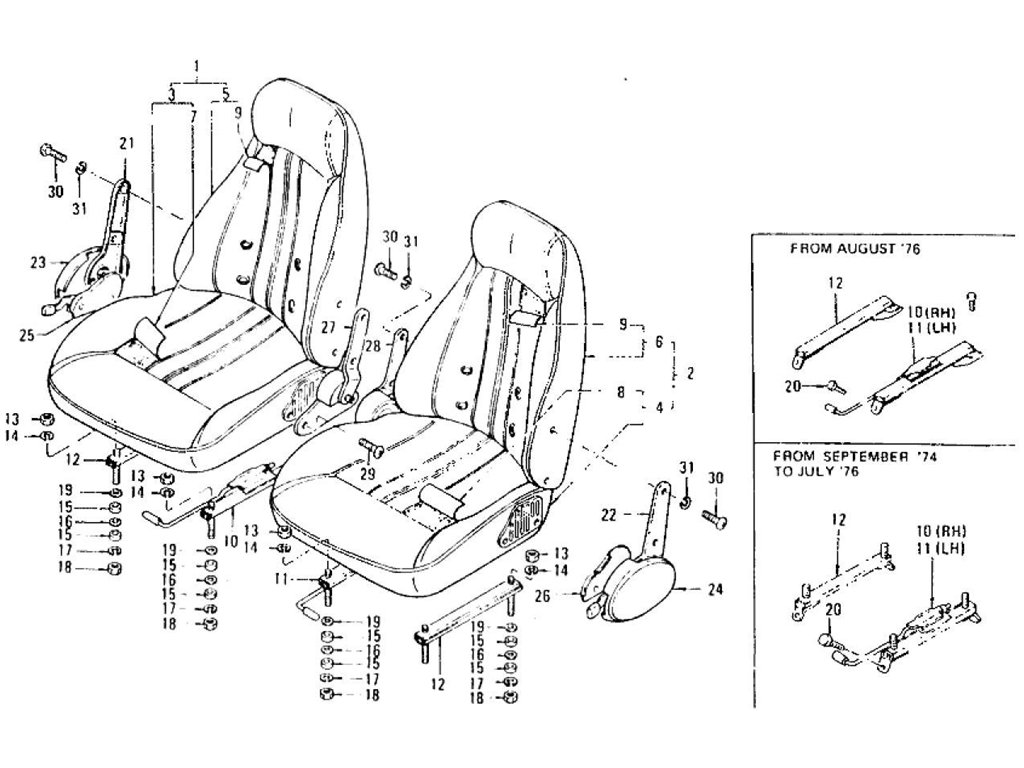

Seat & Slide (2 Seater) (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COMP SEAT RH BEIGE | 86000-N3602 | 7403 | 1 | |||||
| 1 | COMP SEAT RH BEIGE | 86000-N3607 | 7404 | 7408 | 1 | Yes | Yes | 86000-N3602 | |
| 1 | COMP SEAT RH BEIGE | 86000-N4301 | 7506 | 7607 | 1 | Yes | Yes | 86000-N4212 | |
| 1 | COMP SEAT RH BEIGE | 86000-N4702 | 7608 | 1 | No | No | 86000-N4301 | ||
| 1 | COMP SEAT RH BEIGE | 86000-N4202 | USA | 7409 | 7502 | 1 | No | No | 86000-N3607 |
| 1 | COMP SEAT RH BEIGE | 86000-N4212 | USA | 7503 | 7505 | 1 | No | No | 86000-N4202 |
| 1 | COMP SEAT RH BLACK | 86000-N3600 | 7403 | 1 | |||||
| 1 | COMP SEAT RH BLACK | 86000-N3605 | 7404 | 7408 | 1 | Yes | Yes | 86000-N3600 | |
| 1 | COMP SEAT RH BLACK | 86000-N4300 | 7506 | 7607 | 1 | Yes | Yes | 86000-N4210 | |
| 1 | COMP SEAT RH BLACK | 86000-N4700 | 7608 | 1 | No | No | 86000-N4300 | ||
| 1 | COMP SEAT RH BLACK | 86000-N4200 | USA | 7409 | 7502 | 1 | No | No | 86000-N3605 |
| 1 | COMP SEAT RH BLACK | 86000-N4210 | USA | 7503 | 7505 | 1 | No | No | 86000-N4200 |
| 1 | COMP SEAT RH BROWN | 86000-N3601 | 7403 | 1 | |||||
| 1 | COMP SEAT RH BROWN | 86000-N3606 | 7404 | 7408 | 1 | Yes | Yes | 86000-N3601 | |
| 1 | COMP SEAT RH DARK BR | 86000-N3603 | 7403 | 1 | |||||
| 1 | COMP SEAT RH DARK BR | 86000-N3608 | 7404 | 7408 | 1 | Yes | Yes | 86000-N3603 | |
| 1 | COMP SEAT RH DARK BR | 86000-N4302 | 7506 | 7607 | 1 | Yes | Yes | 86000-N4213 | |
| 1 | COMP SEAT RH DARK BR | 86000-N4701 | 7608 | 1 | No | No | 86000-N4302 | ||
| 1 | COMP SEAT RH DARK BR | 86000-N4203 | USA | 7409 | 7502 | 1 | No | No | 86000-N3608 |
| 1 | COMP SEAT RH DARK BR | 86000-N4213 | USA | 7503 | 7505 | 1 | No | No | 86000-N4203 |
| 2 | COMP SEAT LH BEIGE | 87000-N3602 | 7403 | 1 | |||||
| 2 | COMP SEAT LH BEIGE | 87000-N3607 | 7404 | 7408 | 1 | Yes | Yes | 87000-N3602 | |
| 2 | COMP SEAT LH BEIGE | 87000-N4212 | 7503 | 7505 | 1 | No | No | 87000-N4202 | |
| 2 | COMP SEAT LH BEIGE | 87000-N4301 | 7506 | 7607 | 1 | Yes | Yes | 87000-N4212 | |
| 2 | COMP SEAT LH BEIGE | 87000-N4702 | 7608 | 1 | No | No | 87000-N4301 | ||
| 2 | COMP SEAT LH BEIGE | 87000-N4202 | USA | 7409 | 7502 | 1 | No | No | 87000-N3607 |
| 2 | COMP SEAT LH BLACK | 87000-N3600 | 7403 | 1 | |||||
| 2 | COMP SEAT LH BLACK | 87000-N3601 | 7403 | 1 | |||||
| 2 | COMP SEAT LH BLACK | 87000-N3605 | 7404 | 7408 | 1 | Yes | Yes | 87000-N3600 | |
| 2 | COMP SEAT LH BLACK | 87000-N3606 | 7404 | 7408 | 1 | Yes | Yes | 87000-N3601 | |
| 2 | COMP SEAT LH BLACK | 87000-N4210 | 7503 | 7505 | 1 | No | No | 87000-N4200 | |
| 2 | COMP SEAT LH BLACK | 87000-N4300 | 7506 | 7607 | 1 | Yes | Yes | 87000-N4210 | |
| 2 | COMP SEAT LH BLACK | 87000-N4700 | 7608 | 1 | No | No | 87000-N4300 | ||
| 2 | COMP SEAT LH BLACK | 87000-N4200 | USA | 7409 | 7502 | 1 | No | No | 87000-N3605 |
| 2 | COMP SEAT LH DARK BR | 87000-N3603 | 7403 | 1 | |||||
| 2 | COMP SEAT LH DARK BR | 87000-N3608 | 7404 | 7408 | 1 | Yes | Yes | 87000-N3603 | |
| 2 | COMP SEAT LH DARK BR | 87000-N4213 | 7503 | 7505 | 1 | No | No | 87000-N4203 | |
| 2 | COMP SEAT LH DARK BR | 87000-N4302 | 7506 | 7607 | 1 | Yes | Yes | 87000-N4213 | |
| 2 | COMP SEAT LH DARK BR | 87000-N4701 | 7608 | 1 | No | No | 87000-N4302 | ||
| 2 | COMP SEAT LH DARK BR | 87000-N4203 | USA | 7409 | 7502 | 1 | No | No | 87000-N3608 |
| 3 | ASSY CUSHION SEAT BL | 86300-N3605 | 7408 | 1 | Yes | Yes | 86300-N3600 | ||
| 3 | ASSY CUSHION SEAT RH | 86300-N3607 | 7408 | 1 | Yes | Yes | 86300-N3602 | ||
| 3 | ASSY CUSHION SEAT RH | 86300-N3608 | 7408 | 1 | Yes | Yes | 86300-N3603 | ||
| 3 | ASSY CUSHION SEAT RH | 86300-N4301 | 7506 | 7607 | 1 | Yes | Yes | 86300-N4502 | |
| 3 | ASSY CUSHION SEAT RH | 86300-N4302 | 7506 | 7607 | 1 | Yes | Yes | 86300-N4503 | |
| 3 | ASSY CUSHION SEAT RH | 86300-N4702 | 7608 | 1 | No | No | 86300-N4301 | ||
| 3 | ASSY CUSHION SEAT RH | 86300-N4200 | USA | 7409 | 7502 | 1 | Yes | Yes | 86300-N3605 |
| 3 | ASSY CUSHION SEAT RH | 86300-N4202 | USA | 7409 | 7502 | 1 | Yes | Yes | 86300-N3607 |
| 3 | ASSY CUSHION SEAT RH | 86300-N4203 | USA | 7409 | 7502 | 1 | Yes | Yes | 86300-N3608 |
| 3 | ASSY CUSHION SEAT RH | 86300-N4502 | USA | 7503 | 7505 | 1 | No | No | 86300-N4202 |
| 3 | ASSY CUSHION SEAT RH | 86300-N4503 | USA | 7503 | 7505 | 1 | No | No | 86300-N4203 |
| 3 | ASSY CUSION SEAT RH | 86300-N3606 | 7408 | 1 | Yes | Yes | 86300-N3601 | ||
| 3 | ASSY CUSION SEAT RH | 86300-N4701 | 7608 | 1 | No | No | 86300-N4302 | ||
| 3 | ASSY CUSIONN SEAT RH | 86300-N4300 | 7506 | 7607 | 1 | Yes | Yes | 86300-N4500 | |
| 3 | ASSY CUSIONN SEAT RH | 86300-N4700 | 7608 | 1 | No | No | 86300-N4300 | ||
| 3 | ASSY CUSIONN SEAT RH | 86300-N4500 | USA | 7503 | 7505 | 1 | No | No | 86300-N4200 |
| 4 | ASSY CUSHION SEAT LH | 86300-N3605 | 7408 | 1 | |||||
| 4 | ASSY CUSHION SEAT LH | 86300-N3606 | 7408 | 1 | |||||
| 4 | ASSY CUSHION SEAT LH | 86300-N3607 | 7408 | 1 | |||||
| 4 | ASSY CUSHION SEAT LH | 87300-N4210 | 7503 | 7505 | 1 | No | No | 87300-N4200 | |
| 4 | ASSY CUSHION SEAT LH | 87300-N4212 | 7503 | 7505 | 1 | No | No | 87300-N4202 | |
| 4 | ASSY CUSHION SEAT LH | 87300-N4300 | 7506 | 7607 | 1 | Yes | Yes | 87300-N4210 | |
| 4 | ASSY CUSHION SEAT LH | 87300-N4301 | 7506 | 7607 | 1 | Yes | Yes | 87300-N4212 | |
| 4 | ASSY CUSHION SEAT LH | 87300-N4302 | 7506 | 7607 | 1 | Yes | Yes | 87300-N4213 | |
| 4 | ASSY CUSHION SEAT LH | 87300-N4700 | 7608 | 1 | No | No | 87300-N4300 | ||
| 4 | ASSY CUSHION SEAT LH | 87300-N4701 | 7608 | 1 | No | No | 87300-N4302 | ||
| 4 | ASSY CUSHION SEAT LH | 87300-N4702 | 7608 | 1 | No | No | 87300-N4301 | ||
| 4 | ASSY CUSHION SEAT LH | 87300-N4200 | USA | 7409 | 7502 | 1 | No | No | 86300-N3605 |
| 4 | ASSY CUSHION SEAT LH | 87300-N4202 | USA | 7409 | 7502 | 1 | No | No | 86300-N3607 |
| 4 | ASSY CUSHION SEAT LH | 87300-N4203 | USA | 7409 | 7502 | 1 | No | No | 86300-N3608 |
| 4 | ASSY CUSHION SEAT LH | 87300-N4213 | USA | 7503 | 7505 | 1 | No | No | 87300-N4203 |
| 5 | ASSY BACK SEAT RH BE | 86600-N3402 | 7408 | 1 | |||||
| 5 | ASSY BACK SEAT RH BE | 86600-N4202 | 7409 | 7505 | 1 | Yes | Yes | 86600-N3402 | |
| 5 | ASSY BACK SEAT RH BE | 86600-N4301 | 7506 | 7607 | 1 | Yes | Yes | 86600-N4202 | |
| 5 | ASSY BACK SEAT RH BE | 86600-N4702 | 7608 | 1 | No | No | 86600-N4301 | ||
| 5 | ASSY BACK SEAT RH BL | 86600-N3400 | 7408 | 1 | |||||
| 5 | ASSY BACK SEAT RH BL | 86600-N4200 | 7409 | 7505 | 1 | Yes | Yes | 86600-N3400 | |
| 5 | ASSY BACK SEAT RH BL | 86600-N4300 | 7506 | 7607 | 1 | Yes | Yes | 86600-N4200 | |
| 5 | ASSY BACK SEAT RH BL | 86600-N4700 | 7608 | 1 | No | No | 86600-N4300 | ||
| 5 | ASSY BACK SEAT RH BR | 86600-N3401 | 7408 | 1 | |||||
| 5 | ASSY BACK SEAT RH CL | 86600-N4205 | OP | 7409 | 7505 | 1 | |||
| 5 | ASSY BACK SEAT RH CL | 86600-N4305 | OP | 7506 | 7607 | 1 | Yes | Yes | 86600-N4205 |
| 5 | ASSY BACK SEAT RH CL | 86600-N3505 | OP | 7608 | 1 | No | No | 86600-N4305 | |
| 5 | ASSY BACK SEAT RH CL | 86600-N3506 | OP | 7608 | 1 | No | No | 86600-N4306 | |
| 5 | ASSY BACK SEAT RH DA | 86600-N3403 | 7408 | 1 | |||||
| 5 | ASSY BACK SEAT RH DA | 86600-N4203 | 7409 | 7505 | 1 | Yes | Yes | 86600-N3403 | |
| 5 | ASSY BACK SEAT RH DA | 86600-N4302 | 7506 | 7607 | 1 | Yes | Yes | 86600-N4203 | |
| 5 | ASSY BACK SEAT RH DA | 86600-N4701 | 7608 | 1 | No | No | 86600-N4302 | ||
| 6 | ASSY BACK SEAT LH BE | 87600-N3402 | 7408 | 1 | |||||
| 6 | ASSY BACK SEAT LH BE | 87600-N4202 | 7409 | 7505 | 1 | Yes | Yes | 87600-N3402 | |
| 6 | ASSY BACK SEAT LH BL | 87600-N3400 | 7408 | 1 | |||||
| 6 | ASSY BACK SEAT LH BL | 87600-N4200 | 7409 | 7505 | 1 | Yes | Yes | 87600-N3400 | |
| 6 | ASSY BACK SEAT LH BL | 87600-N4300 | 7506 | 7607 | 1 | Yes | Yes | 87600-N4200 | |
| 6 | ASSY BACK SEAT LH BL | 87600-N4700 | 7608 | 1 | No | No | 87600-N4300 | ||
| 6 | ASSY BACK SEAT LH BR | 87600-N3401 | 7408 | 1 | |||||
| 6 | ASSY BACK SEAT LH CL | 87600-N4205 | OP | 7409 | 7505 | 1 | |||
| 6 | ASSY BACK SEAT LH CL | 87600-N4305 | OP | 7506 | 7607 | 1 | Yes | Yes | 87600-N4205 |
| 6 | ASSY BACK SEAT LH CL | 87600-N3505 | OP | 7608 | 1 | No | No | 87600-N4305 | |
| 6 | ASSY BACK SEAT LH CL | 87600-N3506 | OP | 7608 | 1 | No | No | 87600-N4306 | |
| 6 | ASSY BACK SEAT LH DA | 87600-N3403 | 7408 | 1 | |||||
| 6 | ASSY BACK SEAT LH DA | 87600-N4203 | 7409 | 7505 | 1 | Yes | Yes | 87600-N3403 | |
| 6 | ASSY BACK SEAT LH DA | 87600-N4302 | 7506 | 7607 | 1 | Yes | Yes | 87600-N4203 | |
| 6 | ASSY BACK SEAT LH DA | 87600-N4701 | 7608 | 1 | No | No | 87600-N4302 | ||
| 6 | ASSY BLACK SEAT LH B | 87600-N4301 | 7506 | 7607 | 1 | Yes | Yes | 87600-N4202 | |
| 6 | ASSY BLACK SEAT LH B | 87600-N4702 | 7608 | 1 | No | No | 87600-N4301 | ||
| 7 | TIM CUSHION SEAT RH | 86320-N3400 | 7505 | 1 | |||||
| 7 | TIRM CUSHION SEAT RH | 86320-N4305 | OP | 7506 | 7607 | 1 | Yes | Yes | 86320-N4215 |
| 7 | TRIM CUSHION SEAT RH | 86320-N3401 | 7408 | 1 | |||||
| 7 | TRIM CUSHION SEAT RH | 86320-N3402 | 7505 | 1 | |||||
| 7 | TRIM CUSHION SEAT RH | 86320-N3403 | 7505 | 1 | |||||
| 7 | TRIM CUSHION SEAT RH | 86320-N4301 | 7506 | 7607 | 1 | Yes | Yes | 86320-N3402 | |
| 7 | TRIM CUSHION SEAT RH | 86320-N4302 | 7506 | 7607 | 1 | Yes | Yes | 86320-N3403 | |
| 7 | TRIM CUSHION SEAT RH | 86320-N4701 | 7608 | 1 | No | No | 86320-N4302 | ||
| 7 | TRIM CUSHION SEAT RH | 86320-N4702 | 7608 | 1 | No | No | 86320-N4301 | ||
| 7 | TRIM CUSHION SEAT RH | 86320-N4215 | OP | 7409 | 7505 | 1 | |||
| 7 | TRIM CUSHION SEAT RH | 86320-N3505 | OP | 7608 | 1 | No | No | 86320-N4305 | |
| 7 | TRIM CUSION SEAT RH | 86320-N4300 | 7506 | 7607 | 1 | Yes | Yes | 86320-N3400 | |
| 7 | TRIM CUSION SEAT RH | 86320-N4700 | 7608 | 1 | No | No | 86320-N4300 | ||
| 7 | TRIM-CUSHION SEAT RH | 86320-N3506 | OP | 7608 | 1 | ||||
| 8 | TRIM CUSHION SEAT LH | 86320-N3400 | 7408 | 1 | |||||
| 8 | TRIM CUSHION SEAT LH | 86320-N3401 | 7408 | 1 | |||||
| 8 | TRIM CUSHION SEAT LH | 86320-N3402 | 7408 | 1 | |||||
| 8 | TRIM CUSHION SEAT LH | 86320-N3403 | 7408 | 1 | |||||
| 8 | TRIM CUSHION SEAT LH | 87320-N4210 | 7409 | 7505 | 1 | No | No | 86320-N3400 | |
| 8 | TRIM CUSHION SEAT LH | 87320-N4212 | 7409 | 7505 | 1 | No | No | 86320-N3402 | |
| 8 | TRIM CUSHION SEAT LH | 87320-N4213 | 7409 | 7505 | 1 | No | No | 86320-N3403 | |
| 8 | TRIM CUSHION SEAT LH | 87320-N4300 | 7506 | 7607 | 1 | Yes | Yes | 87320-N4210 | |
| 8 | TRIM CUSHION SEAT LH | 87320-N4301 | 7506 | 7607 | 1 | Yes | Yes | 87320-N4212 | |
| 8 | TRIM CUSHION SEAT LH | 87320-N4302 | 7506 | 7607 | 1 | Yes | Yes | 87320-N4213 | |
| 8 | TRIM CUSHION SEAT LH | 87320-N4700 | 7608 | 1 | No | No | 87320-N4300 | ||
| 8 | TRIM CUSHION SEAT LH | 87320-N4701 | 7608 | 1 | No | No | 87320-N4302 | ||
| 8 | TRIM CUSHION SEAT LH | 87320-N4702 | 7608 | 1 | No | No | 87320-N4301 | ||
| 8 | TRIM CUSHION SEAT LH | 87320-N4215 | OP | 7409 | 7505 | 1 | |||
| 8 | TRIM CUSHION SEAT LH | 87320-N4305 | OP | 7506 | 7607 | 1 | Yes | Yes | 87320-N4215 |
| 8 | TRIM CUSHION SEAT LH | 87320-N3505 | OP | 7608 | 1 | No | No | 87320-N4305 | |
| 8 | TRIM CUSHION SEAT LH | 87320-N3506 | OP | 7608 | 1 | ||||
| 9 | TRIM BACK SEAT BALCK | 86620-N4300 | 7506 | 7607 | 2 | Yes | Yes | 86620-N3400 | |
| 9 | TRIM BACK SEAT BEIGE | 86620-N3402 | 7505 | 2 | |||||
| 9 | TRIM BACK SEAT BEIGE | 86620-N4301 | 7506 | 7607 | 2 | Yes | Yes | 86620-N3402 | |
| 9 | TRIM BACK SEAT BEIGE | 86620-N4702 | 7608 | 2 | No | No | 86620-N4301 | ||
| 9 | TRIM BACK SEAT BLACK | 86620-N3400 | 7505 | 2 | |||||
| 9 | TRIM BACK SEAT BLACK | 86620-N4700 | 7608 | 2 | No | No | 86620-N4300 | ||
| 9 | TRIM BACK SEAT BROWN | 86620-N3401 | 7408 | 2 | |||||
| 9 | TRIM BACK SEAT CLOTH | 86620-N4215 | OP | 7409 | 7505 | 2 | |||
| 9 | TRIM BACK SEAT CLOTH | 86620-N4305 | OP | 7506 | 7607 | 2 | Yes | Yes | 86620-N4215 |
| 9 | TRIM BACK SEAT CLOTH | 86620-N3505 | OP | 7608 | 2 | No | No | 86620-N4305 | |
| 9 | TRIM BACK SEAT CLOTH | 86620-N3506 | OP | 7608 | 2 | ||||
| 9 | TRIM BACK SEAT DARK | 86620-N3403 | 7505 | 2 | |||||
| 9 | TRIM BACK SEAT DARK | 86620-N4302 | 7506 | 7607 | 2 | Yes | Yes | 86620-N3403 | |
| 9 | TRIM BACK SEAT DARK | 86620-N4701 | 7608 | 2 | No | No | 86620-N4302 | ||
| 10 | ASSY SLIDE WITH LEVE | 86500-E4100 | 7311 | 1 | |||||
| 10 | ASSY SLIDE WITH LEVE | 86500-N3400 | 7312 | 7408 | 1 | Yes | Yes | 86500-E4100 | |
| 10 | ASSY SLIDE WITH LEVE | 86500-N4500 | 7409 | 7607 | 1 | No | No | 86500-N3400 | |
| 10 | ASSY SLIDE WITH LEVE | 86500-N4700 | 7608 | 1 | No | No | 86500-N4500 | ||
| 11 | ASSY SLIDE WITH LEVE | 87500-E4100 | 7311 | 1 | |||||
| 11 | ASSY SLIDE WITH LEVE | 87500-N3400 | 7312 | 7408 | 1 | Yes | Yes | 87500-E4100 | |
| 11 | ASSY SLIDE WITH LEVE | 87500-N4500 | 7409 | 7607 | 1 | No | No | 87500-N3400 | |
| 11 | ASSY SLIDE WITH LEVE | 87500-N4700 | 7608 | 1 | No | No | 87500-N4500 | ||
| 12 | ASSY SLIDE LESS LEVE | 86550-N3601 | 7311 | 2 | |||||
| 12 | ASSY SLIDE LESS LEVE | 86550-N3602 | 7312 | 7408 | 2 | Yes | Yes | 86550-N3601 | |
| 12 | ASSY SLIDE LESS LEVE | 86550-N4200 | 7409 | 7607 | 2 | No | No | 86550-N3602 | |
| 12 | ASSY SLIDE LESS LEVE | 86550-N4700 | 7608 | 2 | No | No | 86550-N4200 | ||
| 13 | NUT HEX FIX SLIDE TO | 08911-10810 | 8 | ||||||
| 14 | WASHER LOCK FIX SLID | 08915-13810 | 8 | ||||||
| 15 | SPACER SEAT | 86511-E4100 | 7408 | 16 | |||||
| 16 | SPACER SEAT | 86510-E4100 | 7408 | 8 | |||||
| 17 | WASHER LOCK FIX SEAT | 08915-13810 | 7408 | 8 | |||||
| 18 | NUT HEX FIX SEAT TO | 08911-10810 | 7408 | 8 | |||||
| 19 | WASHER PLAON FIX SEA | 08915-43810 | 7408 | 8 | |||||
| 20 | BOLT HEX FIX SEAT TO | 08116-82037 | 7409 | 7607 | 8 | ||||
| 20 | BOLT HEX FIX SEAT TO | 08116-82547 | 7608 | 8 | |||||
| 21 | ASSY DEVICE SEAT REC | 86470-E8800 | 7602 | 1 | |||||
| 21 | ASSY DEVICE SEAT REC | 86470-N4500 | 7603 | 7607 | 1 | No | No | 86470-E8800 | |
| 21 | ASSY DEVICE SEAT REC | 86470-N4700 | 7608 | 1 | No | No | 86470-N4500 | ||
| 22 | ASSY-DEVICE | 87470-E8800 | 7602 | 1 | |||||
| 22 | ASSY-DEVICE | 87470-N4200 | 7603 | 7607 | 1 | No | No | 87470-E8800 | |
| 22 | ASSY-DEVICE | 87470-N4700 | 7608 | 1 | No | No | 87470-N4200 | ||
| 23 | COVER-DEVICE | 86475-N3400 | 7602 | 1 | |||||
| 23 | COVER-DEVICE | 86475-N4200 | 7603 | 7607 | 1 | No | No | 86475-N3400 | |
| 23 | COVER-DEVICE | 86475-N4700 | 7608 | 1 | No | No | 86475-N4200 | ||
| 24 | COVER-DEVICE | 87475-N3400 | 7602 | 1 | |||||
| 24 | COVER-DEVICE | 87475-N4200 | 7603 | 7607 | 1 | No | No | 87475-N3400 | |
| 24 | COVER-DEVICE | 87475-N4700 | 7608 | 1 | No | No | 87475-N4200 | ||
| 25 | COVER-DEVICE | 86478-N3400 | 7607 | 1 | |||||
| 25 | COVER-DEVICE | H6478-N3400 | 7607 | 1 | Yes | Yes | 86478-N3400 | ||
| 25 | COVER-DEVICE | 86478-N4700 | 7608 | 1 | No | No | 86478-N3400 | ||
| 26 | COVER-DEVICE | 87478-N3400 | 7607 | 1 | |||||
| 26 | COVER-DEVICE | H7478-N3400 | 7607 | 1 | Yes | Yes | 87478-N3400 | ||
| 26 | COVER-DEVICE | 87478-N4700 | 7608 | 1 | No | No | 87478-N3400 | ||
| 27 | ASSY-SPRING | 86480-E8210 | 7410 | 1 | |||||
| 27 | ASSY-SPRING | 86480-N4500 | 7411 | 7607 | 1 | Yes | Yes | 86480-E8210 | |
| 27 | ASSY-SPRING | 86480-N4700 | 7608 | 1 | No | No | 86480-N4500 | ||
| 28 | ASSY-SPRING | 87480-E8210 | 7410 | 1 | |||||
| 28 | ASSY-SPRING | 87480-N4500 | 7411 | 7607 | 1 | Yes | Yes | 87480-E8210 | |
| 28 | ASSY-SPRING | 87480-N4700 | 7608 | 1 | No | No | 87480-N4500 | ||
| 29 | SCREW-SPECIAL FIX DE | 86902-U0201 | 8 | ||||||
| 30 | SCREW-SPECIAL FIX DE | 86902-E8800 | 8 | ||||||
| 31 | WASHER-LOCK FIX DEVI | 08916-43810 | 8 |
