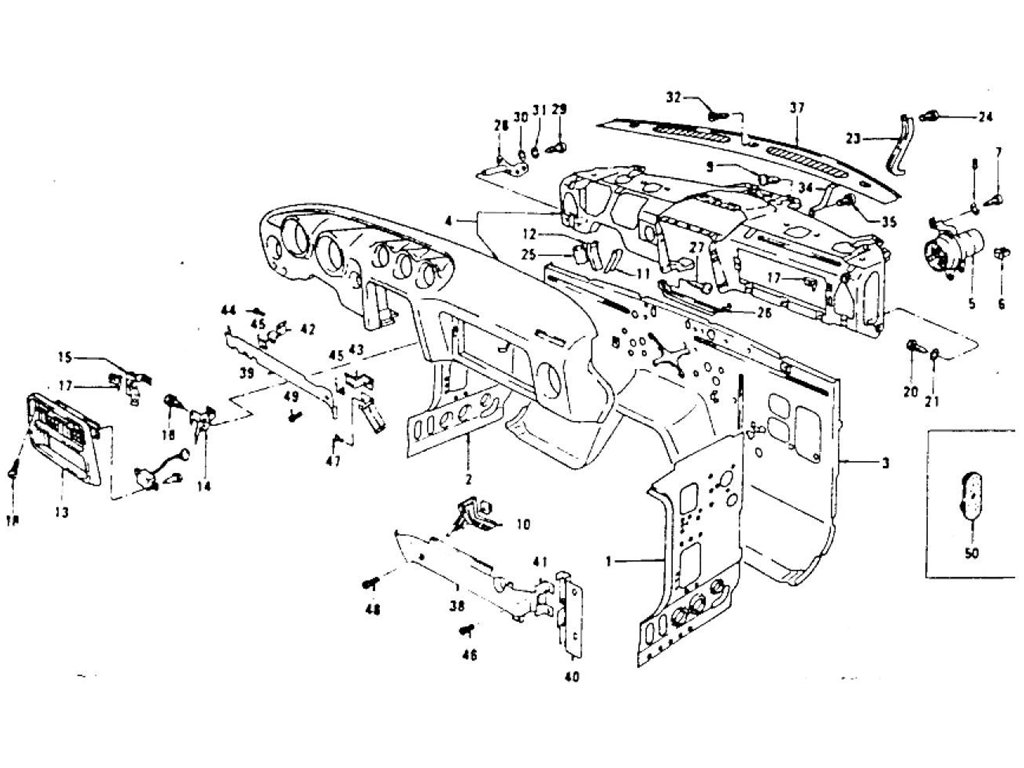

Dash Panel, Dash Side Panel & Instrument (2 Seater) (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-PANEL DASH SIDE | 66400-N3600 | 7408 | 1 | |||||
| 1 | ASSY-PANEL DASH SIDE | 66400-N4200 | 7409 | 7507 | 1 | No | No | 66400-N3600 | |
| 1 | ASSY-PANEL DASH SIDE | 66400-N4224 | U.S.A. | 7508 | 7601 | 1 | Yes | Yes | 66400-N4200 |
| 1 | ASSY-PANEL DASH SIDE | 66400-N4208 | U.S.A. | 7602 | 7607 | 1 | No | No | 66400-N4224 |
| 1 | ASSY-PANEL DASH SIDE | 66400-N4700 | U.S.A. | 7608 | 1 | ||||
| 2 | ASSY-PANEL DASH SIDE | 66401-N3600 | 7408 | 1 | |||||
| 2 | ASSY-PANEL DASH SIDE | 66401-N4310 | 7409 | 7411 | 1 | No | No | 66401-N3600 | |
| 2 | ASSY-PANEL DASH SIDE | 66401-N4200 | 7412 | 7507 | 1 | No | No | 66401-N4310 | |
| 2 | ASSY-PANEL DASH SIDE | 66401-N4220 | U.S.A. | 7508 | 7602 | 1 | No | No | 66401-N4200 |
| 2 | ASSY-PANEL DASH SIDE | 66401-N4312 | U.S.A. | 7603 | 1 | No | No | 66401-N4220 | |
| 2 | ASSY-PANEL DASH SIDE | 66401-N4700 | U.S.A. | 7608 | 1 | No | No | 66401-N4312 | |
| 3 | ASSY-PANEL DASH LOWE | 67100-N4311 | AUTOMATIC | 7409 | 7411 | 1 | No | No | 67100-N3626 |
| 3 | ASSY-PANEL DASH LOWE | 67100-N4201 | AUTOMATIC | 7412 | 1 | No | No | 67100-N4311 | |
| 3 | ASSY-PANEL DASH LOWE | 67100-N4700 | AUTOMATIC | 7608 | 7612 | 1 | |||
| 3 | ASSY-PANEL DASH LOWE | 67100-N7600 | AUTOMATIC | 7701 | 1 | Yes | Yes | 67100-N4700 | |
| 3 | ASSY-PANEL DASH LOWE | 67100-N3626 | AUTOMATIC & WEST GERMANY | 7408 | 1 | ||||
| 3 | ASSY-PANEL DASH LOWE | 67100-N3606 | MANUAL | 7408 | 1 | ||||
| 3 | ASSY-PANEL DASH LOWE | 67100-N4310 | MANUAL | 7409 | 7411 | 1 | No | No | 67100-N3606 |
| 3 | ASSY-PANEL DASH LOWE | 67100-N4200 | MANUAL | 7412 | 1 | No | No | 67100-N4310 | |
| 3 | ASSY-PANEL DASH LOWE | 67100-N4701 | MANUAL | 7608 | 7712 | 1 | |||
| 3 | ASSY-PANEL DASH LOWE | 67100-N7601 | MANUAL | 7701 | 1 | Yes | Yes | 67100-N4701 | |
| 4 | ASSH-PANEL | 68100-N3650 | 7411 | 1 | |||||
| 4 | ASSH-PANEL | 68100-N4250 | 7412 | 7607 | 1 | Yes | Yes | 68100-N3650 | |
| 4 | ASSH-PANEL | 68100-N4750 | 7608 | 1 | No | No | 68100-N4250 | ||
| 5 | ASSY-VENTILATOR INST | 68750-N3400 | 2 | ||||||
| 6 | SCREW-GROMMET MS | 96706-P0105 | 4 | ||||||
| 7 | SCREW-TAPPING | 08510-51212 | 4 | ||||||
| 8 | WASHER-IPLAIN | 74340-12161 | 4 | ||||||
| 9 | SCREW-MACHINE WITH W | 08363-61626 | K/ | 0 | |||||
| 10 | STAY-INSTRUMENT LOWE | 68245-N4202 | 1 | ||||||
| 11 | STAY-INSTRUMENT CENT | 68250-N3400 | 1 | ||||||
| 12 | 0STAY-INSTRUMENT CEN | 68251-N3400 | 1 | ||||||
| 12 | 0STAY-INSTRUMENT CEN | 68251-N4700 | 7608 | 1 | No | No | 68251-N3400 | ||
| 13 | ASSY-FINISHER | 68280-N3400 | 1 | ||||||
| 14 | ASSY-BRACKET | 68284-N3400 | 1 | ||||||
| 15 | ASSY-BRACKET | 68285-N3400 | 1 | ||||||
| 16 | SCREW-MACHINE W/WASH | 08313-51226 | 4 | ||||||
| 17 | NUT-SPRING MS FIX FI | 08963-10510 | 6 | ||||||
| 18 | SCREW-TAPPING FIX FI | 08520-51642 | 50 | ||||||
| 19 | SCREW-TAPPING FIX 3 | 08310-51612 | 2 | ||||||
| 20 | SCREW-TAPPING FIX PA | 08510-51212 | 21 | ||||||
| 21 | WASHER-PLAIN FIX PAD | 74340-12161 | 19 | ||||||
| 22 | WASHER-PLAIN FIX PAD | 08915-43610 | 2 | ||||||
| 23 | ASSY-STAY | 68255-N3401 | 2 | ||||||
| 24 | SCREW-MACHINE WITH W | 08313-51226 | 4 | ||||||
| 25 | PROTECTOR-INSTRUMENT | 68258-N3400 | 1 | ||||||
| 26 | REINF-INSTRUMENT PAN | 68260-N3400 | 1 | ||||||
| 27 | SCREW-WITH WASHER FI | 08360-51226 | 4 | ||||||
| 28 | ASSY-PLATE TRIP & IL | 68240-N3600 | 1 | ||||||
| 29 | SCREW-MACHINE FIX PL | 08450-51210 | 6 | Yes | Yes | 08450-51212 | |||
| 29 | SCREW-MACHINE FIX PL | 08450-51212 | 6 | ||||||
| 30 | WASHER-PLAIN FIX PLA | 74340-12161 | 6 | ||||||
| 31 | WASHER-PLAIN FIX PLA | 08915-13510 | 6 | ||||||
| 32 | SCREW-TAPPING FIX GA | 08530-51242 | 4 | ||||||
| 33 | SCREW-TAPPING FIX GA | 08963-10510 | 4 | ||||||
| 34 | SPRING-COMBINATION M | 68290-N3400 | 3 | ||||||
| 35 | SCREW-MACHINE WITH W | 08313-51226 | 3 | ||||||
| 36 | MASK-WARNING LAMP | 68282-N3400 | 1 | ||||||
| 37 | GARNISH-INSTRUMENT | 68310-N3600 | 1 | ||||||
| 38 | ASSY-COVER INSTRUMEN | 68860-N4200 | 1 | ||||||
| 39 | ASSY-COVER INSTRUMEN | 68870-N4700 | 1 | ||||||
| 40 | EXTENTION-INSTRUMENT | 68865-N4200 | 1 | ||||||
| 41 | SPRING-LOCK INSTRUME | 68866-N4200 | 2 | ||||||
| 42 | BRACKET-INSTRUMENT L | 68253-N4201 | 1 | ||||||
| 43 | BRACKET-INSTRUMENT L | 68252-N4700 | 1 | ||||||
| 44 | SCREW-MACHINE | 08310-61226 | 4 | ||||||
| 45 | NUT-SPRING B | 08964-10510 | 2 | Yes | Yes | 08964-10540 | |||
| 45 | NUT-SPRING B | 08964-10540 | 2 | ||||||
| 46 | SCREW-MACHINE | 08310-61614 | 2 | ||||||
| 47 | SCREW-MACHINE | 08360-61626 | 2 | ||||||
| 48 | SCREW-TAPPING | 08510-51697 | 2 | ||||||
| 49 | SCREW-TAPPING | 08510-52597 | 2 | ||||||
| 50 | GROMMET COOLER HOSE | 27681-N3400 | 7611 | 1 | |||||
| 50 | GROMMET COOLER HOSE | 27683-73000 | 7612 | 5 | Yes | Yes | 27681-N3400 |
