Search Item:Key: Part Name: Part Number:

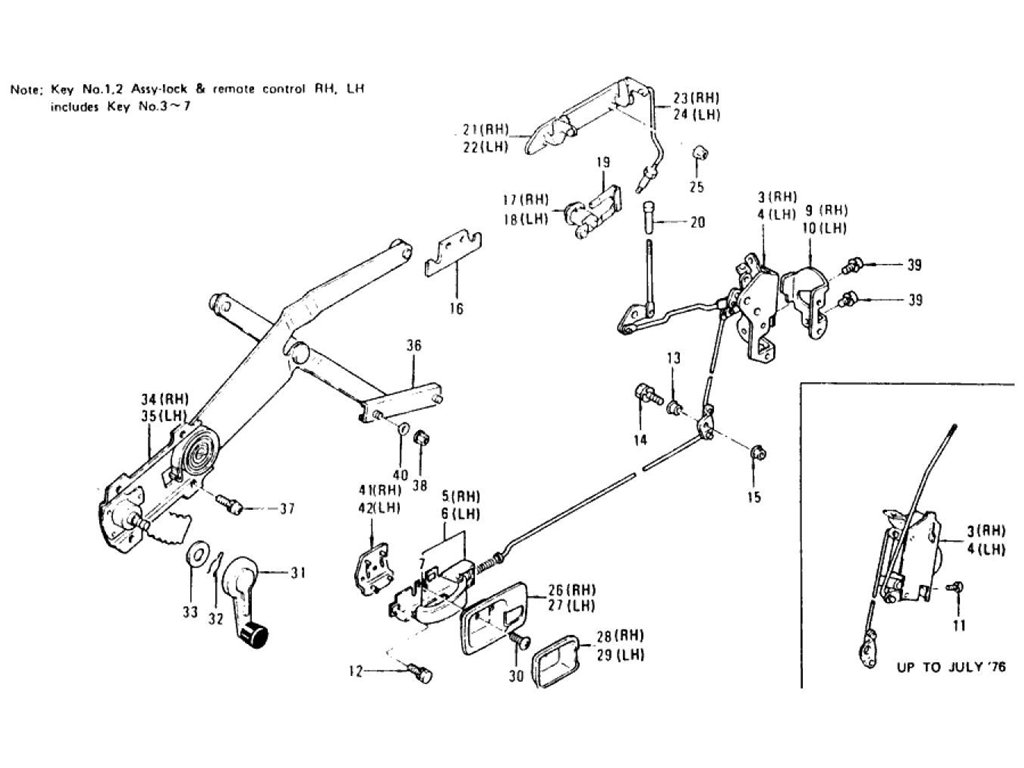

Door Lock, Window Regulator & Door Handle (2 Seater) (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-LOCK & REMOTE C | 80500-E4100 | 7607 | 1 | |||||
| 1 | ASSY-LOCK & REMOTE C | 80500-N4400 | 7608 | 1 | No | No | 80500-E4100 | ||
| 1 | ASSY-LOCK & REMOTE C | 80500-N7601 | 7708 | 1 | |||||
| 1 | ASSY-LOCK & REMOTE C | 80500-N7602 | 7708 | 1 | |||||
| 2 | ASSY-LOCK & REMOTE C | 80501-E4100 | 7607 | 1 | |||||
| 2 | ASSY-LOCK & REMOTE C | 80501-N4400 | 7608 | 1 | No | No | 80501-E4100 | ||
| 2 | ASSY-LOCK & REMOTE C | 80501-N7601 | 7708 | 1 | |||||
| 2 | ASSY-LOCK & REMOTE C | 80501-N7602 | 7708 | 1 | |||||
| 3 | ASSY-LOCK DOOR RH | 80502-E4100 | 7607 | 1 | |||||
| 3 | ASSY-LOCK DOOR RH | 80502-N4420 | 7608 | 1 | No | No | 80502-E4100 | ||
| 4 | ASSY-LOCK DOOR LH | 80503-E4100 | 7607 | 1 | |||||
| 4 | ASSY-LOCK DOOR LH | 80503-N4420 | 7608 | 1 | No | No | 80503-E4100 | ||
| 5 | ASSY-REMOTE CONTROL | 80504-N3000 | 7607 | 1 | |||||
| 5 | ASSY-REMOTE CONTROL | 80504-N4400 | 7608 | 1 | No | No | 80504-N3000 | ||
| 6 | ASSY-REMOTE CONTROL | 80505-N3000 | 7607 | 1 | |||||
| 6 | ASSY-REMOTE CONTROL | 80505-N4400 | 7608 | 1 | No | No | 80505-N3000 | ||
| 7 | ASSY-INSIDE HANDLE D | 80520-E4100 | 2 | ||||||
| 7 | ASSY-INSIDE HANDLE D | 80520-N7601 | 7708 | 2 | |||||
| 7 | ASSY-INSIDE HANDLE D | 80520-N7602 | 7708 | 2 | |||||
| 8 | DOVE-TAIL DOOR | 80530-N3400 | 7505 | 2 | |||||
| 8 | DOVE-TAIL DOOR | 80530-N4500 | 7506 | 7607 | 2 | Yes | Yes | 80530-N3400 | |
| 9 | RUBBER-SEATING RH | 80530-N4600 | 7608 | 1 | |||||
| 10 | RUBBER-SEATING LH | 80531-N4600 | 7608 | 1 | |||||
| 11 | SCREW-MACHINE | 01433-00021 | 7608 | 6 | |||||
| 11 | SCREW-MACHINE M6X1.0 | 08320-61219 | 7607 | 6 | |||||
| 12 | SCREW-MACHINE FIX RE | 08363-61226 | 4 | ||||||
| 13 | COLLAR-BELL CRANK | 80515-N3000 | 7607 | 4 | |||||
| 14 | BOLT-HEX FLANGE HEAD | 08363-61214 | 7607 | 2 | |||||
| 15 | NUT-FLANGE BELL CRAN | 01221-00033 | 7607 | 2 | |||||
| 16 | BAFFLE-OUTER HANDLE | 80680-B0700 | 2 | ||||||
| 17 | CYLINDER-LOCK DOOR R | 80600-E8201 | 1 | 80600-E8200 | |||||
| 18 | CYLINDER-LOCK DOOR L | 80601-E8200 | 1 | ||||||
| 18 | CYLINDER-LOCK DOOR L | 80601-E8201 | 1 | 80601-E8200 | |||||
| 19 | CLIP-RETAINING CYLIN | 80590-10601 | 2 | ||||||
| 20 | KNOB-DOOR LOCK (BEIG | 80595-N7602 | 7708 | 2 | |||||
| 20 | KNOB-DOOR LOCK (BLAC | 80595-N1600 | 2 | ||||||
| 20 | KNOB-DOOR LOCK (BROW | 80595-N7601 | 7708 | 2 | |||||
| 21 | ASSY-HANDLE DOOR OUT | 80605-E4100 | 7607 | 1 | |||||
| 21 | ASSY-HANDLE DOOR OUT | 80605-N4400 | 7608 | 1 | No | No | 80605-E4100 | ||
| 22 | ASSY-HANDLE DOOR OUT | 80606-E4100 | 7607 | 1 | |||||
| 22 | ASSY-HANDLE DOOR OUT | 80606-N4400 | 7608 | 1 | No | No | 80606-E4100 | ||
| 23 | ASSY-ROD HANDLE DOOR | 80608-E4101 | 7607 | 1 | |||||
| 23 | ASSY-ROD HANDLE DOOR | 80608-N4400 | 7608 | 1 | No | No | 80608-E4101 | ||
| 24 | ASSY-ROD HANDLE DOOR | 80609-E4101 | 7607 | 1 | |||||
| 24 | ASSY-ROD HANDLE DOOR | 80609-N4400 | 7608 | 1 | No | No | 80609-E4101 | ||
| 25 | NUT-FLANGE | 01221-00023 | 4 | ||||||
| 26 | ESCUTCHEON-REMOTE CO | 80512-E4100 | 1 | ||||||
| 27 | ESCUTCHEON-REMOTE CO | 80513-E4100 | 1 | ||||||
| 28 | COVER-ESCUTCHEON RH | 80517-E0101 | 1 | ||||||
| 28 | COVER-ESCUTCHEON RH | 80517-N7601 | 7708 | 1 | |||||
| 28 | COVER-ESCUTCHEON RH | 80517-N7602 | 7708 | 1 | |||||
| 29 | COVER-ESCUTCHEON LH | 80518-E0101 | 1 | ||||||
| 29 | COVER-ESCUTCHEON LH | 80518-N7601 | 7708 | 1 | |||||
| 29 | COVER-ESCUTCHEON LH | 80518-N7602 | 7708 | 1 | |||||
| 30 | SCREW-MACHINE | 08320-40812 | 2 | ||||||
| 31 | ASSY-HANDLE DOOR WIN | 80760-A0600 | 2 | ||||||
| 31 | ASSY-HANDLE DOOR WIN | 80760-N7601 | 7708 | 2 | |||||
| 31 | ASSY-HANDLE DOOR WIN | 80760-N7602 | 7708 | 2 | |||||
| 32 | 54229-0201P | 80673-A0600 | 2 | ||||||
| 33 | WASHER-SEATING HANDL | 80763-A0600 | 2 | ||||||
| 34 | ASSY-REGULATOR DOOR | 80700-N3400 | 7607 | 1 | |||||
| 34 | ASSY-REGULATOR DOOR | 80700-N4400 | 7608 | 1 | No | No | 80700-N3400 | ||
| 35 | ASSY-REGULATOR DOOR | 80701-N3400 | 7607 | 1 | |||||
| 35 | ASSY-REGULATOR DOOR | 80701-N4400 | 7608 | 1 | No | No | 80701-N3400 | ||
| 36 | ASSY-GUIDE DOOR WIND | 80710-21000 | 7607 | 2 | |||||
| 37 | SCREW-MACHINE M6X1.0 | 08310-61014 | 7607 | 8 | |||||
| 37 | SCREW-MACHINE M6X1.0 | 08360-61226 | 7608 | 8 | |||||
| 38 | NUT-FLANGE | 01221-00033 | 7607 | 4 | |||||
| 38 | SCREW-MACHINE | 08363-61226 | 7608 | 4 | |||||
| 39 | SCREW-MACHINE | 08310-51226 | 7608 | 8 | |||||
| 40 | WASHER-SPECIAL MB | 77740-89909 | 7607 | 4 | |||||
| 41 | BRACKET ASSY CONTROL | 80116-N3400 | 7607 | 1 | |||||
| 41 | BRACKET ASSY CONTROL | 80116-N4400 | 7608 | 1 | |||||
| 42 | BRACKET ASSY CONTROL | 80117-N3400 | 7607 | 1 | |||||
| 42 | BRACKET ASSY CONTROL | 80117-N4400 | 7608 | 1 |
