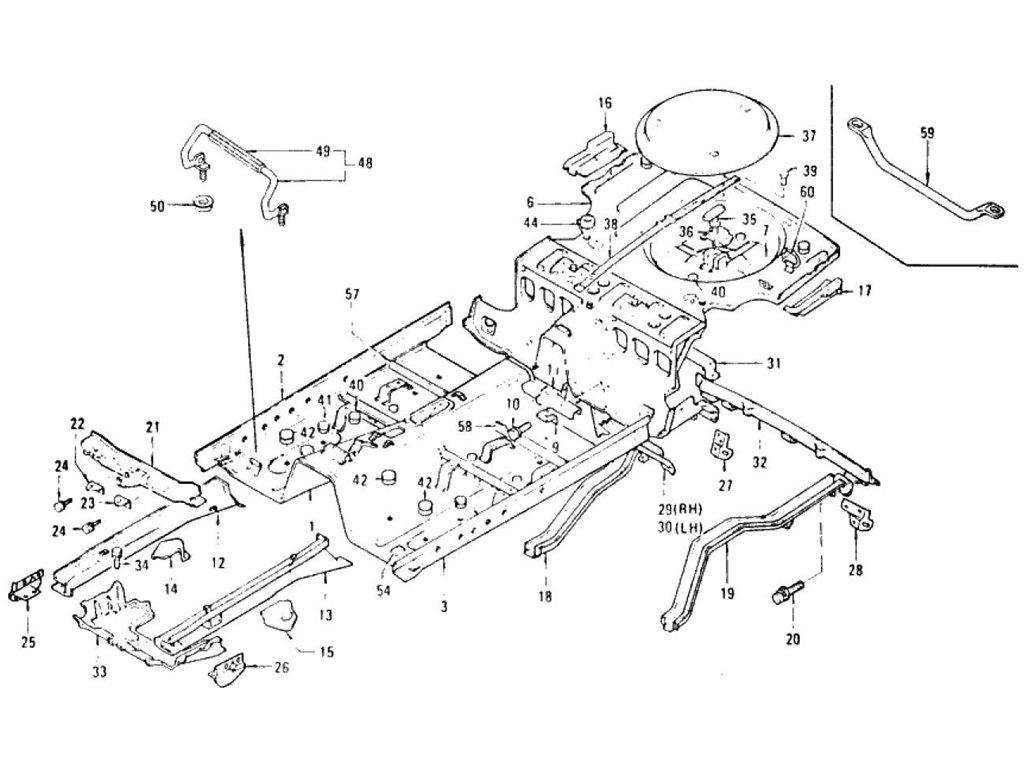

Floor Panel & Spare Tire Cover (2+2 Seater) (From Oct.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-FLOOR FRONT | 74300-N3631 | AUTOMATIC | 7408 | 1 | ||||
| 1 | ASSY-FLOOR FRONT | 74300-N4321 | AUTOMATIC | 7409 | 7411 | 1 | No | No | 74300-N3631 |
| 1 | ASSY-FLOOR FRONT | 74300-N4301 | CAL | AUTOMATIC | 7412 | 7607 | 1 | No | No |
| 1 | ASSY-FLOOR FRONT | 74300-N4801 | CAL | AUTOMATIC | 7608 | 1 | No | No | |
| 1 | ASSY-FLOOR FRONT | 74300-N4305 | CAL | MANUAL | 7412 | 7607 | 1 | No | No |
| 1 | ASSY-FLOOR FRONT | 74300-N4800 | CAL | MANUAL | 7608 | 1 | No | No | |
| 1 | ASSY-FLOOR FRONT | 74300-N4201 | FED CAN | AUTOMATIC | 7412 | 7607 | 1 | No | No |
| 1 | ASSY-FLOOR FRONT | 74300-N4220 | FED CAN | MANUAL | 7412 | 7607 | 1 | No | No |
| 1 | ASSY-FLOOR FRONT | 74300-N4701 | FED | AUTOMATIC | 7608 | 1 | No | No | |
| 1 | ASSY-FLOOR FRONT | 74300-N4700 | FED | MANUAL | 7608 | 1 | No | No | |
| 1 | ASSY-FLOOR FRONT | 74300-N3630 | MANUAL | 7408 | 1 | ||||
| 1 | ASSY-FLOOR FRONT | 74300-N4320 | MANUAL | 7409 | 7411 | 1 | No | No | 74300-N3630 |
| 2 | ASSY-PANEL SILL INNE | 76410-N3730 | 7607 | 1 | |||||
| 2 | ASSY-PANEL SILL INNE | 76410-N4630 | 7608 | 1 | No | No | 76410-N3730 | ||
| 3 | ASSY-PANEL SILL INEE | 76411-N4130 | 7411 | 1 | |||||
| 3 | ASSY-PANEL SILL INEE | 76411-N4222 | 7412 | 7607 | 1 | No | No | 76411-N4130 | |
| 3 | ASSY-PANEL SILL INEE | 76411-N4232 | 7412 | 7607 | 1 | Yes | Yes | 76411-N4222 | |
| 3 | ASSY-PANEL SILL INEE | 76411-N4730 | 7608 | 1 | No | No | 76411-N4232 | ||
| 4 | REINFORCE-PANEL SILL | 76417-N3700 | 7607 | 1 | |||||
| 4 | REINFORCE-PANEL SILL | 76417-N4610 | 7608 | 1 | No | No | 76417-N3700 | ||
| 5 | REINFORCE-PANEL SILL | 76418-N3700 | 7607 | 1 | |||||
| 5 | REINFORCE-PANEL SILL | 76418-N4610 | 7608 | 1 | No | No | 76418-N3700 | ||
| 6 | ASSY-REAR FLOOR | 74500-N4150 | 7408 | 1 | |||||
| 6 | ASSY-REAR FLOOR | 74500-N4231 | 7409 | 7411 | 1 | No | No | 74500-N4150 | |
| 6 | ASSY-REAR FLOOR | 74500-N4230 | 7412 | 7507 | 1 | No | No | 74500-N4231 | |
| 6 | ASSY-REAR FLOOR | 74500-N4232 | 7508 | 7607 | 1 | No | No | 74500-N4230 | |
| 6 | ASSY-REAR FLOOR | 74500-N4730 | 7608 | 7611 | 1 | No | No | 74500-N4232 | |
| 6 | ASSY-REAR FLOOR | 74500-N4732 | 7612 | 1 | No | No | 74500-N4730 | ||
| 7 | ASSY-HOUSING SPARE T | 74540-N3400 | 7408 | 1 | |||||
| 7 | ASSY-HOUSING SPARE T | 74540-N4500 | 7409 | 1 | No | No | 74540-N3400 | ||
| 7 | ASSY-HOUSING SPARE T | 74540-N4200 | 7412 | 1 | No | No | 74540-N4500 | ||
| 7 | ASSY-HOUSING SPARE T | 74540-N4701 | 7608 | 1 | |||||
| 8 | PANEL-EXT.REAR | 74506-N3700 | 7408 | 1 | |||||
| 8 | PANEL-EXT.REAR | 74505-N4220 | 7409 | 1 | No | No | 74506-N3700 | ||
| 9 | BRACKET-JACK UPPER | 74521-N3700 | 1 | ||||||
| 10 | BOLT | 08363-61626 | 3 | ||||||
| 11 | COVER-JACK | 74522-N4100 | 1 | ||||||
| 12 | ASSY-MEMBER FRONT RH | 74800-N4220 | 7409 | 1 | No | No | 74802-N4150 | ||
| 12 | ASSY-MEMBER FRONT RH | 74800-N7711 | U.S.A.AUTO | 1 | Yes | Yes | 74800-N4711 | ||
| 12 | ASSY-MEMBER FRONT RH | 74800-N4711 | U.S.A.AUTO | 7608 | 7707 | 1 | |||
| 12 | ASSY-MEMBER FRONT RH | 74800-N7610 | U.S.A.AUTO | 7708 | 1 | Yes | Yes | 74800-N7711 | |
| 12 | ASSY-MEMBER FRONT RH | 74800-N4710 | U.S.A.MANUAL | 7608 | 7707 | 1 | |||
| 12 | ASSY-MEMBER FRONT RH | 74800-N7610 | U.S.A.MANUAL | 7708 | 1 | No | No | 74800-N4710 | |
| 12 | ASSY-MEMBER SIDE FRO | 74802-N4150 | 7402 | 7408 | 1 | Yes | Yes | 74802-N4100 | |
| 12 | ASSY-MEMBER SIDE FRO | 74802-N4120 | AUTOMATIC | 7401 | 1 | ||||
| 12 | ASSY-MEMBER SIDE FRO | 74802-N4100 | MANUAL | 7401 | 1 | ||||
| 13 | ASSY-MEMBER SIDE FRO | 74803-N4100 | 7401 | 1 | |||||
| 13 | ASSY-MEMBER SIDE FRO | 74803-N4150 | 7402 | 7408 | 1 | Yes | Yes | 74803-N4100 | |
| 13 | ASSY-MEMBER SIDE FRO | 74801-N4220 | 7409 | 1 | No | No | 74803-N4150 | ||
| 13 | ASSY-MEMBER SIDE FRO | 74801-N4700 | 7608 | 7708 | 1 | ||||
| 13 | ASSY-MEMBER SIDE FRO | 74801-N4702 | 7608 | 7708 | 1 | Yes | Yes | 74801-N4700 | |
| 13 | ASSY-MEMBER SIDE FRO | 74800-N4702 | 7709 | 1 | Yes | Yes | 74801-N4702 | ||
| 14 | ASSY-BRACKET COMPRES | 74830-N3700 | 1 | ||||||
| 15 | ASSY-BRACKET COMPRES | 74831-N3700 | 1 | ||||||
| 16 | ASSY-MEMBER SHOCK AB | 74825-N4100 | 7607 | 1 | |||||
| 16 | ASSY-MEMBER SHOCK AB | 74825-N4710 | 7608 | 1 | No | No | 74825-N4100 | ||
| 17 | ASSY-MEMBER SHOCK AB | 74826-N4100 | 7607 | 1 | |||||
| 17 | ASSY-MEMBER SHOCK AB | 74826-N4710 | 7608 | 1 | No | No | 74826-N4100 | ||
| 18 | ASSY-MEMBER SIDE REA | 74842-N3700 | 7404 | 1 | |||||
| 18 | ASSY-MEMBER SIDE REA | 74842-N3730 | 7405 | 7408 | 1 | No | No | 74842-N3700 | |
| 18 | ASSY-MEMBER SIDE REA | 74842-N4310 | 7409 | 7411 | 1 | No | No | 74842-N3730 | |
| 18 | ASSY-MEMBER SIDE REA | 74842-N4200 | 7412 | 7607 | 1 | No | No | 74842-N4310 | |
| 18 | ASSY-MEMBER SIDE REA | 74842-N4700 | 7608 | 1 | No | No | 74842-N4200 | ||
| 19 | ASSY-MEMBER SIDE REA | 74843-N3700 | 7404 | 1 | |||||
| 19 | ASSY-MEMBER SIDE REA | 74843-N3730 | 7405 | 7408 | 1 | No | No | 74843-N3700 | |
| 19 | ASSY-MEMBER SIDE REA | 74843-N4500 | 7409 | 7607 | 1 | No | No | 74843-N3730 | |
| 19 | ASSY-MEMBER SIDE REA | 74843-N4700 | 7608 | 1 | No | No | 74843-N4500 | ||
| 20 | BOLT-HEX.WITH PLAIN | 08120-82533 | 2 | ||||||
| 21 | ASSY-MEMBER CROSS FR | 74820-N3000 | 7408 | 1 | |||||
| 21 | ASSY-MEMBER CROSS FR | 74820-N3200 | 7408 | 1 | Yes | Yes | 74820-N3000 | ||
| 21 | ASSY-MEMBER CROSS FR | 74820-N4200 | 7409 | 7411 | 1 | No | No | 74820-N3000 | |
| 21 | ASSY-MEMBER CROSS FR | 74820-N4201 | 7412 | 1 | No | No | 74820-N4200 | ||
| 22 | HOOK-TIE DOWN RH | 74823-N3000 | 1 | ||||||
| 23 | HOOK-TIE DOWN LH | 74824-N3000 | 1 | ||||||
| 24 | BOLT-HEX | 08124-02525 | 4 | ||||||
| 25 | ASSY-HOOK TIE DOWN | 75840-N4200 | 7508 | 1 | |||||
| 26 | ASSY-HOOK TIE DOWN | 75841-N4200 | 7508 | 1 | |||||
| 27 | ASSY-HOOK LASING REA | 85220-N4710 | 7508 | 1 | |||||
| 28 | ASSY-HOOK LASING REA | 85221-N4220 | 7508 | 1 | |||||
| 29 | ASSY-MEMBER CROSS DI | 74870-N3700 | 7408 | 1 | |||||
| 29 | ASSY-MEMBER CROSS DI | 74870-N4200 | 7409 | 1 | No | No | 74870-N3700 | ||
| 30 | ASSY-MEMBER CROSS DI | 74871-N3700 | 7408 | 1 | |||||
| 30 | ASSY-MEMBER CROSS DI | 74871-N4500 | 7409 | 1 | No | No | 74871-N3700 | ||
| 30 | ASSY-MEMBER CROSS DI | 74871-N4200 | 7412 | 1 | No | No | 74871-N4500 | ||
| 31 | ASSY-MEMBER CROSS DI | 74880-N3400 | 7408 | 1 | |||||
| 31 | ASSY-MEMBER CROSS DI | 74880-N4200 | 7409 | 7607 | 1 | No | No | 74880-N3400 | |
| 31 | ASSY-MEMBER CROSS DI | 74880-N4701 | 7608 | 1 | No | No | 74880-N4200 | ||
| 32 | ASSY-MEMBER CROSS RE | 74890-N4100 | 7408 | 1 | |||||
| 32 | ASSY-MEMBER CROSS RE | 74890-N4220 | 7409 | 7607 | 1 | No | No | 74890-N4100 | |
| 32 | ASSY-MEMBER CROSS RE | 74890-N4710 | 7608 | 1 | No | No | 74890-N4220 | ||
| 33 | SPLASH-BOARD ENGINE | 74810-E4100 | 7408 | 1 | |||||
| 33 | SPLASH-BOARD ENGINE | 74810-N4200 | 7409 | 1 | No | No | 74810-E4100 | ||
| 34 | SCREW-MACHINE HEX.HE | 08360-51226 | 9 | ||||||
| 35 | ASSY-CLAMP SPARE TIR | 57210-E4102 | 1 | ||||||
| 35 | ASSY-CLAMP SPARE TIR | 57210-E4200 | 1 | ||||||
| 35 | ASSY-CLAMP SPARE TIR | 57210-N4700 | 7707 | 1 | Yes | Yes | 57210-E4102 | ||
| 36 | PLATE CLAMP SPARE TI | 74631-N3000 | 1 | ||||||
| 37 | BOARD-COVER SPARE TI | 74971-E4100 | 1 | ||||||
| 37 | BOARD-COVER SPARE TI | 74971-N3200 | 1 | ||||||
| 38 | ASSY-BAND PARCEL (BL | 96850-E4100 | 2 | ||||||
| 38 | SERVICE FILE BAND-PARCEL BRN | 96850-N7601 | 7708 | 2 | |||||
| 39 | SCREW-MACHINE | 08363-61214 | 8 | ||||||
| 40 | PLUG-RUBBER (26D) | 77700-89914 | 10 | ||||||
| 41 | RUBBER-GROMMET | 74942-10900 | 4 | ||||||
| 42 | GROMMET-FLOOR | 74942-N3001 | 4 | ||||||
| 43 | MACHINE-SCREW | 08363-61626 | 2 | ||||||
| 44 | CAP-HOUSING REAR SUS | 74986-E4100 | 2 | ||||||
| 44 | CAP-HOUSING REAR SUS | 74986-N7611 | 7708 | 2 | |||||
| 44 | CAP-HOUSING REAR SUS | 74986-N7612 | 7708 | 2 | |||||
| 45 | RUBBER-GROMMET | 74942-N3000 | 1 | ||||||
| 46 | RUBBER-GROMMET | 67831-32200 | 1 | ||||||
| 47 | MACHINE-SCREW | 08310-51012 | 4 | ||||||
| 48 | ASSY-FOOT REST ASSIS | 75500-E4100 | OP | 7408 | 1 | ||||
| 48 | ASSY-FOOT REST ASSIS | 75500-N4200 | OP | 7409 | 1 | No | No | 75500-E4100 | |
| 49 | BUMPER-FOOT REST ASS | 75502-E4100 | OP | 1 | |||||
| 50 | NUT-FLANGE | 01221-00043 | OP | 2 | |||||
| 51 | PATCH-ASSIST FOOT RE | 74317-E4600 | OP | 1 | |||||
| 52 | PATCH-ASSIST FOOT RE | 74318-E4600 | OP | 1 | |||||
| 53 | SHIELD-DUST CHANGE L | 32869-E8700 | 1 | ||||||
| 54 | PAD-FOOT REST DRIVER | 67145-25500 | 1 | ||||||
| 55 | PACKING-DUST SHIELD | 74375-E8700 | 1 | ||||||
| 56 | SCREW-TAPPING | 08510-51642 | 4 | ||||||
| 57 | MEMBER-SEAT MOUNTING | 74338-N3600 | 1 | ||||||
| 58 | MEMBER-SEAT MOUNTING | 74339-N3600 | 1 | ||||||
| 59 | STOPPER LUGGAGE FLOO | 74964-N4710 | 7704 | 1 | |||||
| 60 | CLAMP-S.S.T | 99628-20750 | 1 |
