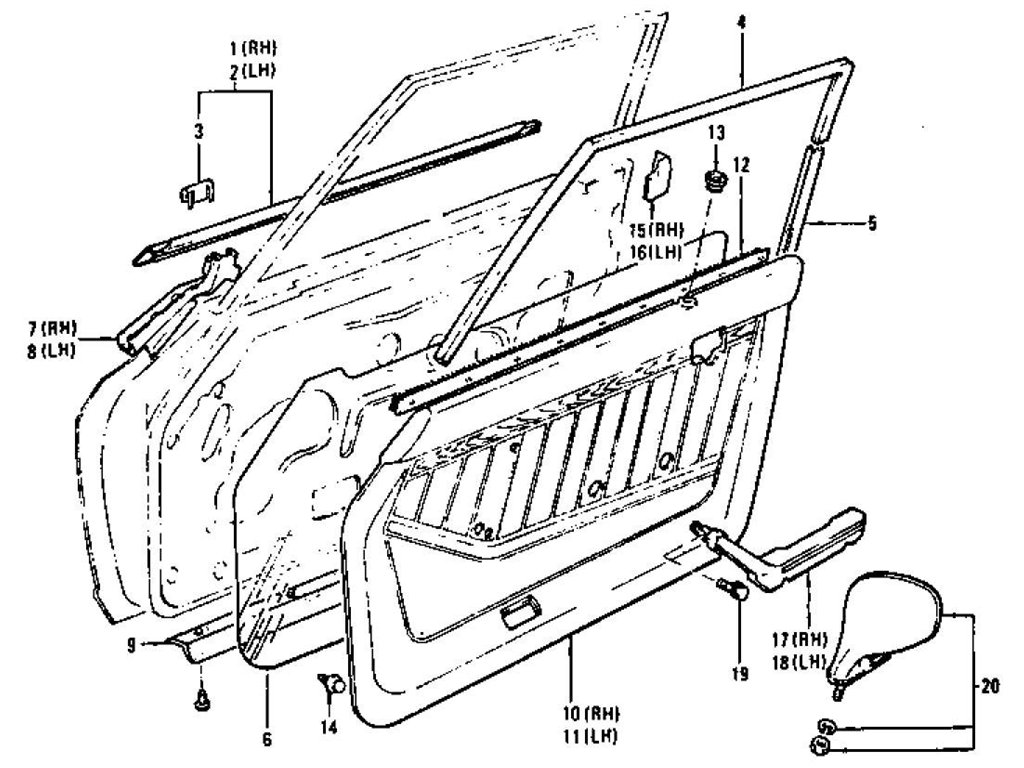

Door Moulding, Finisher, Arm Rest & Door Mirror (2+2 Seater) (From Oct.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY MOULDING DOOR O | 80820-N3700 | 7511 | 1 | |||||
| 1 | ASSY MOULDING DOOR O | 80820-N4420 | 7512 | 7712 | 1 | Yes | Yes | 80820-N3700 | |
| 1 | ASSY MOULDING DOOR O | 80820-N4421 | 7801 | 1 | Yes | Yes | 80820-N4420 | ||
| 2 | ASSY MOULDING DOOR O | 80821-N3700 | 7511 | 1 | |||||
| 2 | ASSY MOULDING DOOR O | 80821-N4420 | 7512 | 7712 | 1 | Yes | Yes | 80821-N3700 | |
| 2 | ASSY MOULDING DOOR O | 80821-N4421 | 7801 | 1 | Yes | Yes | 80821-N4420 | ||
| 3 | CLIP MOULDINGDOOR OU | 80835-N3700 | 5 | ||||||
| 4 | FELT GLASS RUN DOOR | 80335-N3700 | 7506 | 2 | |||||
| 4 | FELT GLASS RUN DOOR | 80335-N4520 | 7507 | 2 | No | No | 80335-N3700 | ||
| 5 | RUBBER GLASS RUN DOO | 80336-N3700 | 7607 | 2 | |||||
| 5 | RUBBER GLASS RUN DOO | 80336-N4600 | 7608 | 2 | No | No | 80336-N3700 | ||
| 6 | SEALING SCREEN DOOR | 80880-N3700 | 2 | ||||||
| 7 | RUBBER SEALING DOOR | 80931-N3400 | 7506 | 1 | |||||
| 7 | RUBBER SEALING DOOR | 80931-N4500 | 7506 | 1 | 80931-N3400 | ||||
| 7 | RUBBER SEALING DOOR | 80931-N4501 | 7507 | 1 | No | No | 80931-N3400 | ||
| 8 | RUBBER SEALING DOOR | 80932-N3400 | 7506 | 1 | |||||
| 8 | RUBBER SEALING DOOR | 80932-N4500 | 7506 | 1 | 80932-N3400 | ||||
| 8 | RUBBER SEALING DOOR | 80932-N4501 | 7507 | 1 | No | No | 80932-N3400 | ||
| 9 | RUBBER SEALING BODY | 80935-N3700 | 2 | ||||||
| 10 | ASSY FINISH DOOR RH | 80900-N4100 | 7607 | 1 | |||||
| 10 | ASSY FINISH DOOR RH | 80900-N4101 | 7408 | 1 | |||||
| 10 | ASSY FINISH DOOR RH | 80900-N4103 | 7607 | 1 | |||||
| 10 | ASSY FINISH DOOR RH | 80900-N4104 | 7607 | 1 | |||||
| 10 | ASSY FINISH DOOR RH | 80900-N4226 | 7608 | 1 | No | No | 80900-N4100 | ||
| 10 | ASSY FINISH DOOR RH | 80900-N4227 | 7608 | 7707 | 1 | No | No | 80900-N4104 | |
| 10 | ASSY FINISH DOOR RH | 80900-N4228 | 7608 | 7707 | 1 | No | No | 80900-N4103 | |
| 10 | ASSY FINISH DOOR RH | 80900-N7611 | 7708 | 1 | Yes | Yes | 80900-N4227 | ||
| 10 | ASSY FINISH DOOR RH | 80900-N7612 | 7708 | 1 | Yes | Yes | 80900-N4228 | ||
| 11 | ASSY FINISH DOOR LH | 80901-N4100 | 7607 | 1 | |||||
| 11 | ASSY FINISH DOOR LH | 80901-N4101 | 7408 | 1 | |||||
| 11 | ASSY FINISH DOOR LH | 80901-N4103 | 7607 | 1 | |||||
| 11 | ASSY FINISH DOOR LH | 80901-N4104 | 7607 | 1 | |||||
| 11 | ASSY FINISH DOOR LH | 80901-N4226 | 7608 | 1 | No | No | 80901-N4100 | ||
| 11 | ASSY FINISH DOOR LH | 80901-N4227 | 7608 | 7707 | 1 | No | No | 80901-N4104 | |
| 11 | ASSY FINISH DOOR LH | 80901-N4228 | 7608 | 7707 | 1 | No | No | 80901-N4103 | |
| 11 | ASSY FINISH DOOR LH | 80901-N7611 | 7708 | 1 | Yes | Yes | 80901-N4226 | ||
| 11 | ASSY FINISH DOOR LH | 80901-N7612 | 7708 | 1 | Yes | Yes | 80901-N4228 | ||
| 12 | ASSY WEATEHERSTRIP D | 80845-N3700 | 1 | ||||||
| 12 | ASSY WEATHERSTRIP DO | 80846-N3700 | 1 | ||||||
| 13 | GROMMET LOCK KNOB | 80970-78500 | 2 | ||||||
| 13 | GROMMET LOCK KNOB BE | 80970-N7602 | 7708 | 2 | |||||
| 13 | GROMMET LOCK KNOB BL | 80970-N4400 | 2 | ||||||
| 13 | GROMMET LOCK KNOB BR | 80970-N7601 | 7708 | 2 | |||||
| 14 | CLIP TRIM BOARD | 01553-00042 | 18 | ||||||
| 15 | PROTECTOR SEALING DO | 80933-N4500 | 7511 | 1 | |||||
| 16 | PROTECTOR SEALING DO | 80934-N4500 | 7511 | 1 | |||||
| 17 | ASSY ARM REST DOOR R | 80940-N3700 | 1 | ||||||
| 17 | ASSY ARM REST DOOR R | 80940-N3730 | 7512 | 1 | Yes | Yes | 80940-N3700 | ||
| 17 | ASSY ARM REST DOOR R | 80940-N4610 | 7601 | 1 | Yes | Yes | 80940-N3730 | ||
| 17 | ASSY ARM REST DOOR R | 80940-N4611 | 7608 | 1 | |||||
| 17 | ASSY ARM REST DOOR R | 80940-N4612 | 7608 | 1 | |||||
| 18 | ASSY ARM REST DOOR L | 80941-N3700 | 1 | ||||||
| 18 | ASSY ARM REST DOOR L | 80941-N3730 | 7512 | 1 | Yes | Yes | 80941-N3700 | ||
| 18 | ASSY ARM REST DOOR L | 80941-N4610 | 7601 | 1 | Yes | Yes | 80941-N3730 | ||
| 18 | ASSY ARM REST DOOR L | 80941-N4611 | 7608 | 1 | |||||
| 18 | ASSY ARM REST DOOR L | 80941-N4612 | 7608 | 1 | |||||
| 19 | SCREW MACHINE M6X10 | 08440-61612 | 6 | ||||||
| 20 | ASSY BACK MIRROR DOO | 96302-N3600 | 7607 | 1 | |||||
| 20 | ASSY BACK MIRROR DOO | 96302-N4700 | 7608 | 1 | Yes | Yes | 96302-N3600 |
