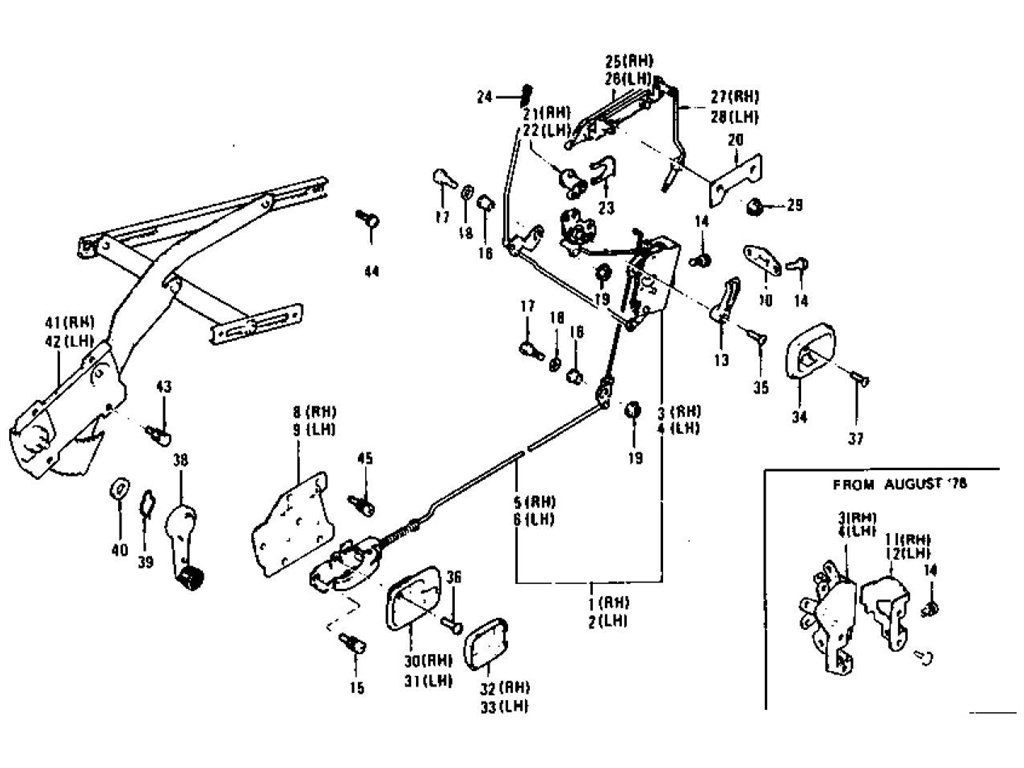

Door Lock, Window Regulator & Door Handle (2+2 Seater) (From Oct.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY LOCK & REMOTE C | 80500-N3700 | 7607 | 1 | |||||
| 1 | ASSY LOCK & REMOTE C | 80500-N4420 | 7608 | 1 | No | No | 80500-N3700 | ||
| 1 | ASSY LOCK & REMOTE C | 80500-N7611 | 7708 | 1 | |||||
| 1 | ASSY LOCK & REMOTE C | 80500-N7612 | 7708 | 1 | |||||
| 2 | ASSY LOCK & REMOTE C | 80501-N3700 | 7607 | 1 | |||||
| 2 | ASSY LOCK & REMOTE C | 80501-N4420 | 7608 | 1 | No | No | 80501-N3700 | ||
| 2 | ASSY LOCK & REMOTE C | 80501-N7611 | 7708 | 1 | |||||
| 2 | ASSY LOCK & REMOTE C | 80501-N7612 | 7708 | 1 | |||||
| 3 | ASSY LOCK DOOR RH | 80502-N3700 | 7607 | 1 | |||||
| 3 | ASSY LOCK DOOR RH | 80502-N4420 | 7608 | 1 | No | No | 80502-N3700 | ||
| 4 | ASSY LOCK DOOR LH | 80503-N3700 | 7607 | 1 | |||||
| 4 | ASSY LOCK DOOR LH | 80503-N4420 | 7608 | 1 | No | No | 80503-N3700 | ||
| 5 | ASSY REMOTE CONTROL | 80504-N4420 | 7608 | 1 | No | No | 80504-N3700 | ||
| 5 | ASSY REMOTE CONTROLD | 80504-N3700 | 7607 | 1 | |||||
| 6 | ASSY REMOTE CONTROL | 80505-N3700 | 7607 | 1 | |||||
| 6 | ASSY REMOTE CONTROL | 80505-N4420 | 7608 | 1 | No | No | 80505-N3700 | ||
| 7 | ASSY INSIDE HANDLE D | 80520-E4100 | 1 | ||||||
| 7 | ASSY INSIDE HANDLE D | 80520-N7601 | 7708 | 1 | |||||
| 7 | ASSY INSIDE HANDLE D | 80520-N7602 | 7708 | 1 | |||||
| 8 | ASSY BRACKET REMOTE | 80116-N3700 | 7607 | 1 | |||||
| 9 | ASSY BRACKET REMOTE | 80117-N3700 | 7607 | 1 | |||||
| 10 | DOVE TAIL DOOR | 80530-N3400 | 7503 | 2 | |||||
| 10 | DOVE TAIL DOOR | 80530-N4500 | 7504 | 7607 | 2 | Yes | Yes | 80530-N3400 | |
| 11 | RUBBER SEATING RH | 80530-N4600 | 7608 | 1 | |||||
| 12 | RUBBER SEATING LH | 80531-N4600 | 7608 | 1 | |||||
| 13 | HANDLE DOOR INSIDE R | 80535-N3700 | 2 | ||||||
| 13 | HANDLE DOOR INSIDE R | 80535-N7611 | 7708 | 2 | |||||
| 13 | HANDLE DOOR INSIDE R | 80535-N7612 | 7708 | 2 | |||||
| 14 | SCREW MACHINE | 08320-61219 | 7607 | 6 | |||||
| 14 | SCREW MACHINE | 01433-00021 | 7608 | 6 | |||||
| 15 | SCREW PAN HEAD | 08363-61226 | 6 | ||||||
| 16 | COLLAR BELL CRANK | 80515-N3000 | 7607 | 4 | |||||
| 17 | BOLT SPECIAL | 80516-N3000 | 7607 | 4 | |||||
| 18 | WASHER PLAIN | 08915-43810 | 7607 | 4 | |||||
| 19 | NUT FLANGE BELL CRAN | 01221-00033 | 7607 | 4 | |||||
| 20 | BAFFLE OUTER HANDLE | 80680-B0700 | 2 | ||||||
| 21 | CYLINDER LOCK DOOR R | 80600-E8200 | 1 | ||||||
| 21 | CYLINDER LOCK DOOR R | 80600-E8201 | 1 | Yes | Yes | 80600-E8200 | |||
| 21 | CYLINDER LOCK DOOR R | 80600-N4400 | 7508 | 1 | No | No | 80600-E8201 | ||
| 22 | CYLINDER LOCK DOOR L | 80601-E8200 | 1 | ||||||
| 22 | CYLINDER LOCK DOOR L | 80601-E8201 | 1 | Yes | Yes | 80601-E8200 | |||
| 22 | CYLINDER LOCK DOOR L | 80601-N4400 | 7508 | 1 | No | No | 80601-E8201 | ||
| 23 | CLIP RETAINING CYLID | 80590-10601 | 2 | ||||||
| 24 | KNOB DOOR LOCK BEIGE | 80595-N7602 | 7708 | 2 | |||||
| 24 | KNOB DOOR LOCK BLACK | 80595-N1600 | 2 | ||||||
| 24 | KNOB DOOR LOCK BROWN | 80595-N7601 | 7708 | 2 | |||||
| 25 | ASSY HANDLE DOOR OUT | 80605-E4100 | 7607 | 1 | |||||
| 25 | ASSY HANDLE DOOR OUT | 80605-N4400 | 7608 | 1 | No | No | 80605-E4100 | ||
| 26 | ASSY HANDLE DOOR OUT | 80606-E4100 | 7607 | 1 | |||||
| 26 | ASSY HANDLE DOOR OUT | 80606-N4400 | 7608 | 1 | No | No | 80606-E4100 | ||
| 27 | ASSY ROD HANDLE DOOR | 80608-E4101 | 7607 | 1 | |||||
| 27 | ASSY ROD HANDLE DOOR | 80608-N4400 | 7608 | 1 | No | No | 80608-E4101 | ||
| 28 | ASSY ROD HANDLE DOOR | 80609-E4101 | 7607 | 1 | |||||
| 28 | ASSY ROD HANDLE DOOR | 80609-N4400 | 7608 | 1 | No | No | 80609-E4101 | ||
| 29 | NUT FLANGE | 01221-00023 | 4 | ||||||
| 30 | ESCUTCHEON REMOTE CO | 80512-E4100 | 1 | ||||||
| 31 | ESCUTCHEON REMOTE CO | 80513-E4100 | 1 | ||||||
| 32 | COVER ESCUTCHEON RH | 80517-N7601 | 7708 | 1 | |||||
| 32 | COVER ESCUTCHEON RH | 80517-N7602 | 7708 | 1 | |||||
| 32 | COVER ESCUTCHEONRH B | 80517-E0101 | 1 | ||||||
| 33 | COVER ESCUTCHEON LH | 80518-E0101 | 1 | ||||||
| 33 | COVER ESCUTCHEON LH | 80518-N7601 | 7708 | 1 | |||||
| 33 | COVER ESCUTCHEON LH | 80518-N7602 | 7708 | 1 | |||||
| 34 | ESCUTCHEON REMOTE CO | 80542-N3700 | 2 | ||||||
| 34 | ESCUTCHEON REMOTE CO | 80542-N7611 | 7708 | 1 | |||||
| 34 | ESCUTCHEON REMOTE CO | 80542-N7612 | 7708 | 1 | |||||
| 35 | SCREW MACHINE | 08420-51242 | 2 | ||||||
| 35 | SCREW MACHINE | 08420-51220 | 7708 | 2 | |||||
| 36 | SCREW MACHINE | 08320-40812 | 2 | ||||||
| 37 | SCREW MACHINE | 08420-52042 | 2 | ||||||
| 38 | ASSY HANDLE DOOR WIN | 80760-A0600 | 2 | ||||||
| 38 | ASSY HANDLE DOOR WIN | 80760-N7601 | 7708 | 2 | |||||
| 38 | ASSY HANDLE DOOR WIN | 80760-N7602 | 7708 | 2 | |||||
| 39 | 54229-0201P | 80673-A0600 | 2 | ||||||
| 40 | WASHER SEATING HANDL | 80763-A0600 | 2 | ||||||
| 41 | ASSY REGULATOR DOOR | 80700-N3700 | 7607 | 1 | |||||
| 41 | ASSY REGULATOR DOOR | 80700-N4400 | 7608 | 1 | No | No | 80700-N3700 | ||
| 42 | ASSY REGULATOR DOOR | 80701-N3700 | 7607 | 1 | |||||
| 42 | ASSY REGULATOR DOOR | 80701-N4400 | 7608 | 1 | No | No | 80701-N3700 | ||
| 43 | BOLT | 01125-00022 | 7607 | 8 | |||||
| 43 | BOLT | 01125-00092 | 7607 | 8 | Yes | Yes | 01125-00022 | ||
| 43 | SCREW MACHINE | 08360-61226 | 7608 | 8 | |||||
| 44 | SCREW MACHINE M6X1.0 | 08363-61226 | 4 | ||||||
| 45 | SCREW MACHINE | 08310-51226 | 8 |
