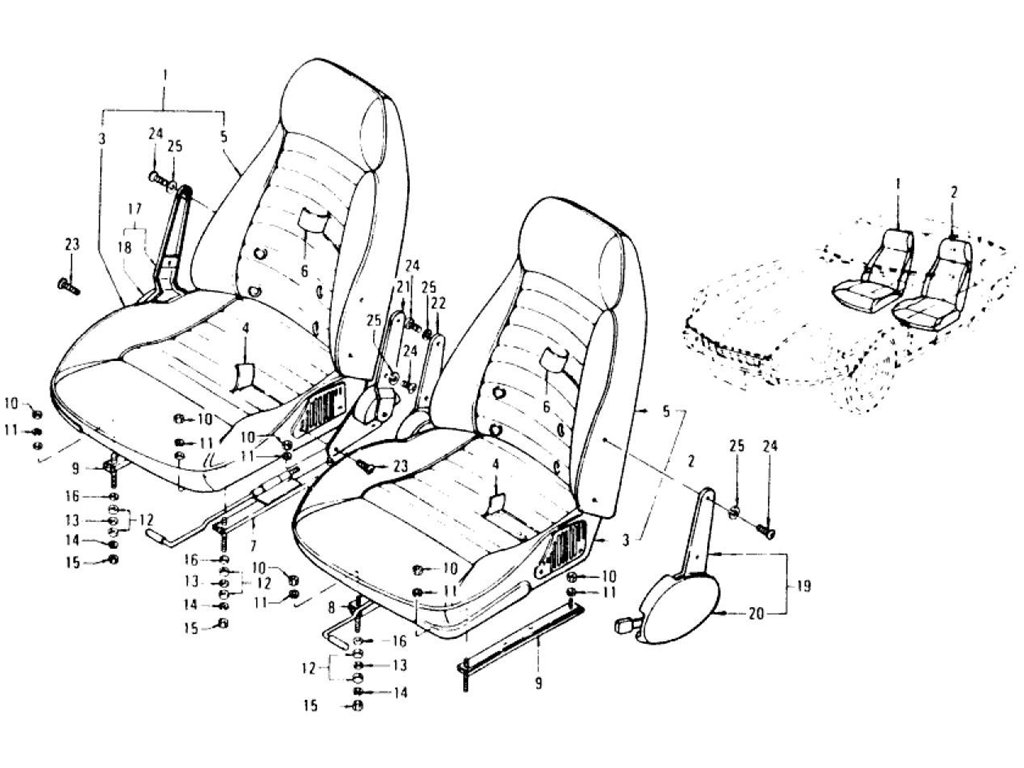

Seat & Slide (Type 2 Reclining Seat) (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COMP-SEAT RH BEIGE | 86000-N3302 | 7207 | 1 | No | No | 86000-E8862 | ||
| 1 | COMP-SEAT RH BLACK | 86000-E8860 | 7201 | 7206 | 1 | Yes | Yes | 86000-E8840 | |
| 1 | COMP-SEAT RH BLACK | 86000-N3300 | 7207 | 1 | No | No | 86000-E8860 | ||
| 1 | COMP-SEAT RH BLACK | 86000-E8303 | OP | 7104 | 1 | ||||
| 1 | COMP-SEAT RH BLACK | 86000-E8840 | OP | 7105 | 1 | Yes | Yes | 86000-E8303 | |
| 1 | COMP-SEAT RH BLUE | 86000-E8305 | OP | 7104 | 1 | ||||
| 1 | COMP-SEAT RH BROWN | 86000-E8861 | 7201 | 1 | No | No | 86000-E8841 | ||
| 1 | COMP-SEAT RH BROWN | 86000-N3301 | 7207 | 1 | No | No | 86000-E8861 | ||
| 1 | COMP-SEAT RH BROWN | 86000-E8304 | OP | 7104 | 1 | ||||
| 1 | COMP-SEAT RH BROWN | 86000-E8841 | OP | 7105 | 1 | Yes | Yes | 86000-E8304 | |
| 1 | COMP-SEAT RH RED | 86000-E8863 | 7201 | 7206 | 1 | Yes | Yes | 86000-E8843 | |
| 1 | COMP-SEAT RH RED | 86000-N3303 | 7207 | 1 | No | No | 86000-E8863 | ||
| 1 | COMP-SEAT RH RED | 86000-E8843 | OP | 1 | |||||
| 1 | COMP-SEAT RH WHITE | 86000-E8862 | 7201 | 7206 | 1 | Yes | Yes | 86000-E8842 | |
| 1 | COMP-SEAT RH WHITE | 86000-E8842 | OP | 1 | |||||
| 2 | COMP-SEAT LH BEIGE | 87000-N3302 | 7207 | 1 | Yes | Yes | 87000-E8846 | ||
| 2 | COMP-SEAT LH BLACK | 87000-E8844 | 7201 | 7206 | 1 | Yes | Yes | 87000-E8840 | |
| 2 | COMP-SEAT LH BLACK | 87000-N3300 | 7207 | 1 | No | No | 87000-E8844 | ||
| 2 | COMP-SEAT LH BLACK | 87000-E8300 | OP | 7103 | 7104 | 1 | Yes | Yes | 87000-E4613 |
| 2 | COMP-SEAT LH BLACK | 87000-E8217 | OP | 7105 | 1 | Yes | Yes | 87000-E8300 | |
| 2 | COMP-SEAT LH BLUE | 87000-E8302 | OP | 7104 | 1 | Yes | Yes | 87000-E4615 | |
| 2 | COMP-SEAT LH BROWN | 87000-E8845 | 7201 | 7206 | 1 | Yes | Yes | 87000-E8841 | |
| 2 | COMP-SEAT LH BROWN | 87000-N3301 | 7207 | 1 | No | No | 87000-E8845 | ||
| 2 | COMP-SEAT LH BROWN | 87000-E8301 | OP | 7103 | 7104 | 1 | Yes | Yes | 87000-E4614 |
| 2 | COMP-SEAT LH RED | 87000-E8847 | 7201 | 7206 | 1 | Yes | Yes | 87000-E8843 | |
| 2 | COMP-SEAT LH RED | 87000-N3303 | 7207 | 1 | No | No | 87000-E8847 | ||
| 2 | COMP-SEAT LH RED | 87000-E8843 | OP | 7112 | 1 | ||||
| 2 | COMP-SEAT LH WHITE | 87000-E8846 | 7201 | 7206 | 1 | Yes | Yes | 87000-E8842 | |
| 2 | COMP-SEAT LH WHITE | 87000-E8842 | OP | 7112 | 1 | ||||
| 3 | ASSY-SEAT CUSHION BE | 86300-N3302 | 7207 | 1 | Yes | Yes | 86300-E8862 | ||
| 3 | ASSY-SEAT CUSHION BE | 87300-N3302 | 7207 | 1 | Yes | Yes | 86300-E8812 | ||
| 3 | ASSY-SEAT CUSHION BL | 86300-E4102 | 7104 | 2 | |||||
| 3 | ASSY-SEAT CUSHION BL | 86300-E4601 | 7104 | 2 | |||||
| 3 | ASSY-SEAT CUSHION BL | 86300-E8210 | 7105 | 7112 | 2 | Yes | Yes | 86300-E4102 | |
| 3 | ASSY-SEAT CUSHION BL | 86300-E8212 | 7105 | 2 | Yes | Yes | 86300-E4601 | ||
| 3 | ASSY-SEAT CUSHION BL | 86300-E8810 | 7201 | 7206 | 1 | Yes | Yes | 86300-E8210 | |
| 3 | ASSY-SEAT CUSHION BL | 86300-E8860 | 7201 | 7206 | 1 | Yes | Yes | 86300-E8210 | |
| 3 | ASSY-SEAT CUSHION BL | 86300-N3300 | 7207 | 1 | No | No | 86300-E8860 | ||
| 3 | ASSY-SEAT CUSHION BL | 87300-N3300 | 7207 | 1 | No | No | 86300-E8810 | ||
| 3 | ASSY-SEAT CUSHION BR | 86300-E4103 | 7104 | 2 | |||||
| 3 | ASSY-SEAT CUSHION BR | 86300-E8211 | 7105 | 7112 | 2 | Yes | Yes | 86300-E4103 | |
| 3 | ASSY-SEAT CUSHION BR | 86300-E8811 | 7201 | 7206 | 1 | Yes | Yes | 86300-E8211 | |
| 3 | ASSY-SEAT CUSHION BR | 86300-E8861 | 7201 | 7206 | 1 | Yes | Yes | 86300-E8211 | |
| 3 | ASSY-SEAT CUSHION BR | 86300-N3301 | 7207 | 1 | No | No | 86300-E8861 | ||
| 3 | ASSY-SEAT CUSHION BR | 87300-N3301 | 7207 | 1 | No | No | 86300-E8811 | ||
| 3 | ASSY-SEAT CUSHION RE | 86300-E8801 | 7112 | 2 | |||||
| 3 | ASSY-SEAT CUSHION RE | 86300-E8813 | 7201 | 7206 | 1 | Yes | Yes | 86300-E8801 | |
| 3 | ASSY-SEAT CUSHION RE | 86300-E8863 | 7201 | 7206 | 1 | Yes | Yes | 86300-E8801 | |
| 3 | ASSY-SEAT CUSHION RE | 86300-N3303 | 7207 | 1 | No | No | 86300-E8863 | ||
| 3 | ASSY-SEAT CUSHION RE | 87300-N3303 | 7207 | 1 | No | No | |||
| 3 | ASSY-SEAT CUSHION WH | 86300-E8800 | 7112 | 2 | |||||
| 3 | ASSY-SEAT CUSHION WH | 86300-E8812 | 7201 | 7206 | 1 | Yes | Yes | 86300-E8800 | |
| 3 | ASSY-SEAT CUSHION WH | 86300-E8862 | 7201 | 7206 | 1 | Yes | Yes | 86300-E8800 | |
| 4 | COVER-SEAT RED_OOP | 86320-E8801 | 7206 | 2 | |||||
| 4 | TRIM-CUSHION BEIGE | 86320-N3302 | 7207 | 2 | No | No | 86320-E4600 | ||
| 4 | TRIM-CUSHION BLACK | 86320-E4100 | 7104 | 2 | |||||
| 4 | TRIM-CUSHION BLACK | 86320-E8210 | 7105 | 7206 | 2 | Yes | Yes | 86320-E4100 | |
| 4 | TRIM-CUSHION BLACK | 86320-N3300 | 7207 | 2 | No | No | 86320-E8210 | ||
| 4 | TRIM-CUSHION BLUE | 86320-E4600 | 7104 | 2 | |||||
| 4 | TRIM-CUSHION BLUE | 86320-E8212 | 7105 | 2 | Yes | Yes | 86320-E4600 | ||
| 4 | TRIM-CUSHION BROWN | 86320-E4101 | 7104 | 2 | |||||
| 4 | TRIM-CUSHION BROWN | 86320-E8211 | 7105 | 7206 | 2 | Yes | Yes | 86320-E4101 | |
| 4 | TRIM-CUSHION BROWN | 86320-N3301 | 7207 | 2 | No | No | 86320-E8210 | ||
| 4 | TRIM-CUSHION RED | 86320-N3303 | 7207 | 2 | No | No | 86320-E8801 | ||
| 4 | TRIM-CUSHION WHITE | 86320-E8800 | 7206 | 2 | |||||
| 5 | ASSY-SEAT BACK BLACK | 86600-E4102 | 6912 | 2 | |||||
| 5 | ASSY-SEAT BACK BLACK | 86600-E4104 | 7101 | 7104 | 2 | Yes | Yes | 86600-E4102 | |
| 5 | ASSY-SEAT BACK BLACK | 86600-E8210 | 7105 | 2 | Yes | Yes | 86600-E4104 | ||
| 5 | ASSY-SEAT BACK BLUE | 86600-E4601 | 6912 | 2 | |||||
| 5 | ASSY-SEAT BACK BLUE | 86600-E8212 | 2 | ||||||
| 5 | ASSY-SEAT BACK BLUE | 86600-E4602 | 7001 | 2 | Yes | Yes | 86600-E4601 | ||
| 5 | ASSY-SEAT BACK BROWN | 86600-E4103 | 5912 | 2 | |||||
| 5 | ASSY-SEAT BACK BROWN | 86600-E4105 | 7001 | 7102 | 2 | Yes | Yes | 86600-E4103 | |
| 5 | ASSY-SEAT BACK BROWN | 86600-E8211 | 7103 | 7112 | 2 | Yes | Yes | 86600-E4105 | |
| 5 | ASSY-SEAT BACK LH BL | 87600-E8820 | 7201 | 7206 | 1 | Yes | Yes | 86600-E8210 | |
| 5 | ASSY-SEAT BACK LH BL | 87600-N3300 | 7207 | 1 | No | No | 87600-E8820 | ||
| 5 | ASSY-SEAT BACK LH RE | 87600-E8823 | 7206 | 1 | |||||
| 5 | ASSY-SEAT BACK LH RE | 87600-N3303 | 7207 | 1 | No | No | 87600-E8823 | ||
| 5 | ASSY-SEAT BACK LH WH | 87600-E8822 | 7206 | 1 | |||||
| 5 | ASSY-SEAT BACK LH WH | 87600-N3302 | 7207 | 1 | No | No | 87600-E8822 | ||
| 5 | ASSY-SEAT BACK RH BL | 86600-E8820 | 7201 | 7206 | 1 | Yes | Yes | 86600-E8210 | |
| 5 | ASSY-SEAT BACK RH BL | 86600-N3300 | 7207 | 1 | No | No | 86600-E8820 | ||
| 5 | ASSY-SEAT BACK RH BR | 86600-E8821 | 7201 | 7206 | 1 | Yes | Yes | 86600-E8211 | |
| 5 | ASSY-SEAT BACK RH BR | 87600-E8821 | 7201 | 7206 | 1 | Yes | Yes | 86600-E8211 | |
| 5 | ASSY-SEAT BACK RH BR | 86600-N3301 | 7207 | 1 | No | No | 86600-E8821 | ||
| 5 | ASSY-SEAT BACK RH BR | 87600-N3301 | 7207 | 1 | No | No | 87600-E8821 | ||
| 5 | ASSY-SEAT BACK RH RE | 86600-E8823 | 7206 | 1 | |||||
| 5 | ASSY-SEAT BACK RH RE | 86600-N3303 | 7207 | 1 | No | No | 86600-E8823 | ||
| 5 | ASSY-SEAT BACK RH WH | 86600-E8822 | 7206 | 1 | |||||
| 5 | ASSY-SEAT BACK RH WH | 86600-N3302 | 7207 | 1 | No | No | 86600-E8822 | ||
| 6 | TRIM-BACK BEIGE | 86620-N3302 | 7207 | 2 | No | No | 86620-E8800 | ||
| 6 | TRIM-BACK BLACK | 86620-E4100 | 7104 | 2 | |||||
| 6 | TRIM-BACK BLACK | 86620-E8210 | 7105 | 7206 | 2 | Yes | Yes | 86620-E4100 | |
| 6 | TRIM-BACK BLACK | 86620-N3300 | 7207 | 2 | No | No | 86620-E8210 | ||
| 6 | TRIM-BACK BLUE | 86620-E4600 | 2 | ||||||
| 6 | TRIM-BACK BLUE | 86620-E8212 | 7201 | 7206 | 2 | Yes | Yes | 86620-E4600 | |
| 6 | TRIM-BACK BROWN | 86620-E4101 | 7104 | 2 | |||||
| 6 | TRIM-BACK BROWN | 86620-E8211 | 7105 | 7206 | 2 | Yes | Yes | 86620-E4101 | |
| 6 | TRIM-BACK BROWN | 86620-N3301 | 7207 | 2 | No | No | 86620-E8211 | ||
| 6 | TRIM-BACK RED | 86620-E8801 | 7206 | 2 | |||||
| 6 | TRIM-BACK RED | 86620-N3303 | 7207 | 2 | No | No | 86620-E8801 | ||
| 6 | TRIM-BACK WHITE | 86620-E8800 | 7206 | 2 | |||||
| 7 | ASSY-SLIDE WITH LEVE | 86500-E4100 | 1 | ||||||
| 8 | ASSY-SLIDE WITH LEVE | 87500-E4100 | 1 | ||||||
| 8 | ASSY-SLIDE WITH LEVE | 87500-N3400 | 1 | Yes | Yes | 87500-E4100 | |||
| 9 | ASSY-SLIDE LESS LEVE | 86550-E4100 | 2 | ||||||
| 9 | ASSY-SLIDE LESS LEVE | 86550-N3400 | 7207 | 2 | Yes | Yes | 86550-E4100 | ||
| 10 | NUT-HEX M8X1.25 (SLI | 08911-10810 | 8 | ||||||
| 11 | WASHER-SPRING (SLIDE | 08915-13810 | 8 | ||||||
| 12 | SPACER-SEAT | 86511-E4100 | 16 | ||||||
| 13 | SPACER-SEAT | 86510-E4100 | 8 | ||||||
| 14 | WASHER-SPRING (SEAT | 08915-13810 | 8 | ||||||
| 15 | NUT-HEX M8X1.25 (SEA | 08911-10810 | 8 | ||||||
| 16 | WASHER-PLAIN | 08915-43810 | 8 | ||||||
| 17 | ASSY-DEVICE RECLININ | 86470-E8800 | 1 | ||||||
| 17 | ASSY-DEVICE RECLININ | 86490-E8300 | OP | 1 | |||||
| 18 | COVER-RECLINING DEVI | 87404-E8700 | 1 | ||||||
| 19 | ASSY-DEVICE RECLININ | 87470-E8800 | 1 | ||||||
| 19 | ASSY-DEVICE RECLININ | 87490-E8300 | OP | 1 | |||||
| 20 | COVER-RECLINING DEVI | 87454-E8700 | 1 | ||||||
| 21 | ASSY-CONNECTOR RH | 86480-E8210 | 1 | ||||||
| 21 | ASSY-CONNECTOR RH | 86480-E8200 | OP | 1 | |||||
| 22 | ASSY-CONNECTOR LH | 87480-E8210 | 1 | ||||||
| 22 | ASSY-CONNECTOR LH | 87480-E8200 | OP | 1 | |||||
| 23 | SCREW-SPECIAL (DEVIC | 86902-U0201 | 8 | ||||||
| 24 | SCREW-SPECIAL (DEVIC | 86902-E8800 | 8 | ||||||
| 25 | WASHER-LOCK (DEVICE | 08916-43842 | 8 |
