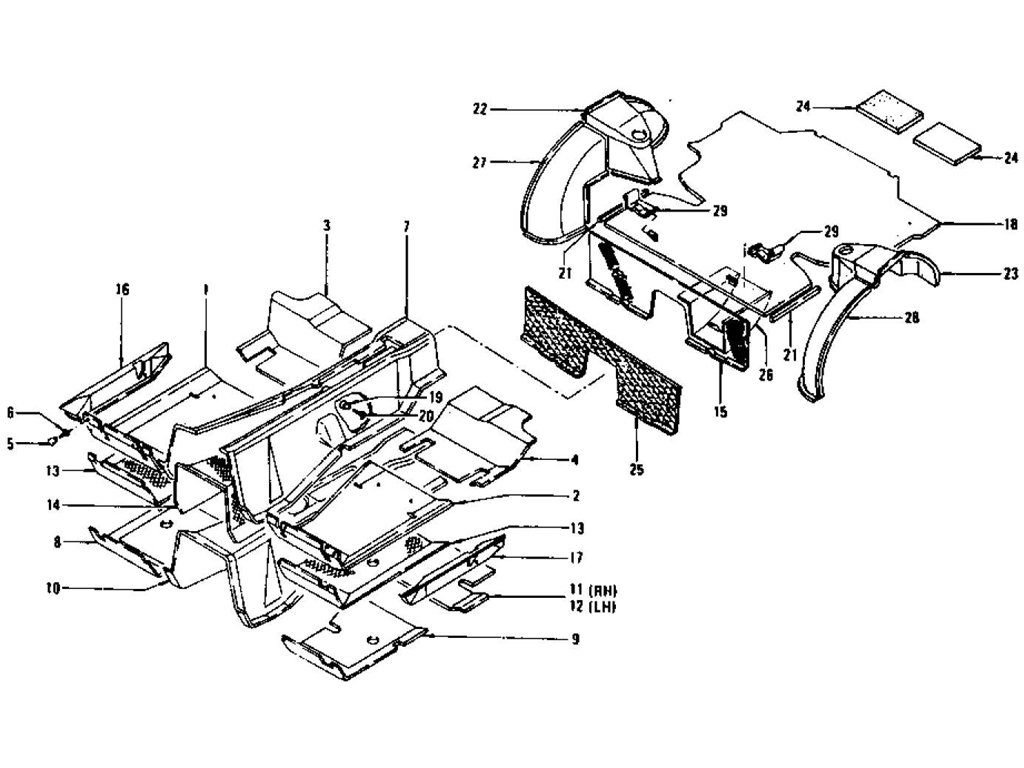

Floor Trim, Mat, Insulator & Rear Wheel House Trim (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TRIM FRONT FLOO | 74901-E4601 | 5910 | 7108 | 1 | ||||
| 1 | ASSY-TRIM FRONT FLOO | 74901-E8800 | 7109 | 7206 | 1 | No | No | 74901-E4601 | |
| 1 | ASSY-TRIM FRONT FLOO | 74901-N3300 | 7207 | 7301 | 1 | Yes | Yes | 74901-E8800 | |
| 1 | ASSY-TRIM FRONT FLOO | 74901-N3302 | 7302 | 1 | No | No | 74901-N3300 | ||
| 1 | ASSY-TRIM FRONT FLOO | 74901-E4600 | OP | 5910 | 1 | ||||
| 1 | ASSY-TRIM FRONT FLOO | 74901-E8801 | OP | 7111 | 7206 | 1 | |||
| 1 | ASSY-TRIM FRONT FLOO | 74901-E8802 | OP | 7201 | 1 | ||||
| 1 | ASSY-TRIM FRONT FLOO | 74901-N3302 | OP | 7207 | 1 | No | No | 74901-E8801 | |
| 2 | ASSY-TRIM FRONT FLOO | 74902-E4601 | 7108 | 1 | |||||
| 2 | ASSY-TRIM FRONT FLOO | 74902-E8800 | 7109 | 7206 | 1 | No | No | 74902-E4600 | |
| 2 | ASSY-TRIM FRONT FLOO | 74902-N3300 | 7207 | 7301 | 1 | Yes | Yes | 74902-E8800 | |
| 2 | ASSY-TRIM FRONT FLOO | 74902-N3304 | 7302 | 1 | No | No | 74902-N3300 | ||
| 2 | ASSY-TRIM FRONT FLOO | 74902-E4600 | OP | 7301 | 1 | ||||
| 2 | ASSY-TRIM FRONT FLOO | 74902-N3306 | OP | 7302 | 1 | No | No | 74902-E4600 | |
| 3 | ASSY-TRIM REAR FLOOR | 74907-E4601 | 7012 | 1 | |||||
| 3 | ASSY-TRIM REAR FLOOR | 74907-E8800 | 1 | Yes | Yes | 74907-E8300 | |||
| 3 | ASSY-TRIM REAR FLOOR | 74907-E8802 | 1 | ||||||
| 3 | ASSY-TRIM REAR FLOOR | 74907-E8300 | 7101 | 1 | No | No | 74907-E4601 | ||
| 3 | ASSY-TRIM REAR FLOOR | 74907-N3300 | 7207 | 1 | No | No | 74907-E8802 | ||
| 3 | ASSY-TRIM REAR FLOOR | 74907-E4600 | OP | 7012 | 1 | ||||
| 3 | ASSY-TRIM REAR FLOOR | 74907-E8201 | OP | 7101 | 1 | No | No | 74907-E4600 | |
| 4 | ASSY-TRIM REAR FLOOR | 74908-E4601 | 7012 | 1 | |||||
| 4 | ASSY-TRIM REAR FLOOR | 74908-E8800 | 1 | Yes | Yes | 74908-E8300 | |||
| 4 | ASSY-TRIM REAR FLOOR | 74908-E8300 | 7101 | 1 | No | No | 74908-E4601 | ||
| 4 | ASSY-TRIM REAR FLOOR | 74908-N3300 | 7207 | 1 | No | No | 74908-E8800 | ||
| 4 | ASSY-TRIM REAR FLOOR | 74908-E4600 | OP | 7012 | 1 | ||||
| 4 | ASSY-TRIM REAR FLOOR | 74908-E8201 | OP | 7101 | 1 | No | No | 74908-E4600 | |
| 5 | FASTENER-MALE | 97756-12900 | 7002 | 14 | |||||
| 5 | FASTENER-MALE | 97756-E4101 | 7003 | 14 | No | No | 97756-12900 | ||
| 6 | CREW-TAPPING M3.5 | 08520-71212 | 14 | ||||||
| 7 | MAT-TUNNEL FRONT FLO | 74909-E4600 | 5910 | 7206 | 1 | ||||
| 7 | MAT-TUNNEL FRONT FLO | 74909-E8800 | 7109 | 7206 | 1 | ||||
| 7 | MAT-TUNNEL FRONT FLO | 74909-E8801 | 7109 | 7206 | 1 | ||||
| 7 | MAT-TUNNEL FRONT FLO | 74909-N3300 | 7207 | 1 | No | No | 74909-E4600 | ||
| 7 | MAT-TUNNEL FRONT FLO | 74909-N3302 | 7207 | 1 | No | No | 74909-E8800 | ||
| 7 | MAT-TUNNEL FRONT FLO | 74909-N3303 | 7207 | 1 | No | No | 74909-E8801 | ||
| 7 | MAT-TUNNEL FRONT FLO | 74909-N3304 | 7207 | 1 | |||||
| 7 | MAT-TUNNEL FRONT FLO | 74909-N3301 | /MMI | 1 | |||||
| 8 | INSULATOR-FRONT FLOO | 74910-E4100 | 1 | ||||||
| 8 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74910-E4100 | |||
| 8 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74910-E4125 | |||
| 8 | SET-INSULATOR REAR F | 74910-E4125 | 1 | ||||||
| 9 | INSULATOR-FRONT FLOO | 74911-E4100 | 1 | ||||||
| 9 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74911-E4100 | |||
| 10 | INSULATOR-FRONT FLOO | 74912-E4100 | 1 | ||||||
| 10 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74912-E4100 | |||
| 11 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74913-E4100 | |||
| 11 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74913-E4125 | |||
| 11 | INSULATOR-FRONT REAR | 74913-E4100 | 1 | ||||||
| 11 | SET-INSULATOR FRONT | 74913-E4125 | 1 | ||||||
| 12 | INSULATOR-FRONT FLOO | 74914-E4100 | 1 | ||||||
| 12 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74914-E4100 | |||
| 12 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74915-E4625 | |||
| 12 | INSULATOR-FRONT FLOO | G5930-89902 | 0 | Yes | Yes | 74915-E8200 | |||
| 12 | SET-INSULATOR REAR F | 74915-E4625 | 7012 | 1 | |||||
| 12 | SET-INSULATOR REAR F | 74915-E8200 | 7101 | 1 | No | No | 74915-E4625 | ||
| 13 | JUTE-FRONT FLOOR FRO | 74920-E4100 | 1 | ||||||
| 13 | SET-INSULATOR FRONT | 74920-E4125 | 1 | ||||||
| 14 | JUTE-FRONT FLOOR TUN | 74925-E4100 | 1 | ||||||
| 14 | SET-JUTE FRONT FLOOR | 74927-E4125 | 7012 | 1 | |||||
| 14 | SET-JUTE FRONT FLOOR | 74927-E8200 | 7101 | 1 | No | No | 74927-E4125 | ||
| 15 | JUTE-FRONT FLOOR REA | 74922-E4100 | 7012 | 1 | |||||
| 15 | JUTE-FRONT FLOOR REA | 74922-E8200 | 7101 | 1 | No | No | 74922-E4100 | ||
| 16 | TRIM-SILL INNER RH B | 74930-E4601 | 7206 | 1 | |||||
| 16 | TRIM-SILL INNER RH B | 74930-E4100 | 7207 | 1 | No | No | 74930-E4601 | ||
| 16 | TRIM-SILL INNER RH B | 74930-E4100 | OP | 1 | |||||
| 17 | TRIM-SILL INNER LH B | 74931-E4601 | 7206 | 1 | |||||
| 17 | TRIM-SILL INNER LH B | 74931-E4600 | 7207 | 1 | No | No | 74931-E4601 | ||
| 17 | TRIM-SILL INNER LH B | 74931-E4100 | OP | 1 | |||||
| 18 | ASSY-MAT REAR FLOOR | 74950-E4600 | 7012 | 1 | |||||
| 18 | ASSY-MAT REAR FLOOR | 74950-E8800 | 1 | Yes | Yes | 74950-E8300 | |||
| 18 | ASSY-MAT REAR FLOOR | 74950-N3300 | 7207 | 1 | No | No | 74950-E8800 | ||
| 18 | ASSY-MAT REAR FLOOR | 74950-E4100 | OP | 7012 | 1 | ||||
| 18 | ASSY-MAT REAR FLOOR | 74950-E8201 | OP | 7101 | 1 | No | No | 74950-E4100 | |
| 18 | ASSY-MATREAR FLOOR B | 74950-E8300 | 7101 | 1 | No | No | 74950-E4600 | ||
| 19 | FASTENER-MALE | 97756-12900 | 7002 | 4 | |||||
| 19 | FASTENER-MALE | 97756-E4101 | 7003 | 4 | No | No | 97756-12900 | ||
| 20 | SCREW-TAPPING | 08530-71210 | 4 | ||||||
| 21 | RUBBER-SEAL REAR FLO | 74945-E4100 | 2 | ||||||
| 22 | TRIM-REAR WHEEL HOUS | 76972-E4100 | 7206 | 1 | |||||
| 22 | TRIM-REAR WHEEL HOUS | 76972-E4101 | 7206 | 1 | |||||
| 22 | TRIM-REAR WHEEL HOUS | 76972-E4102 | 1 | ||||||
| 22 | TRIM-REAR WHEEL HOUS | 76972-E8800 | 7206 | 1 | |||||
| 22 | TRIM-REAR WHEEL HOUS | 76972-E8801 | 7206 | 1 | |||||
| 22 | TRIM-REAR WHEEL HOUS | 76972-N3300 | 7207 | 1 | Yes | Yes | 76972-E4100 | ||
| 22 | TRIM-REAR WHEEL HOUS | 76972-N3301 | 7207 | 1 | Yes | Yes | 76972-E4101 | ||
| 22 | TRIM-REAR WHEEL HOUS | 76972-N3302 | 7207 | 1 | Yes | Yes | 76972-E8800 | ||
| 22 | TRIM-REAR WHEEL HOUS | 76972-N3303 | 7207 | 1 | No | No | 76972-E8801 | ||
| 22 | TRIM-REAR WHEEL HOUS | 76972-N3304 | 7207 | 1 | Yes | Yes | 76972-N3303 | ||
| 23 | TRIM-REAR WHEEL HOUS | 76973-E4100 | 7206 | 1 | |||||
| 23 | TRIM-REAR WHEEL HOUS | 76973-E4101 | 7206 | 1 | |||||
| 23 | TRIM-REAR WHEEL HOUS | 76973-E4102 | 1 | ||||||
| 23 | TRIM-REAR WHEEL HOUS | 76973-E8800 | 7206 | 1 | |||||
| 23 | TRIM-REAR WHEEL HOUS | 76973-E8801 | 7206 | 1 | |||||
| 23 | TRIM-REAR WHEEL HOUS | 76973-N3303 | 1 | ||||||
| 23 | TRIM-REAR WHEEL HOUS | 76973-N3300 | 7207 | 1 | Yes | Yes | 76973-E4100 | ||
| 23 | TRIM-REAR WHEEL HOUS | 76973-N3301 | 7207 | 1 | Yes | Yes | 76973-E4101 | ||
| 23 | TRIM-REAR WHEEL HOUS | 76973-N3302 | 7207 | 1 | Yes | Yes | 76973-E8800 | ||
| 23 | TRIM-REAR WHEEL HOUS | 76973-N3304 | 7207 | 1 | Yes | Yes | 76973-N3303 | ||
| 24 | ASSY-FASTENER REAR F | 74956-E4100 | 2 | ||||||
| 25 | TRIM-RISER REAR FLOO | 74992-N3300 | 7207 | 1 | |||||
| 25 | TRIM-RISER REAR FLOO | 74992-N3301 | 7207 | 1 | |||||
| 25 | TRIM-RISER REAR FLOO | 74992-N3302 | 7207 | 1 | |||||
| 25 | TRIM-RISER REAR FLOO | 74992-N3304 | 7207 | 1 | |||||
| 26 | TRIM-REAR TOOL BOX | 74948-N3300 | 7207 | 2 | No | No | 74949-E8200 | ||
| 26 | TRIM-TOOL BOX | 74949-E8200 | 7206 | 1 | |||||
| 26 | TRIM-TOOL BOX | 74948-E8200 | 7206 | 1 | |||||
| 27 | TRIM-REAR WHEEL HOUS | 76970-E4100 | 7206 | 1 | |||||
| 27 | TRIM-REAR WHEEL HOUS | 76970-E4101 | 7206 | 1 | |||||
| 27 | TRIM-REAR WHEEL HOUS | 76970-E4102 | 1 | ||||||
| 27 | TRIM-REAR WHEEL HOUS | 76970-E8800 | 7206 | 1 | |||||
| 27 | TRIM-REAR WHEEL HOUS | 76970-E8801 | 7206 | 1 | |||||
| 27 | TRIM-REAR WHEEL HOUS | 76970-N3300 | 7207 | 1 | No | No | 76970-E4100 | ||
| 27 | TRIM-REAR WHEEL HOUS | 76970-N3301 | 7207 | 1 | No | No | 76970-E4101 | ||
| 27 | TRIM-REAR WHEEL HOUS | 76970-N3302 | 7207 | 1 | No | No | 76970-E8800 | ||
| 27 | TRIM-REAR WHEEL HOUS | 76970-N3303 | 7207 | 1 | No | No | 76970-E8801 | ||
| 27 | TRIM-REAR WHEEL HOUS | 76970-N3304 | 7207 | 1 | Yes | Yes | 76970-N3303 | ||
| 28 | TRIM-REAR WHEEL HOUS | 76971-E4100 | 7206 | 1 | |||||
| 28 | TRIM-REAR WHEEL HOUS | 76971-E4101 | 7206 | 1 | |||||
| 28 | TRIM-REAR WHEEL HOUS | 76971-E4102 | 1 | ||||||
| 28 | TRIM-REAR WHEEL HOUS | 76971-E8800 | 7206 | 1 | |||||
| 28 | TRIM-REAR WHEEL HOUS | 76971-E8801 | 7206 | 1 | |||||
| 28 | TRIM-REAR WHEEL HOUS | 76971-N3300 | 7207 | 1 | No | No | 74970-E4100 | ||
| 28 | TRIM-REAR WHEEL HOUS | 76971-N3301 | 7207 | 1 | No | No | 74971-E4101 | ||
| 28 | TRIM-REAR WHEEL HOUS | 76971-N3302 | 7207 | 1 | No | No | 76971-E8800 | ||
| 28 | TRIM-REAR WHEEL HOUS | 76971-N3303 | 7207 | 1 | No | No | 76971-E8801 | ||
| 28 | TRIM-REAR WHEEL HOUS | 76971-N3304 | 7207 | 1 | Yes | Yes | 76971-N3303 | ||
| 29 | CLIP-SPRING FRONT FL | 74995-E4100 | 4 |
