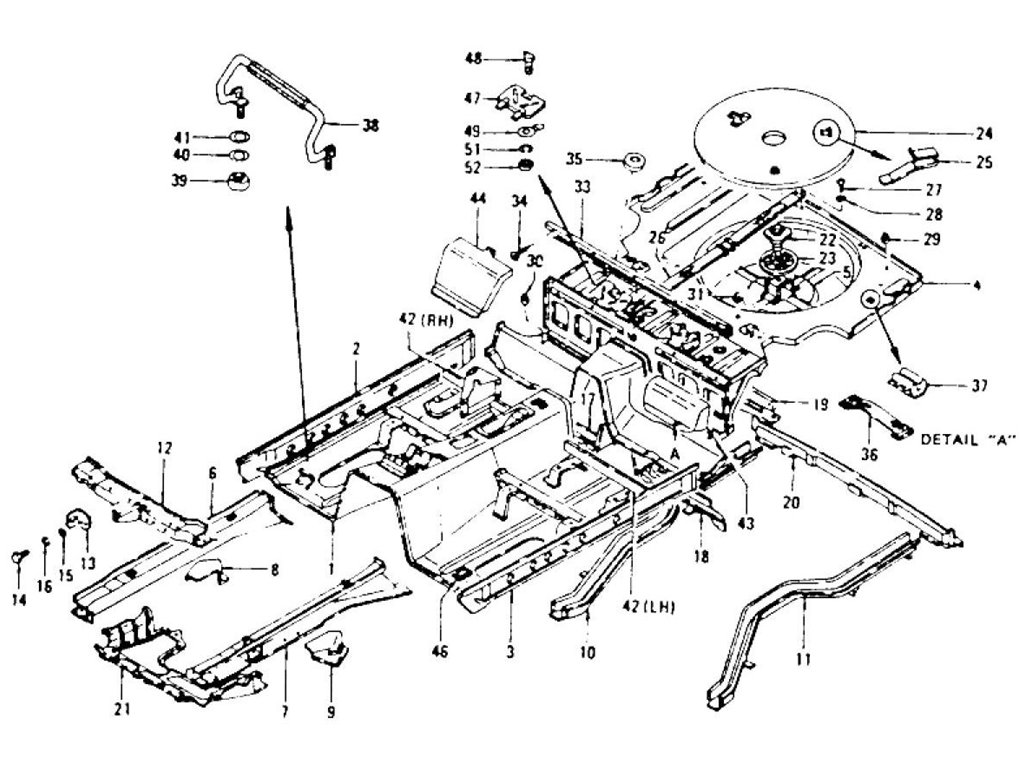

Floor Panel & Spare Tire Cover (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-FLOOR FRONT | 74300-E4600 | 1 | ||||||
| 1 | ASSY-FLOOR FRONT | 74300-N3350 | 7207 | 1 | Yes | Yes | 74300-E8852 | ||
| 1 | ASSY-FLOOR FRONT | 74300-E8804 | AUTOMATIC | 1 | Yes | Yes | 74300-E4600 | ||
| 1 | ASSY-FLOOR FRONT | 74300-E8852 | AUTOMATIC | 7206 | 1 | Yes | Yes | 74300-E8804 | |
| 1 | ASSY-FLOOR FRONT | 74300-E8800 | MANUAL | 1 | Yes | Yes | 74300-E4600 | ||
| 1 | ASSY-FLOOR FRONT | 74300-N3350 | MANUAL | 7206 | 1 | Yes | Yes | 74300-E8800 | |
| 2 | ASSY-PANEL SILL INNE | 76410-E4100 | 1 | ||||||
| 2 | ASSY-PANEL SILL INNE | 76410-E8800 | 7207 | 1 | Yes | Yes | 76410-E4100 | ||
| 3 | ASSY-PANEL SILL INNE | 76411-E4600 | 1 | ||||||
| 4 | ASSY-PANEL REAR FLOO | 74500-N3350 | 7207 | 7307 | 1 | Yes | Yes | 74500-E8853 | |
| 4 | ASSY-PANEL REAR FLOO | 74500-N4150 | 7308 | 1 | No | No | 74500-N3350 | ||
| 4 | ASSY-PANEL REAR FLOO | 74500-N3355 | MANUAL | 7207 | 7307 | 1 | Yes | Yes | 74500-N3350 |
| 4 | ASSY-REAR FLOOR | 74500-E4650 | 7012 | 1 | |||||
| 4 | ASSY-REAR FLOOR | 74500-E8851 | 1 | Yes | Yes | 74500-E8350 | |||
| 4 | ASSY-REAR FLOOR | 74500-E8853 | 7206 | 1 | Yes | Yes | 74500-E8851 | ||
| 4 | ASSY-REAR FLOOR | 74500-E8350 | 7101 | 1 | No | No | 74500-E4650 | ||
| 5 | ASSY-HOUSING SPARE T | 74540-E4100 | 1 | ||||||
| 5 | ASSY-HOUSING SPARE T | 74540-N3400 | MANUAL | 1 | Yes | Yes | 74540-E4100 | ||
| 6 | ASSY-MEMBER SIDE FRO | 74802-E4100 | 1 | ||||||
| 6 | ASSY-MEMBER SIDE FRO | 74802-N3350 | 7207 | 1 | No | No | 74802-E4700 | ||
| 6 | ASSY-MEMBER SIDE FRO | 74802-E4150 | AUTOMATIC | 7206 | 1 | ||||
| 6 | ASSY-MEMBER SIDE FRO | 74802-E4150 | MANUAL | 7206 | 1 | Yes | Yes | 74802-E4100 | |
| 6 | ASSY-MEMBER SIDE FRO | 74802-N3050 | MANUAL | 7207 | 1 | No | No | 74802-E4150 | |
| 7 | ASSY-MEMBER SIDE FRO | 74803-E4100 | 1 | ||||||
| 7 | ASSY-MEMBER SIDE FRO | 74803-E4150 | 7206 | 1 | Yes | Yes | 74803-E4100 | ||
| 7 | ASSY-MEMBER SIDE FRO | 74803-N3050 | 7207 | 1 | No | No | 74803-E4150 | ||
| 8 | ASSY-BRACKET COMPRES | 74830-E4100 | 1 | ||||||
| 9 | ASSY-BRACKET COMPRES | 74831-E4100 | 1 | ||||||
| 10 | ASSY-MEMBER SIDE REA | 74842-E4100 | 1 | ||||||
| 10 | ASSY-MEMBER SIDE REA | G4842-E4100 | 1 | Yes | Yes | 74842-E4100 | |||
| 11 | ASSY-MEMBER SIDE REA | 74843-E4100 | 1 | ||||||
| 11 | ASSY-MEMBER SIDE REA | G4843-E4100 | 1 | Yes | Yes | 74843-E4100 | |||
| 12 | ASSY-MEMBER CROSS FR | 74820-E4200 | 1 | ||||||
| 12 | ASSY-MEMBER CROSS FR | 74820-E4201 | 7206 | 1 | Yes | Yes | 74820-E4200 | ||
| 12 | ASSY-MEMBER CROSS FR | 74820-N3000 | 7207 | 1 | No | No | 74820-E4201 | ||
| 12 | ASSY-MEMBER CROSS FR | 74820-N3200 | 7207 | 1 | Yes | Yes | 74820-N3000 | ||
| 13 | BRACKET-TRACTION | 74823-E4101 | 1 | ||||||
| 14 | BOLT-HEX M8X1.25 | 08110-82010 | 2 | ||||||
| 15 | WASHER-PLAIN M8 | 08915-43810 | 2 | ||||||
| 16 | WASHER-LOCK M8 | 08915-13810 | 2 | ||||||
| 17 | ASSY-MEMBER CROSS DI | 74870-E4100 | 1 | ||||||
| 17 | ASSY-MEMBER CROSS DI | 74870-E8800 | 1 | Yes | Yes | 74870-E4100 | |||
| 18 | ASSY-MEMBER CROSS DI | 74871-E4100 | 1 | ||||||
| 18 | ASSY-MEMBER CROSS DI | 74871-E8800 | 1 | Yes | Yes | 74871-E4100 | |||
| 19 | ASSY-MEMBER CROSS DI | 74880-E4100 | 1 | ||||||
| 20 | ASSY-MEMBER CROSS RE | 74890-E4100 | 1 | ||||||
| 21 | SPLASH-BOARD ENGINE | 74810-E4100 | 1 | ||||||
| 22 | ASSY-CLAMP SPARE TIR | 57210-14600 | 7012 | 1 | |||||
| 22 | ASSY-CLAMP SPARE TIR | 57210-E4102 | 7101 | 1 | No | No | 57210-14600 | ||
| 23 | PLATE-CLAMP SPARE TI | 57216-10600 | 7206 | 1 | |||||
| 23 | PLATE-CLAMP SPARE TI | 74631-N3000 | 7207 | 1 | Yes | Yes | 57216-10600 | ||
| 24 | BOAD-COVER SPARE TIR | 74971-E4100 | 1 | ||||||
| 25 | STOPPER-COVER SPARE | 74973-E4100 | 3 | ||||||
| 26 | ASSY-BAND PARCEL | 96850-E4100 | 2 | ||||||
| 27 | SCREW-MACHINE | 08310-61000 | 8 | ||||||
| 27 | SCREW-MACHINE | 08310-61010 | 8 | Yes | Yes | 08310-61000 | |||
| 27 | SCREW-MACHINE | 08310-61012 | 8 | Yes | Yes | 08310-61010 | |||
| 28 | WASHER-SPRING LOCK | 08915-13610 | 4 | ||||||
| 29 | PLUG-RUBBER | 77700-89914 | 9 | ||||||
| 30 | RUBBER-GROMMET | 74942-10900 | 4 | ||||||
| 31 | RUBBER-GROMMET | 67831-32200 | 4 | ||||||
| 32 | RUBBER-GROMMET | 74942-N3000 | 4 | ||||||
| 33 | MOULDING-LUGGAG STOO | 74965-E4100 | 7108 | 1 | |||||
| 33 | MOULDING-LUGGAG STOO | 74965-N4600 | 1 | Yes | Yes | 74965-E8200 | |||
| 33 | MOULDING-LUGGAG STOO | 74965-E8200 | 7109 | 1 | No | No | 74965-E4100 | ||
| 34 | SCREW-TAPPING M3.5 | 08530-71020 | 5 | ||||||
| 35 | CAP-HOUSING REAR SUS | 74986-E4100 | 2 | ||||||
| 36 | BELT-TIRE STOPPER | 99619-E4100 | 1 | ||||||
| 36 | BELT-TIRE STOPPER | 99619-E4101 | 1 | Yes | Yes | 99619-E4100 | |||
| 37 | RUBBER-JACK HANDLE H | 99613-22900 | 2 | ||||||
| 38 | ASSY-FOOT REST ASSIS | 75500-E4100 | OP | 1 | |||||
| 39 | NUT-HEX | 08911-10810 | OP | 2 | |||||
| 40 | WASHER-SPRING | 08915-13810 | OP | 2 | |||||
| 41 | WASHER-PLAIN | 08915-43810 | OP | 2 | |||||
| 42 | MEMBER-SEAT MOUNTING | 74338-E4100 | 1 | ||||||
| 42 | MEMBER-SEAT MOUNTING | 74339-E4100 | 1 | ||||||
| 43 | ASSY-COVER REAR FLOO | 74675-E4101 | 1 | ||||||
| 44 | ASSY-COVER REAR FLOO | 74670-E4101 | 1 | ||||||
| 45 | KNOB-LID OIL | 68822-G0302 | 1 | ||||||
| 46 | PAD-FOOTREST DRIVER | 67145-25500 | 1 | ||||||
| 47 | ASSY-LID TOOL BOX | 74656-E8200 | 2 | ||||||
| 48 | ASSY-BOLT LID TOOL B | 74665-E8200 | 2 | ||||||
| 49 | PLATE-LOOK LID TOOL | 74668-E8200 | 2 | ||||||
| 50 | WASHER-PLASTIC | 80675-18000 | 2 | ||||||
| 51 | WASHER-SPRING LOCK | 08915-43800 | 2 | ||||||
| 51 | WASHER-SPRING LOCK | 08915-43810 | 2 | Yes | Yes | 08915-43800 | |||
| 52 | NUT-HEX | 08911-10800 | 2 | ||||||
| 52 | NUT-HEX | 08911-10810 | 2 | Yes | Yes | 08911-10800 |
