Search Item:Key: Part Name: Part Number:

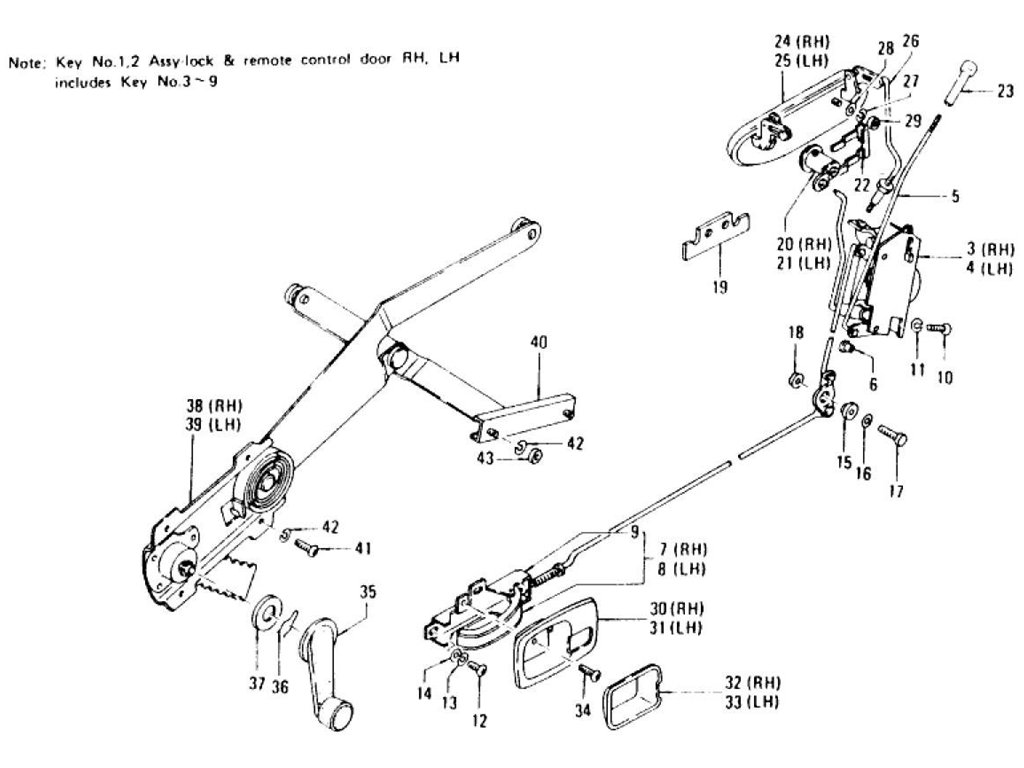

Door Lock, Window Regulator & Door Handle (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-LOCK & REMOTE C | 80500-E4100 | 7206 | 1 | |||||
| 2 | ASSY-LOCK & REMOTE C | 80501-E4100 | 7206 | 1 | |||||
| 3 | ASSY-LOCK DOOR RH | 80500-E4100 | 1 | Yes | Yes | 80502-E4100 | |||
| 3 | ASSY-LOCK DOOR RH | 80502-E4100 | 1 | ||||||
| 4 | ASSY-LOCK DOOR LH | 80501-E4100 | 1 | Yes | Yes | 80503-E4100 | |||
| 4 | ASSY-LOCK DOOR LH | 80503-E4100 | 1 | ||||||
| 5 | ROD-KNOB DOOR LOCK | 80510-E4100 | 1 | ||||||
| 6 | HOLDER-ROD KNOB | H0510-21001 | 2 | ||||||
| 7 | ASSY-REMOTE CONTROL | 80504-E4100 | 7206 | 1 | |||||
| 7 | ASSY-REMOTE CONTROL | 80504-N3000 | 7207 | 1 | No | No | 80504-E4100 | ||
| 8 | ASSY-REMOTE CONTROL | 80505-E4100 | 7206 | 1 | |||||
| 8 | ASSY-REMOTE CONTROL | 80505-N3000 | 7207 | 1 | No | No | 80505-E4100 | ||
| 9 | ASSY-INSIDE HANDLE D | 80520-E4100 | OP | 1 | |||||
| 10 | SCREW-MACHINE M6X1.0 | 08320-61010 | 6 | ||||||
| 10 | SCREW-MACHINE M6X1.0 | 08320-61012 | 6 | Yes | Yes | 08320-61010 | |||
| 10 | SCREW-MACHINE M6X1.3 | 08320-61219 | 6 | ||||||
| 11 | WASHER-LOCK FIX LOCK | 08916-43610 | 6 | ||||||
| 12 | SCREW-MACHINE M6X1.0 | 08310-61010 | 4 | ||||||
| 12 | SCREW-MACHINE M6X1.0 | 08310-61012 | 4 | Yes | Yes | 08310-61010 | |||
| 12 | SCREW-MACHINE M6X1.3 | 08310-61226 | 4 | ||||||
| 13 | WASHER-SPRING FIX RE | 08915-13610 | 4 | ||||||
| 14 | WASHER-PLAIN FIX REM | 08915-43610 | 4 | ||||||
| 15 | COLLAR-BELL CRANK | 80515-E4100 | 7206 | 4 | Yes | Yes | 82515-78500 | ||
| 15 | COLLAR-BELL CRANK | 82515-78500 | 4 | ||||||
| 15 | COLLAR-BELL CRANK | 80515-N3000 | 7207 | 4 | No | No | 80515-E4100 | ||
| 16 | WASHER-BELL CRANK | 82516-78500 | 2 | ||||||
| 17 | BOLT-HEX FLANGE HEAD | 08160-61210 | 2 | ||||||
| 17 | BOLT-HEX FLANGE HEAD | 08363-61214 | 2 | ||||||
| 18 | NUT-FLANGE BELL CRAN | 01221-00033 | 2 | ||||||
| 19 | NUT-FLANGE BELL CRAN | 80680-B0700 | 2 | ||||||
| 20 | CYLINDER-LOCK DOOR R | 80600-E8200 | 1 | ||||||
| 20 | CYLINDER-LOCK DOOR R | 80600-E8201 | 1 | 80600-E8200 | |||||
| 21 | CYLINDER-LOCK DOOR L | 80601-E8200 | 1 | ||||||
| 21 | CYLINDER-LOCK DOOR L | 80601-E8201 | 1 | 80601-E8200 | |||||
| 22 | CLIP-RETAINING CYLIN | 80590-10601 | 2 | ||||||
| 23 | KNOB-DOOR LOCK | 80595-21003 | 2 | ||||||
| 23 | KNOB-DOOR LOCK | 80595-N1600 | 2 | Yes | Yes | 80595-21003 | |||
| 24 | ASSY-HANDLE DOOR OUT | 80605-E4100 | 1 | ||||||
| 25 | ASSY-HANDLE DOOR OUT | 80606-E4100 | 1 | ||||||
| 26 | ASSY-ROD HANDLE DOOR | 80698-E4120 | 1 | ||||||
| 26 | ASSY-ROR HANDLE DOOR | 80699-E4120 | 1 | ||||||
| 27 | WASHER-SPRING | 08915-13510 | 4 | ||||||
| 28 | WASHER-PLAIN | 08915-43510 | 4 | ||||||
| 29 | NUT-HEX | 08911-10510 | 4 | ||||||
| 30 | ESCUTCHEON-REMOTE CO | 80512-E4100 | 1 | ||||||
| 31 | ESCUTCHEON-REMOTE CO | 80513-E4100 | 1 | ||||||
| 32 | COVER-ESCUTCHEON RH | 80517-E0101 | 1 | ||||||
| 33 | COVER-ESCUTCHEON LH | 80518-E0101 | 1 | ||||||
| 34 | SCREW-MACHINE | 08320-40812 | 2 | ||||||
| 35 | ASSY-HANDLE DOOR WIN | 80760-A0600 | 2 | ||||||
| 36 | 54229-0201P | 80673-A0600 | 2 | ||||||
| 37 | WASHER-SEATING HANDL | 80763-A0600 | 2 | ||||||
| 38 | ASSY-REGULATOR DOOR | 80700-E4100 | 1 | ||||||
| 38 | ASSY-REGULATOR DOOR | 80700-N3001 | 1 | Yes | Yes | 80700-E4100 | |||
| 39 | ASSY-REGULATOR DOOR | 80701-E4100 | 1 | ||||||
| 39 | ASSY-REGULATOR DOOR | 80701-N3001 | 1 | Yes | Yes | 80701-E4100 | |||
| 40 | ASSY-GUIDE DOOR WIND | 80710-21000 | 2 | ||||||
| 41 | SCREW-MACHINE M6X1.0 | 08310-61010 | 8 | ||||||
| 41 | SCREW-MACHINE M6X1.0 | 08310-61012 | 8 | Yes | Yes | 08310-61010 | |||
| 42 | WASHER-SPRING | 08915-13610 | 12 | ||||||
| 43 | NUT-HEX M6X1.0 | 08911-10610 | 4 |
